RIDGID-Plastic-Pipe-Cutter-156-P

RIDGID_plastic_pipe_cutter_31637
U.S.A.
RIDGID
156-P

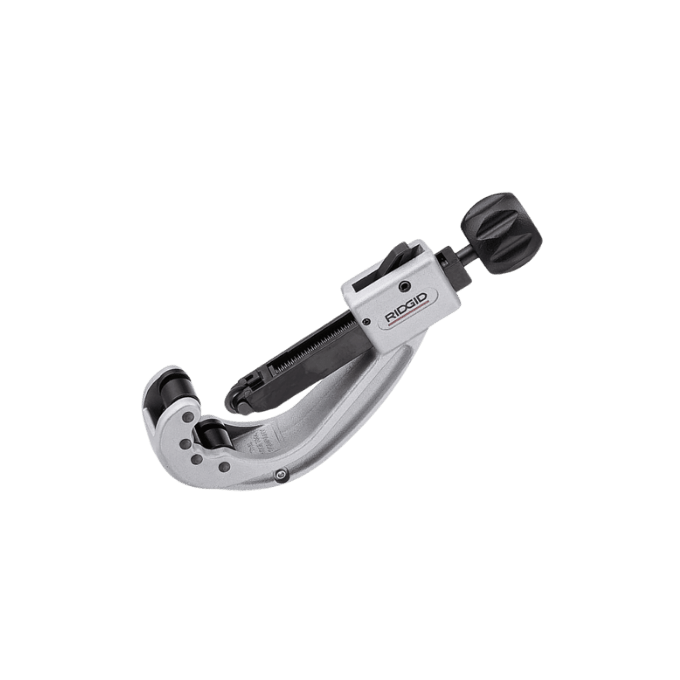

Plastic Pipe Cutter

Cutting range 1/2"–6" (10–160 mm)｜Suitable for PVC, ABS, PE, PB, PP, and other plastic pipes｜Fast feed｜I-beam structure｜Hardened wear surfaces.
Simple operation with smooth and stable cutting performance for various plastic pipe cutting applications.
Product Features
  • Multi-Plastic Pipe Application: Suitable for cutting PVC, ABS, PE, PB, PP, and related plastic pipes.
  • Fast Feed Design: Improves cutting efficiency for quick jobsite work.
  • I-Beam Body Structure: Provides stable support for reliable cutting performance.
  • Hardened Wear Surfaces: Improves durability for long-term use.
  • Thrust Bearing Roller Assembly: Makes operation smoother and reduces cutting effort.
  • Folding Reamer: Models 151 and 152 include a folding reamer for internal deburring.
Add to Inquiry
Tags
Show
＃6" ＃1/2" ＃Plastic Pipe

Model Specifications

SKU
Model
Description
Weight
Remarks
31637
151-P
For 1/8"–1 1/4" (10–40 mm)
0.4 kg
Cutting Wheel E2155
31647
152-P
For 1/4"–2" (10–63 mm)
0.9 kg
Cutting Wheel E2155
36592
153-P
For 1"–3" (25–75 mm)
0.9 kg
Cutting Wheel E2155
31657
154-P
For 1 1/2"–4" (50–110 mm)
1.7 kg
Cutting Wheel E2156
31667
156-P
For 4"–6" (110–160 mm)
2.2 kg
Cutting Wheel E2157

Product Details

Technical Data
Product Specifications
The quick-feed plastic pipe cutter is suitable for cutting 1/2"–6" / 10–160 mm PVC, ABS, PE, PB, PP, and similar plastic pipes. It features an I-beam structure, hardened wear surfaces, and thrust-bearing slide assemblies for easy operation, making it suitable for installation, repair, and on-site piping work.
Cutting Capacity
1/2"–6" / 10–160 mm
Applicable Pipes
PVC, ABS, PE, PB, PP and similar plastic pipes
Feed Design
Quick-feed design
Structure Design
I-beam structure, hardened wear surfaces, thrust-bearing slide assemblies
Additional Function
Models 151 and 152 include a fold-away reamer
Main Use
Plastic pipe cutting, pipe-end preparation, installation, and repair work
Quick Feed and Durable Structure for Plastic Pipes up to 160 mm

The I-beam structure and bearing slide assemblies improve operating stability and service life, making the cutter suitable for frequent plastic pipe cutting on site.

Blade Options
Blade Options
Select the proper blade according to pipe material, wall thickness, and compatible cutter model. Different blades are available for PE / PB / PP, PVC / ABS, soft rubber hose, and thin-wall PVC pipe.
For PE, PB, PP Plastic Pipes
74720 E-2155

Wall thickness ≤ 7.2 mm, for 151P–153P.

74730 E-2156

Wall thickness ≤ 10.4 mm, for 154P–156P.

74735 E-2157

Wall thickness ≤ 12.7 mm, for 154P–156P.

83235 E-2880

Wall thickness ≤ 18.9 mm, for 156P.

For PVC, ABS Plastic Pipes
33195 E-5272

Wall thickness ≤ 7.2 mm, for 151P–153P.

33180 E-5299

Wall thickness ≤ 10.4 mm, for 154P–156P.

33210 E-702

Wall thickness ≤ 12.7 mm, for 154P–156P.

For Soft Rubber Hose
3320 E-1740

Wall thickness ≤ 3.7 mm, for 150P–153P.

For Thin-Wall PVC Plastic Pipe
88260 E10279

Wall thickness ≤ 4.6 mm, for 154P–156P.

Applications
Applications
Suitable for cutting PVC, ABS, PE, PB, PP, and similar plastic pipes, especially for pipe installation, repair, retrofit, and on-site piping work.
Plastic Pipe Cutting

Suitable for cutting various 10–160 mm plastic pipes, including PVC, ABS, PE, PB, and PP materials.

Installation and Piping

Can be used for pipe cutting and pipe-end preparation before installation, improving work efficiency.

Repair and Retrofit

Suitable for existing pipe repair, partial replacement, and on-site retrofit work.

Long-Duration Jobsite Work

Durable structure and easy operation make it suitable for frequent use on construction and engineering jobsites.
