REED-Large-Diameter-Pipe-Cutter-PLAS-series

REED_large_diameter_pipe_cutter_04470
U.S.A.
REED
PLAS系列

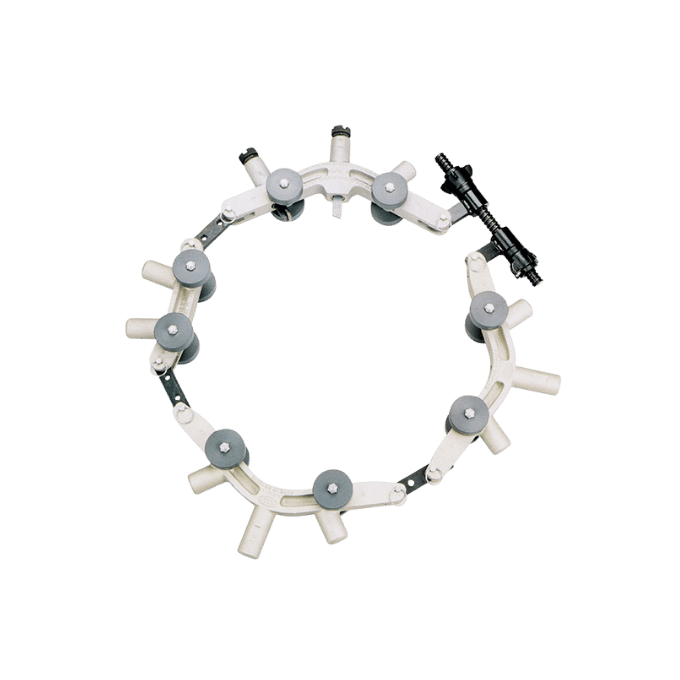

Large Diameter Pipe Cutter

Suitable for 6"–28" (160–800 mm) large-diameter PVC and PE pipes｜Carbide-tipped blade｜Outer-edge roller guide｜15° beveled cut.
Delivers stable and accurate cutting, ideal for underground piping, trench work, industrial installation, and large pipe maintenance.
Product Features
  • Large-Diameter Pipe Application: Cuts 160–800 mm PVC and PE pipes for large-scale piping projects.
  • Efficient Thick-Wall Cutting: Handles wall thickness up to 50 mm with stable cutting performance.
  • Precise Parallel Guidance: Outer-edge rollers keep the cutter aligned with the pipe for accurate cuts.
  • Carbide-Tipped Blade: Durable and wear-resistant for demanding jobsite use.
  • Confined-Space Application: Suitable for underground pipes, trenches, and restricted working areas.
  • 15° Beveled Cut: Creates a beveled pipe edge to support better sealing and joining quality.
Add to Inquiry
Tags
Show
＃28" ＃6" ＃Plastic Pipe

Model Specifications

SKU
Model
Description
Weight
Remarks
04470
PLAS1
For 6"–12" (160–335 mm)
24 kg
Uses sections A, B, C
04475
PLAS2
For 14"–18" (355–500 mm)
26 kg
Uses sections B, C (2), D
04480
PLAS3
For 14"–24" (355–630 mm)
28 kg
Uses sections B, C (3), D
04485
PLAS4
For 14"–28" (355–800 mm)
31 kg
Uses sections B, C (4), D

Product Details

Technical Data
Product Specifications
This large-diameter plastic pipe cutter is suitable for cutting 6"–28" / 160–800 mm PVC, PE, and similar plastic pipes, especially for large pipe work in trenches, ground-level areas, or confined spaces. It uses durable carbide-tipped blades and can cut pipe walls up to 2" / 50 mm thick. Outer rollers keep the cutter parallel to the pipe, improving cutting accuracy.
Cutting Capacity
6"–28" / 160–800 mm
Applicable Pipes
PVC, PE, and similar plastic pipes
Blade
Durable carbide-tipped blade
Maximum Wall Cutting Depth
Up to 2" / 50 mm
Required Clearance
Approx. 15–20 cm clearance for confined-space operation
Cutting Result
Creates a 15° bevel along the pipe edge after cutting
Large-Diameter Pipe Cutting for Trenches and Confined Spaces

Outer rollers help keep the cutter parallel to the pipe for more accurate cutting. The 15° bevel formed after cutting helps improve pipe-end cleanliness, sealing performance, and subsequent jointing quality.

Cutting Range
Cutting Range Details
Different PE pipe sizes correspond to different wall thickness capacities. Confirm the applicable range according to the actual pipe specification before use.
6"–28" / 160–800 mm

Suitable for cutting PVC, PE, and similar plastic pipes.

6"–14" PE Pipe

Cuts wall thickness up to 5 cm.

15"–18" PE Pipe

Cuts wall thickness up to 3.8 cm.

19"–24" PE Pipe

Cuts wall thickness up to 2.5 cm.

Features
Product Features
Designed for large-diameter PE and PVC pipe cutting, balancing high cutting efficiency, accurate alignment, durable blade performance, and confined-space capability.
High-Efficiency Cutting

Suitable for large-diameter PE and PVC pipes, handling pipe wall thicknesses up to 50 mm.

Accurate Cutting

Outer rollers keep the cutter parallel to the pipe, helping each cut remain more accurate.

Durable Design

Equipped with durable carbide-tipped blades for high-intensity work and longer tool service life.

Flexible Application

Can be used in narrow working environments, suitable for underground work or trench construction.

15° Bevel Design

The pipe edge has a 15° bevel after cutting, supporting later sealing and jointing work.

Low-Clearance Operation

Requires only about 15–20 cm clearance, making it suitable for large-diameter pipe cutting in restricted spaces.

Applications
Applications
Suitable for cutting large-diameter PVC and PE pipes in municipal, petroleum, chemical, construction, and large-scale engineering projects. Especially suitable for underground, trench, ground-level, and confined-space work.
Large-Diameter Pipe Cutting

Used for cutting large-diameter PVC and PE pipes in municipal, petroleum, chemical, and related industries.

Underground and Trench Work

Especially suitable for large pipe cutting during underground installation or trench work.

Industrial Installation and Repair

Can be used for installing, repairing, and replacing large-diameter pipes with fast and efficient cutting.

Construction and Large Projects

Suitable for large pipe construction needs in building sites and major engineering projects.
