REED-Plastic-Pipe-Joiner-PPJ-series

REED_plastic_pipe_joiner_04446
U.S.A.
REED
PPJ系列

Plastic Pipe Joiner

Suitable for 4"–16" plastic pipes｜For gasketed joints and solvent cement joints｜28:1 leverage ratio｜One-person operation.
Low-effort and efficient joining performance, ideal for municipal, construction, drainage, and large plastic pipe installation work.
Product Features
  • 28:1 Leverage Design: Greatly reduces required force, allowing one-person pipe joining operation.
  • Multiple Jointing Methods: Suitable for gasketed joints and solvent cement joints for greater flexibility.
  • Stable and Precise Joining: Improves pipe insertion control and ensures tight, secure joints.
  • Quick Accessory Change: Accessories can be changed easily without complex tools for better jobsite efficiency.
  • Optional Saddles Available: Dedicated saddles can be selected for different pipe sizes.
  • Durable Construction: Rugged material design for long-term heavy-duty jobsite use.
Add to Inquiry
Tags
Show
＃16" ＃Plastic Pipe ＃4"

Model Specifications

SKU
Model
Description
Weight
Remarks
04446
PPJ
For 4"–16"（114–434mm）
20.0kg
04441
PPJVS
For 4"–16"（114–434mm）
3.6kg
04439
PPJFA
For 4"~12" (114-324mm)
17.7kg
04442
PPJ4S
Saddle for 4.5"（114mm）
1.8kg
04444
PPJ6S
Saddle for 6.625" (168mm)
2.0kg
04447
PPJ8S
Saddle for 8.825" (224mm)
2.7kg
04448
PPJ10S
Saddle for 10.75" (273mm)
3.2kg
04449
PPJ12S
Saddle for 12.75" (324mm)
3.2kg

Product Details

Technical Data
Product Specifications
The PPJ plastic pipe joiner features a high-efficiency 28:1 leverage design, allowing one person to join or separate plastic pipes. It is suitable for gasketed joints and solvent cement joints, helping large plastic pipes be positioned, pushed, joined, or separated efficiently in municipal, construction, repair, and residential projects.
Leverage Ratio
28:1, high-efficiency effort-saving design
Operation Requirement
One-person operation for joining or separation
Gasketed Jointing
For 4"–16" gasketed plastic pipes
Solvent Cement Jointing
For IPS standard and 4"–12" plastic pipes
Gasketed Joint Accessories
PPJ plastic pipe joiner and PPJVS V-shaped saddle
Solvent Cement Joint Accessories
PPJ plastic pipe joiner, saddle, and PPJFA accessory
28:1 Leverage for One-Person Large Plastic Pipe Jointing

The high leverage ratio provides stable pushing force, reducing manpower requirements during large plastic pipe joining, separation, or repair work while improving jobsite efficiency.

Note: PPJFA can be used with different saddle sizes. The actual configuration should be selected according to pipe diameter and jointing method.

Jointing Range
Jointing Range
Accessories can be selected according to the pipe jointing method, supporting both gasketed joints and solvent cement joints.

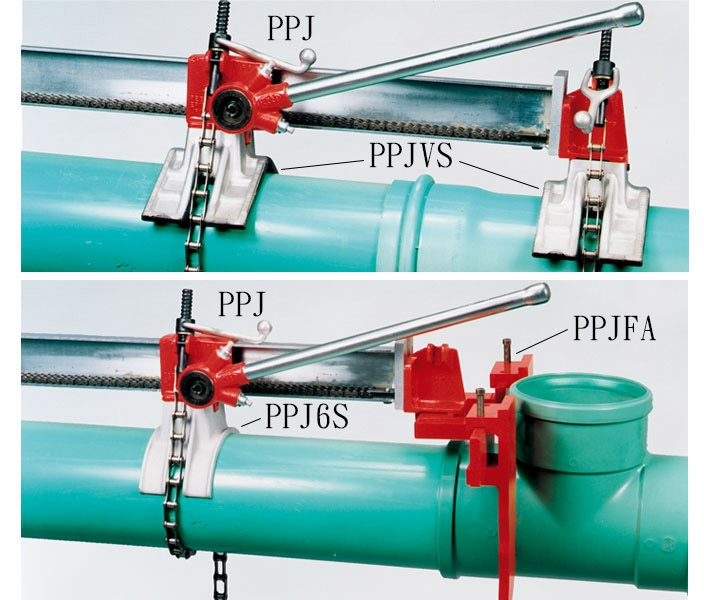

Gasketed Jointing

Suitable for 4"–16" gasketed plastic pipes. Requires the PPJ plastic pipe joiner and PPJVS V-shaped saddle.

Solvent Cement Jointing

Suitable for IPS standard and 4"–12" plastic pipes. Requires the PPJ plastic pipe joiner, saddle, and PPJFA accessory.

Features
Product Features
Designed for large plastic pipe joining and separation work, with emphasis on effort-saving operation, stability, quick accessory changes, and multi-size compatibility.
High-Efficiency Leverage

The 28:1 leverage ratio greatly reduces operating effort, allowing one person to join or separate large plastic pipes.

Multi-Function Jointing

Supports gasketed joints and solvent cement joints for plastic pipes of various sizes and wall thicknesses.

Stable and Precise

Used together with saddles and the pipe joiner to help stabilize pipe positioning and improve jointing consistency.

Easy Accessory Change

Accessories can be changed quickly according to pipe diameter and jointing method, improving jobsite flexibility.

Multiple Saddle Sizes

PPJFA saddle options are available to match different pipe jointing requirements.

Durable Construction

Built with a durable structure suitable for long-term and frequent jobsite use.

Applications
Applications
Suitable for plastic pipe joining, separation, positioning, and maintenance in municipal water supply and drainage, commercial buildings, residential construction, and pipeline repair work.
Municipal Engineering

Used for plastic pipe joining, separation, or repair in municipal water supply and drainage systems.

Commercial Buildings

Suitable for large plastic pipe jointing in building drainage and water supply systems.

Pipeline Repair

Quickly separates and rejoins gasketed pipes, reducing construction time and interruption impact.

Residential Construction

Can be used for fast joining or separation work in residential water supply and drainage systems.
