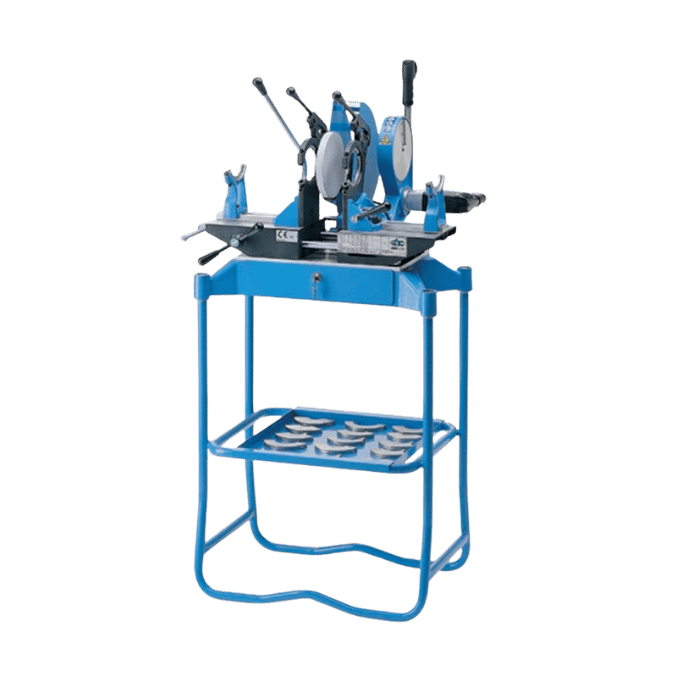

CBC-Welding-Machine-Baby-series

CBC_welding_machine_baby_160_9750030
Italy
CBC
Baby系列

Welding Machine

Suitable for pipe sizes 40–160 mm｜For PB, PE, PP, and PVDF pipes｜Butt fusion｜Adjustable temperature 50–300°C｜Variable-speed motor｜Quick clamps.
Fast clamping and stable heating performance, ideal for efficient installation and repair of drainage and piping systems.
Product Features
  • Quick Clamp Design: Quickly secures pipes and adjusts pressure for stable clamping and precise alignment.
  • Adjustable Support Bracket: Adjustable in 15° steps up to 30°, suitable for fusion work on angled pipes.
  • Double-Insulated Butt Fusion Heater: Equipped with adjustable temperature control from 50–300°C.
  • Variable-Speed Facing Cutter: Motor-driven facing cutter with 0–300 rpm speed range for stable circular cutting.
  • Pipe Stand and Drawer Design: Pipe stand can be used as a base, with drawer storage for clamp inserts and pipe supports.
  • Multi-Size Clamping Support: Compatible with 40–110 mm and 160 mm clamp inserts and pipe support inserts.
Add to Inquiry
Tags
Show
＃6" ＃Plastic Pipe ＃1"

Model Specifications

SKU
Model
Description
Weight
Remarks
9750030
BABY 160
Power & System: Fusion welder 230V / 800W with temperature controller (pipe diameter ≤160 mm), electric facing tool 230V / 400W; Clamping system: Quick clamping unit for pipe diameter 40–160 mm (with clamping inserts), pipe support stand for pipe diameter 40–160 mm (with support inserts); Workbench dimensions: 70 × 60 × 120 cm.
60 kg
9740010
BABY 110
Power & System: Butt fusion welder 230V / 600W with temperature controller (pipe diameter ≤110 mm), electric facing tool 230V / 400W; Clamping system: Quick clamping unit for pipe diameter 40–110 mm (with clamping inserts), pipe support stand for pipe diameter 40–110 mm (with support inserts); Workbench dimensions: 70 × 60 × 120 cm.
58 kg

Product Details

Technical Data
Product Specifications
The BABY series is designed for cutting and welding PB, PE, PP, and PVDF pipes and fittings. Depending on the model, it supports pipe sizes from 40–110 mm, 125 mm, and up to 160 mm, making it suitable for plastic piping system installation and maintenance.
Cutting Capacity
40–110 mm, with model options supporting up to 160 mm
Applicable Materials
PB, PE, PP, PVDF pipes and fittings
Main Use
Plastic pipe cutting, welding, and piping system installation or maintenance
Application Fields
Drainage systems, pipe systems, plastic piping projects, field maintenance, and retrofit work
Integrated Cutting and Welding Applications for Multiple Plastic Pipe Materials

Suitable for drainage, pipe systems, and plastic piping installation. The right configuration can be selected according to pipe diameter, wall thickness, and model, helping improve pipe preparation and joining efficiency on site.

Wall Thickness Range
Wall Thickness Range
BABY 160 and BABY 110 support different pipe sizes and wall thickness ranges. Select the correct model according to the actual pipe specification before installation.
BABY 160｜40–110 mm

Wall thickness ≤ PN 16.

BABY 160｜40–125 mm

Wall thickness ≤ PN 10.

BABY 160｜40–160 mm

Wall thickness ≤ PN 2.5–16.

BABY 110｜40–110 mm

Wall thickness ≤ PN 2.5–16.

Applications
Applications
Suitable for cutting and welding various plastic pipe materials, especially PB, PE, PP, and PVDF pipes. Widely used in drainage, pipe systems, and plastic piping installation or maintenance.
Drainage and Pipe Systems

Suitable for pipe cutting and welding in drainage pipes, pipe systems, and plastic piping projects.

Plastic Pipe Installation

Can be used for installation work involving PB, PE, PP, PVDF pipes and fittings.

Maintenance and Retrofit Work

Suitable for existing pipe maintenance, local modifications, and on-site pipe replacement.

Jobsite Pipe-End Preparation

Helps installers quickly complete plastic pipe cutting, pre-welding preparation, and joining work.
