GENERAL-Autofeed-Portable-Drain-Cleaner-PH-DR

U.S.A.
General Pipe
PH-DR

Autofeed Portable Drain Cleaner

Suitable for 3/4" ~ 3" drain lines|Automatic cable feed and retrieval|Foot pedal variable-speed control|Built-in drum for quick cable changes|Weight 10 kg|Horizontal or upright operation.

Product Features
  • Automatic Cable Feed: Helps reduce cable tangling and keeps the work area cleaner.
  • Horizontal / Upright Operation: Adjustable working position allows closer access to the drain opening.
  • Foot Pedal Speed Control: Controls feed pressure and drum speed for more precise cleaning.
  • Low-Effort Design: Suitable for long working hours and confined-space operation.
  • Quick-Change Drum: Built-in drum allows easy cable replacement for different cleaning needs.
  • Multiple Cutter Options: Works with arrow, bulb, and side-cutter heads for different blockage types.
Tags
Show
#3" #3/4"

Model Specifications

SKU
Model
Description
Weight
Remarks
105230
PH-DR-B
Main unit 120V / 60Hz with automatic feed and retract, variable speed 0–400 rpm; Cable: one 5/16" × 50' solid-core cable; Included: HECS tool set.
18.1kg

Multiple Configurations Available: Different setups are available for specific jobsite needs.

Product Details

Technical Data
Product Specifications
DRPH is a professional small drain cleaning machine suitable for sinks, bathtubs, laundry sinks, and similar small drain lines. It is designed for 3/4"–3" drain lines and can be used with 1/4", 5/16", or 3/8" HE cables. Its compact body makes it suitable for tight spaces and long-duration field work.
Cleaning Capacity
Suitable for 3/4"–3" drain lines
Cable Options
Can be used with 1/4", 5/16", or 3/8" HE cables
Machine Dimensions
56 × 34 × 38 cm
Weight
10 kg
Small Drain Cleaning for Tight-Space Operation

Different cables and cutter heads can be selected according to pipe size and blockage type, making it suitable for sinks, bathtubs, laundry sinks, and tight-space drain cleaning.

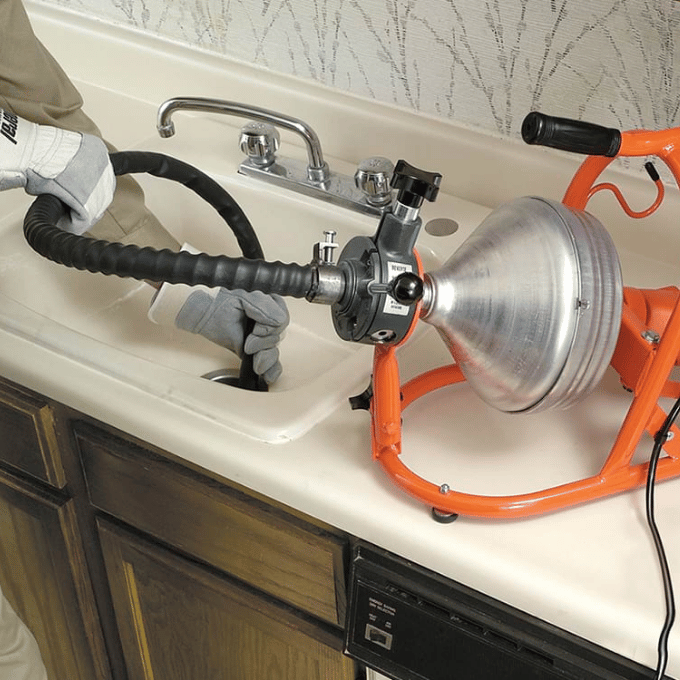

DRPH Small Drain Cleaning Machine

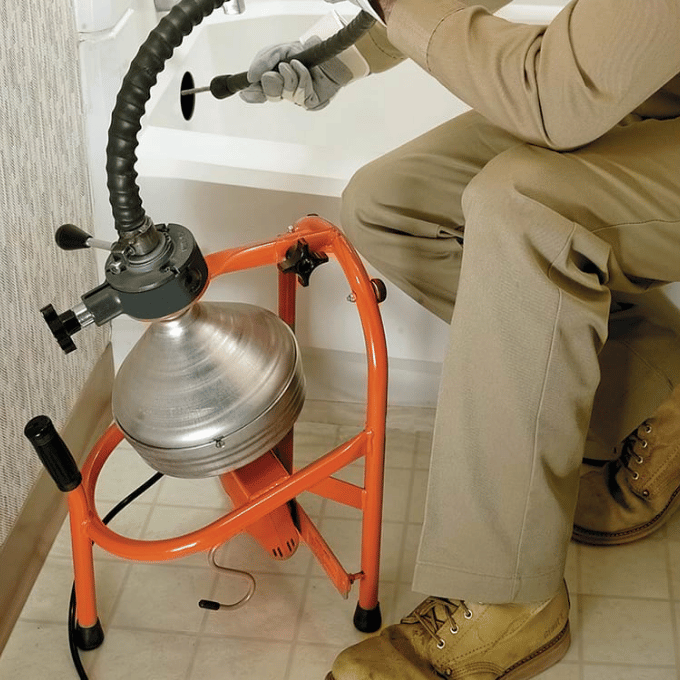

DRPH Application Display
Applications
Applications
Suitable for various small drain lines, especially sinks, bathtubs, laundry sinks, and similar drain lines. It can handle common blockages such as grease, hair, debris, and soft obstructions.
Sink and Bathtub Drains

Suitable for cleaning small drain lines such as sinks, bathtubs, and laundry sinks.

Tight-Space Drain Cleaning

Compact machine body makes it convenient to use in narrow or hard-to-operate spaces.

Common Blockage Removal

Effectively clears grease, hair, debris, and general soft blockages.

HE Cutter System

Cutter heads are suitable for SSV, PV, DRPH, PHDRZ, IRT66, and I95 models, and can be used with the HECS tool set.

Cutters
Cutter Accessories
Select arrow cutters, spring arrow cutters, side cutters, bulb augers, and drop-head accessories according to blockage type to improve small drain cleaning efficiency.
AH Arrow Cutter
130110|AH

Arrow cutter

FAH Spring Arrow Cutter
130120|FAH

Spring arrow cutter

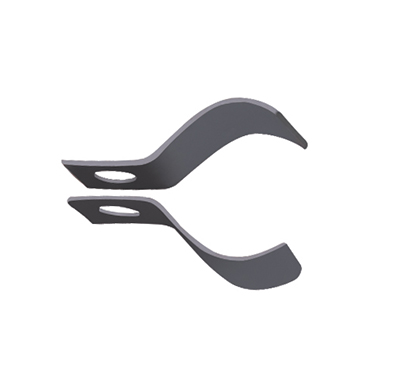

114SCB Side Cutter
130160|114SCB

1¼" side cutter

BG Bulb Auger
130130|BG

Bulb auger

DHBG Drop Head Auger
130140|DHBG

Drop head auger

DHF Drop Head Adapter
130150|DHF

Drop head adapter

Video
Product Video
Watch the operation video to understand how DRPH works in real drain cleaning applications.
