GENERAL Hot-Spot Pipe Locator Transmitter

GENERAL_inspection_Gen-Eye_Pipe-Locator_Hot-Spot_185670
GENERAL_inspection_Gen-Eye_Pipe-Locator_Hot-Spot_185680_3
U.S.A.
General Pipe
Hot-spot parts

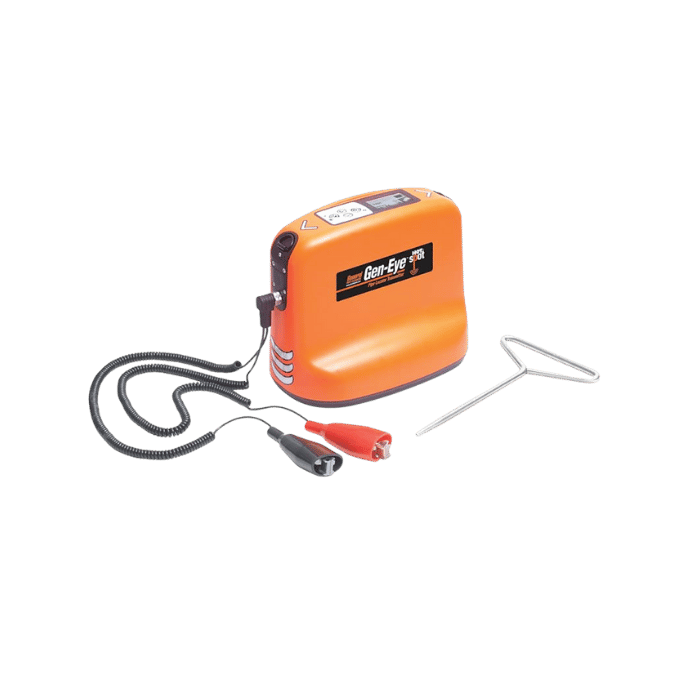

Gen-Eye Hot Spot Transmitter

The Gen-Eye Hot Spot Transmitter is an accessory for the Digital Pipe Locator system, used for locating buried utility lines, sewer lines, and Gen-Eye Sondes. It features 5W output and four selectable frequencies: 1KHz, 8KHz, 33KHz, and 65KHz.
Product Features
  • Powerful 5W output: Provides a stronger locating signal for easier utility and buried pipe detection.
  • Four selectable frequencies: Supports 1KHz, 8KHz, 33KHz, and 65KHz for different locating conditions.
  • Multiple operating methods: Connect the leads to both ends of the pipe, complete the circuit through grounding, or use induction mode when direct access is not available.
  • Compatible with Gen-Eye Sondes: Ideal for locating cast iron, clay, plastic, and sewer lines underground.
  • Simple operation: Easy-to-use interface without complicated screen settings, making it suitable for field operation.
  • Easy-to-read display: Graphic display shows connection quality and power settings, with automatic backlight for low-light environments.
  • Long battery life: Operates for approximately 100 hours at 20°C, with automatic shut-off to conserve power.
  • USB software upgrade: Software can be updated through the USB interface for improved long-term usability.
Add to Inquiry
Tags
Show

Model Specifications

SKU
Model
Description
Weight
Remarks
185670
GL-175
5 W signal transmitter (grounded), suitable for cast iron or galvanized pipes, with a detection depth of up to 3 meters.
3.6kg
185280

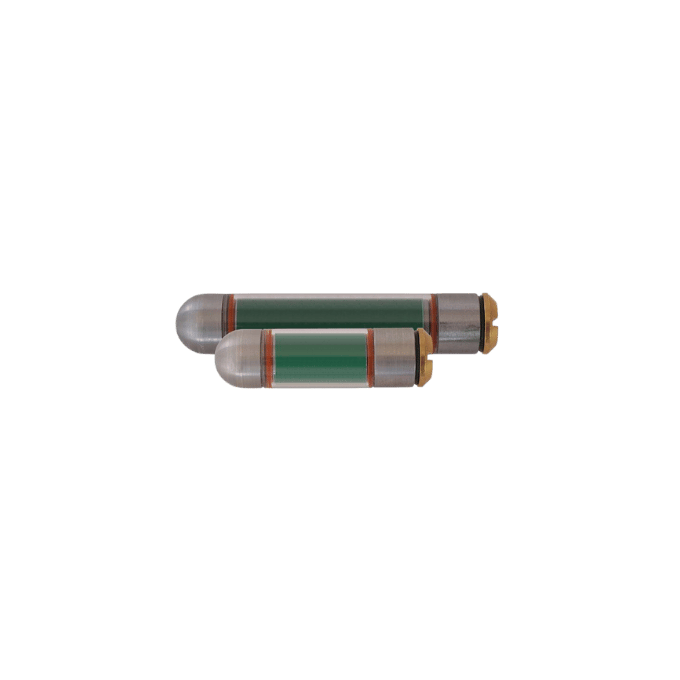

GL-130
Transmitting probe (10), capable of locating cast iron pipes up to 10 ft deep, or clay and plastic pipes up to 15 ft deep.
2.2kg
185295
GL-150
Transmitting probe (20), capable of locating cast iron pipes up to 20 ft deep, or clay and plastic pipes up to 30 ft deep.
2.2kg

Product Details

Product Overview
Gen-Eye Hot-Spot Transmitter｜5W High-Power Underground Pipe Locating Tool
The Gen-Eye Hot-Spot Transmitter provides 5W high-power output and four locating frequencies to help locate underground pipelines, utility lines, sewer lines, and drainage pipes. It can be used by direct connection, grounding loop, or induction mode, and can also be paired with Gen-Eye Sonde transmitters to locate non-metallic pipes or sonde positions inside pipelines. It is suitable for pre-construction utility confirmation, pipe inspection support, and repair troubleshooting.
Power Output
5W high-power output
Locating Frequencies
1KHz, 8KHz, 33KHz, 65KHz
Operating Methods
Direct connection, grounding loop, induction mode
Sonde Compatibility
Compatible with Gen-Eye Sonde transmitters
Applicable Pipe Materials
Cast iron pipe, metal pipe, clay pipe, plastic pipe, sewer lines
Display
Graphic display for connection quality and power setting, with automatic backlight
Battery Life
Approx. 100 hours at 20°C, with automatic power-off function
Software Update
Software updates available via USB interface
5W high-power output improves underground pipe and utility locating efficiency

The key to underground pipe locating lies in signal strength, frequency selection, and the right connection method for the jobsite. With 5W high-power output and four locating frequencies, the Gen-Eye Hot-Spot Transmitter allows users to choose a more suitable locating method according to pipe material, depth, environmental interference, and working conditions, reducing misjudgment and repeated locating time.

Features
Product Features
Built around high-power signal output, multi-frequency switching, flexible connection methods, Sonde compatibility, and long battery life, this transmitter helps locate underground pipes and utilities more efficiently on site.
5W High-Power Output

Provides a stronger locating signal to improve underground pipeline and utility locating efficiency.

Four Locating Frequencies

Supports 1KHz, 8KHz, 33KHz, and 65KHz for switching according to site conditions.

Multiple Operating Methods

Leads can be connected to both pipe ends, used with grounding to form a loop, or operated in induction mode.

Compatible with Gen-Eye Sonde

Suitable for locating underground cast iron, clay, plastic, and sewer pipelines when used with a Gen-Eye Sonde.

Simple and Intuitive Operation

The clean option interface requires no complicated screen setup, making it easier for field personnel to use.

Easy-to-Read Display

Graphic display shows connection quality and power settings, while automatic backlight supports low-light environments.

Long Battery Life

Provides approx. 100 hours of operation at 20°C and includes automatic power-off to save battery power.

USB Software Upgrade

Software can be updated via USB interface to maintain long-term device flexibility.

Applications
Applications
Suitable for locating underground utilities, sewer lines, non-metallic pipelines, cast iron and metal pipes. It can also support pre-construction utility confirmation, pipe inspection, and repair troubleshooting.
Underground Utility Locating

Suitable for locating underground pipelines, utility lines, drainage lines, and similar routes.

Sewer Line Locating

Helps confirm the route and position of sewer pipes, drainage pipes, and wastewater lines.

Sonde Locating

When used with a Gen-Eye Sonde, it can locate the position of the sonde inside the pipeline.

Non-Metallic Pipe Locating

With a Sonde transmitter, it can be used for plastic pipes, clay pipes, and other lines that are difficult to locate directly.

Cast Iron and Metal Pipe Locating

Direct connection or induction mode can help locate metal pipelines.

Pre-Construction Utility Confirmation

Suitable before drilling, excavation, or repair work to confirm underground pipe positions and reduce accidental damage risk.

Pipe Inspection Support

Can be used together with pipe cameras, drain cables, jetter hoses, or other equipment to help determine pipeline location.

Repair and Troubleshooting

Suitable for identifying the location of blockages, damage, offset, settlement, or abnormal pipe sections.
