REMS Industrial-Micro-Inspection-CamScope-HD
Home- Products
- Inspection & Leak Detection
- Pipe Inspection System
- Industrial Micro Inspection
Ideal for low-cost inspection and damage analysis in confined spaces｜5" TFT-LCD｜Ø8 mm CMOS color camera｜IP67 waterproof rating｜Full HD 1920 × 1080 image / video recording｜4× digital zoom｜Audio recording｜MicroSD + USB-C transfer.
Product Features
- 高質量影像：5吋彩色螢幕，提供清晰的影像顯示，支持高達720p的錄影畫質。
- 靈活鏡頭：1米可繞性蛇管，適合進入狹小空間，搭載8mm CMOS彩色攝像鏡頭，適合檢查通風孔、洞穴、軸和管道等位置。
- 多種功能：支持照相、High-Resolution Imaging: Supports Full HD photo and video recording for clear inspection details.
- Flexible Confined-Space Inspection: Ø8 mm CMOS color camera with 1 m flexible probe for restricted areas.
- Dual-View Camera: Supports 180° front view and 90° side view for more complete inspection coverage.
- Multi-Function Image Control: Supports audio recording, image rotation, mirror view, and up to 4× digital zoom.
- Convenient Data Storage: Supports MicroSD card storage for easier file management.
- USB-C Transfer: Allows quick export of images and videos for inspection reports.
- Portable Operation: Lightweight body supports battery and external power use.
- IP67 Waterproof Design: Suitable for damp areas, pipe interiors, and equipment inspection.錄影、錄音，並可儲存於MicroSD卡，便於結果檢查與資料傳輸。
- 影像放大：檢視過程中可放大1.5至4倍。
- USB-C接口：支持直接充電及數據傳輸，與PC或筆記型電腦連接方便。
- 防水設計：符合IP67防水標準，可在各種環境中使用。
Tags
Show
Model Specifications
Product Details
Product Overview

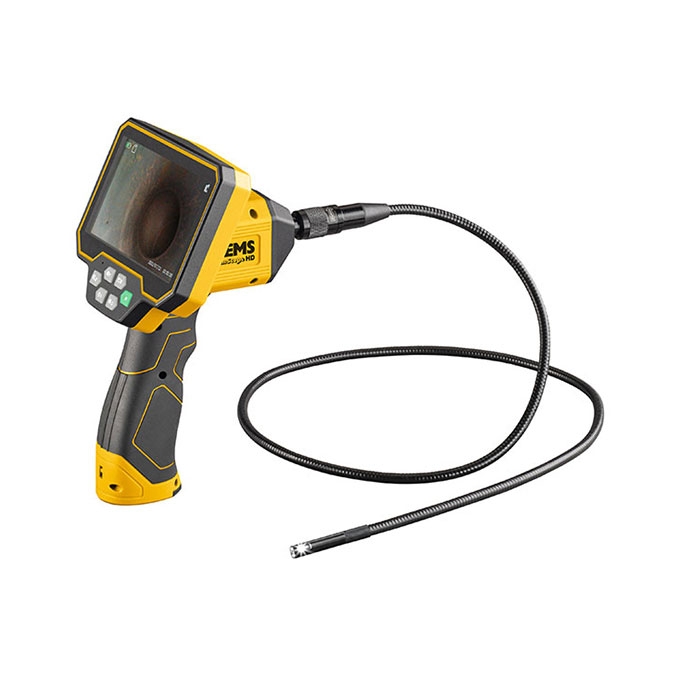

REMS CamScope HD Industrial Endoscope
REMS CamScope HD is the upgraded version of REMS CamScope S, designed as a portable industrial endoscope for inspection work. It features a 5-inch TFT-LCD color display, HD image and video recording, and an Ø8 mm dual-camera system with 180° forward view and 90° side view. Images and videos can be stored on a MicroSD card for later review, documentation, and inspection management.
Product Type
HD industrial endoscope
Display
5-inch TFT-LCD color display
Display Resolution
480 × 854
Photo Format
JPG
Video Format
MOV (1920 × 1080 / 1280 × 720)
Digital Zoom
1.5×, 2.0×, 3.0×, 4.0×
Power Supply
Built-in 3.7V / 4.0Ah lithium battery
Runtime
Approx. 5 hours when fully charged, USB charging during operation supported
Operating Temperature
10°C to +50°C
Humidity Range
15%–85% RH
Main Unit Size / Weight
155 × 131 × 218 mm / 360 g
Inspection Is Not Only About Seeing Inside — It Is About Clear Imaging, Recording, and Documentation
Traditional visual inspection is limited by angle, lighting, and space. CamScope HD combines HD imaging, dual camera angles, video recording, and MicroSD storage, allowing inspection results to be reviewed, documented, and shared for maintenance communication and reporting.
Camera Specifications
Camera Specifications

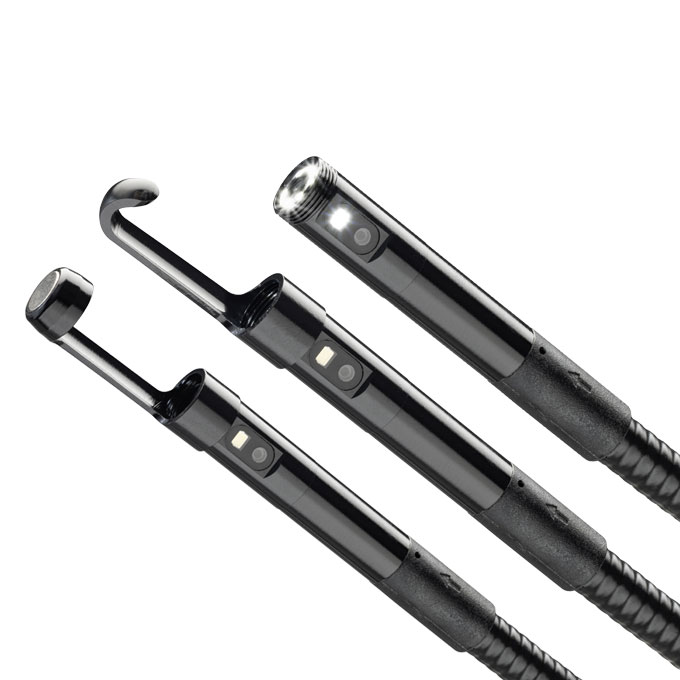

Supplied with the Color 8-1 HD 180° / 90° dual-view camera and optionally available with the Color 8-5 HD extended camera depending on inspection distance and working conditions.
Color 8-1 HD 180° / 90°
Ø8 mm CMOS camera; resolution 1280 × 720 / 712; viewing angle 77°; focus range 30–80 / 15–60 mm; IP67 protection; size / weight Ø8 × 1155 mm / 170 g.
Color 8-5 HD Optional
Ø8 mm CMOS camera; resolution 1280 × 720; viewing angle 77°; focus range 30–80 mm; IP67 protection; size / weight Ø8 × 5100 mm / 700 g.
Features
Product Features
Built around HD imaging, a 5-inch color display, dual-view camera, MicroSD storage, lithium battery operation, and impact-resistant housing, CamScope HD is designed for field inspection and confined-space checking.
HD Image and Video Recording
Supports high-quality imaging and video recording for clearer inspection and later review.
5-Inch Color Display
Large TFT-LCD color display makes on-site viewing more intuitive and easier to read.
180° Forward / 90° Side View
Dual-camera design improves inspection efficiency inside pipes, openings, and confined spaces.
MicroSD Image Storage
Inspection images and videos can be stored on a MicroSD card for review and documentation.
Battery-Powered Mobility
Built-in lithium battery provides approx. 5 hours of operation and supports USB charging during use.
Impact-Resistant Housing
Durable impact-resistant housing and ergonomic handle support one-hand field operation.
Applications
Applications

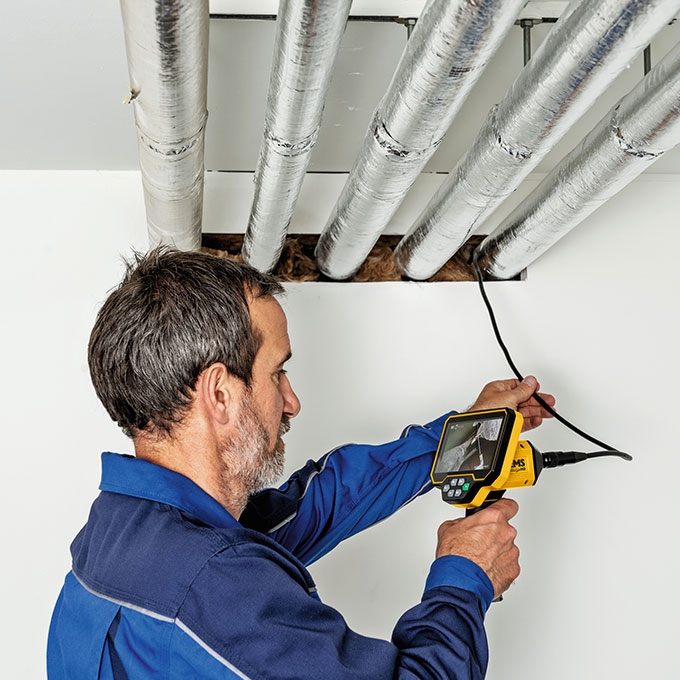

Suitable for inspecting ventilation openings, cavities, shafts, pipes, equipment interiors, and other confined spaces. It supports damage analysis, inspection documentation, on-site diagnosis, and before / after repair comparison.
Confined Space Inspection
Suitable for ventilation openings, cavities, shafts, and hard-to-see locations.
Pipe Inspection
Can be used for small pipes, mechanical piping, and internal equipment inspection.
Damage Analysis
Clear images and video records help users analyze conditions and support repair decisions.
Equipment Maintenance Inspection
Suitable for checking machinery, internal structures, and non-removable areas.
Inspection Record Management
Images and videos can be stored for later tracking, maintenance communication, and reporting.
Mobile Field Service
Battery operation and portable design make it suitable for mobile inspection and multi-point checks.
