REED Chain-Wrench-C-WA-series

REED_Chain_Wrench_C12_31310
U.S.A.
REED
C/WA系列

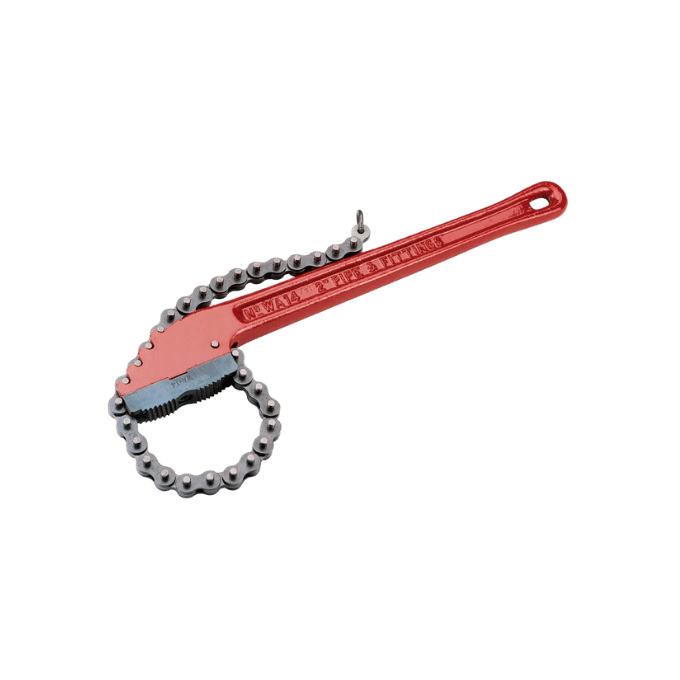

Chain Wrench

Double-ended gripping jaws｜High-strength chain design｜Forward / reverse turning while closed｜Continuous operation without removal｜Multiple sizes available｜Suitable for irregular and smooth pipe fittings.
Product Features
  • Double-Ended Gripping Jaws: Securely grips various pipe shapes for stable operation.
  • High-Strength Chain Design: Suitable for high-torque and heavy-duty jobsite use.
  • Forward / Reverse Turning While Closed: Allows continuous operation without repeated removal.
  • For Irregular Fittings: Suitable for irregular-shaped, smooth-surface, and standard pipe fittings.
  • Multiple Sizes Available: Choose the suitable size according to pipe diameter and jobsite needs.
  • Time and Labor Saving: Reduces repeated adjustment and re-clamping for better efficiency.
  • Durable Structure: Built for long-term use in industrial maintenance, construction, and pipe installation.
Add to Inquiry
Tags
Show
＃18" ＃2"

Model Specifications

SKU
Model
Description
Weight
Remarks
31310
C-12
Pipe Capacity: 2"；Maximum Outside Diameter: 4".
0.8kg
Chain Length: 390 mm
31315
C-14
Pipe Capacity: 2"；Maximum Outside Diameter: 5"
1.2kg
Chain Length: 460mm
31320
C-18
Pipe Capacity: 2 1/2"；Maximum Outside Diameter: 5"
2.7kg
Chain Length: 500mm
31325
C-24
Pipe Capacity: 3"；Maximum Outside Diameter: 5"
3.7kg
Chain Length: 500mm
31330
C-36
Pipe Capacity: 4 1/2"；Maximum Outside Diameter: 7 1/2"
7.1kg
Chain Length: 725mm
02080
WA48
Pipe Capacity: 1~6"；Maximum Outside Diameter: 8 1/2"
13.4kg
Chain Length: 1118mm；Chain Tensile Strength 24,500 lbs
02090
WA60
Pipe Capacity: 1 1/2~8"；Maximum Outside Diameter: 11"
21.4kg
Chain Length: 1175mm；Chain Tensile Strength 23,700 lbs
02092
WA72
Pipe Capacity: 2 1/2~12；Maximum Outside Diameter: 13"
36.4kg
Chain Length: 1175mm；Chain Tensile Strength 29,150 lbs
02094
WA84
Pipe Capacity: 2 1/2~18"；Maximum Outside Diameter: 18"
40.9kg
Chain Length: 1175mm；Chain Tensile Strength 29,150 lbs

Product Details

Technical Data
Product Specifications
The chain wrench can be operated in a closed position, allowing pipes and fittings of different directions and shapes to be turned. The double-jaw head supports left and right movement, while the chain can rotate in the opposite direction, allowing continuous operation without repeatedly removing the tool. It is ideal for work environments that require frequent direction changes.
Operation
Can be operated in a closed position to turn fittings of different directions and shapes.
Jaw Head Design
Double-jaw head supports left and right movement.
Chain Movement
Chain can rotate in the opposite direction, allowing continued operation without removing the tool.
Size Options
Available in multiple sizes to meet different pipe fitting requirements.
Operate in a Closed Position and Reduce Repeated Tool Removal

The key advantage of the chain wrench is its ability to continue turning fittings without removing the tool. With a double-jaw head and chain movement in the opposite direction, it improves efficiency when working with irregular fittings, multi-angle installations, or frequent direction changes.

Features
Product Features
Built around closed-position operation, double-jaw head design, reverse chain movement, and multiple size options, this wrench is suitable for irregular fittings and professional work requiring fast direction adjustment.
Flexible Operation

Can turn fittings of various shapes without repeated removal of the tool.

Efficient Handling

Double-jaw head design allows users to quickly adjust direction and save operation time.

Continuous Operation

The chain can rotate in the opposite direction, allowing continued operation without repeatedly removing the tool.

Durable Structure

Optimized structural design helps extend tool service life and is suitable for long-term heavy-duty work.

Applications
Applications
Suitable for a wide range of pipe installation and repair work, including irregular fittings, fittings in different directions, and construction situations that require frequent operation direction changes. Widely used in industrial, construction, and pipe maintenance fields.
Pipe Installation and Repair

Suitable for various pipe installation and maintenance applications, including irregular fitting work.

Frequent Direction Adjustment

Ideal for construction situations that require frequent changes in operating direction.

Industrial and Construction Work

Suitable for industrial, construction, and pipe maintenance environments requiring stable fitting rotation.

Irregular Fitting Operation

Can be used for gripping and turning fittings of different shapes, improving tool adaptability.
