REED Pipe-Welding-Vise-46-series
Home- Products
- Pipe Wrenches & Hand Tools
- Pipe & Bench Vises
- Pipe Welding Vise
Pipe capacity 1/2"–8" (15–200 mm)｜1/2"–12" (15–300 mm)｜2 1/2"–8" (60–200 mm)｜For aligning straight pipes and elbows｜Chain-type quick locking｜Helps prevent welding deformation.
Product Features
- Precise Pipe Alignment: Ensures proper surface contact between pipe sections for better weld quality.
- Straight Pipe / Elbow Application: Suitable for aligning straight pipes, elbows, and various pipe fittings.

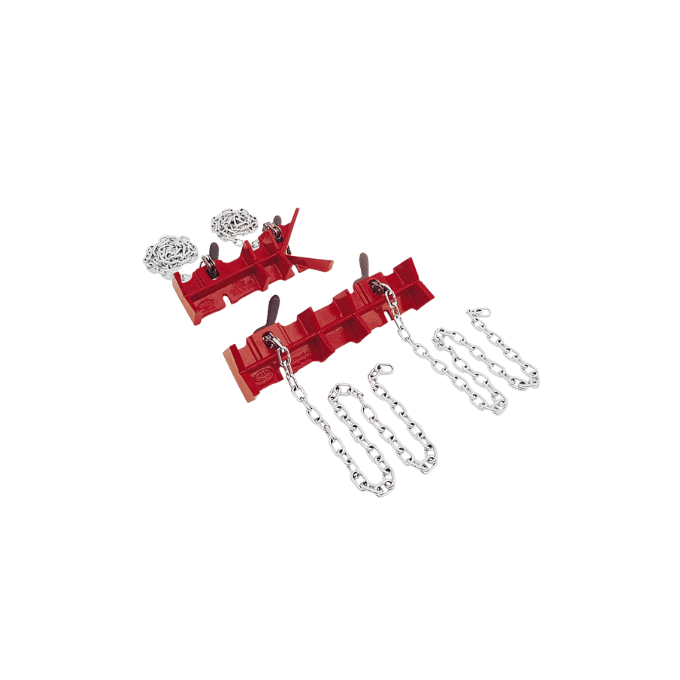

- Chain-Type Quick Locking: Special chain screw design allows fast clamping and removal.
- Helps Prevent Welding Deformation: Holds pipes securely to reduce movement and deformation during welding.
- Rugged Durable Structure: Built for long-term use in workshops and jobsites.
- Simple Efficient Operation: Fast setup, adjustment, and removal improve welding productivity.
Model Specifications
Product Details
Technical Data
Product Specifications
Suitable for precise joining of two parallel straight pipes, or a straight pipe and an elbow fitting. It helps hold pipe sections in position before tack welding, ensuring proper surface contact and reducing the risk of deformation, misalignment, or warping during tack welding.
Applicable Joint
Suitable for precise joining of two parallel straight pipes, or a straight pipe and an elbow fitting.
Holding Purpose
Helps ensure proper contact between pipe surfaces and improves alignment accuracy.
Anti-Deformation Function
Helps prevent deformation, misalignment, and warping during tack welding.
Fixing Method
Special chain screw design allows quick pipe fixing.
Application Areas
Suitable for jobsite and workshop pipe welding applications.
Precise Pre-Weld Alignment with Reduced Tack-Welding Deformation
The key value of a pipe welding alignment clamp is stable positioning before welding. When straight pipes, elbow fittings, or flanges require precise joining, the clamp helps hold the relative position first, reducing movement and warping during tack welding and improving final weld quality.
Features
Product Features
Built around precise alignment, deformation prevention, fast chain fixing, and durable construction, this tool is suitable for pipe welding work that requires improved weld quality, reduced alignment error, and better work stability.
Precise Alignment
Ensures proper contact between pipe surfaces, reducing alignment error and improving welding quality.
Deformation Prevention
Helps maintain pipe position during tack welding and reduces the risk of deformation or warping.
Simple Operation
Special chain screw design allows fast pipe fixing and improves jobsite efficiency.
High Durability
Durable construction is suitable for long-term use in jobsite and workshop welding environments.
Improved Welding Quality
Stable fixing and accurate alignment help reduce later correction and rework.
Multiple Fitting Applications
Can be used for common pipe welding combinations such as straight pipes, elbows, and flanges.
Applications
Applications
Suitable for jobsite and workshop pipe welding, including precise welding of straight pipes, elbows, and flanges. Especially useful for pipe work requiring controlled alignment accuracy, reduced tack-welding deformation, and improved weld quality.

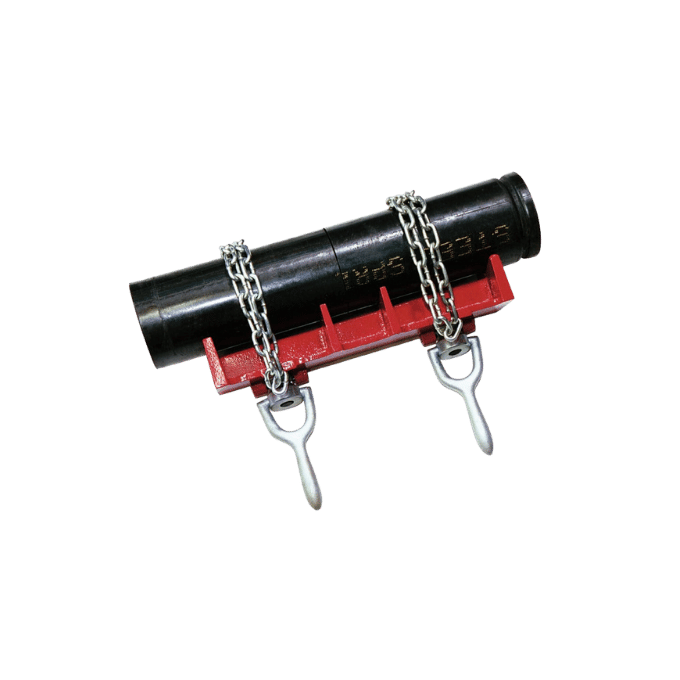

Straight Pipe Alignment
Suitable for precise positioning and fixing of two parallel straight pipes before welding.

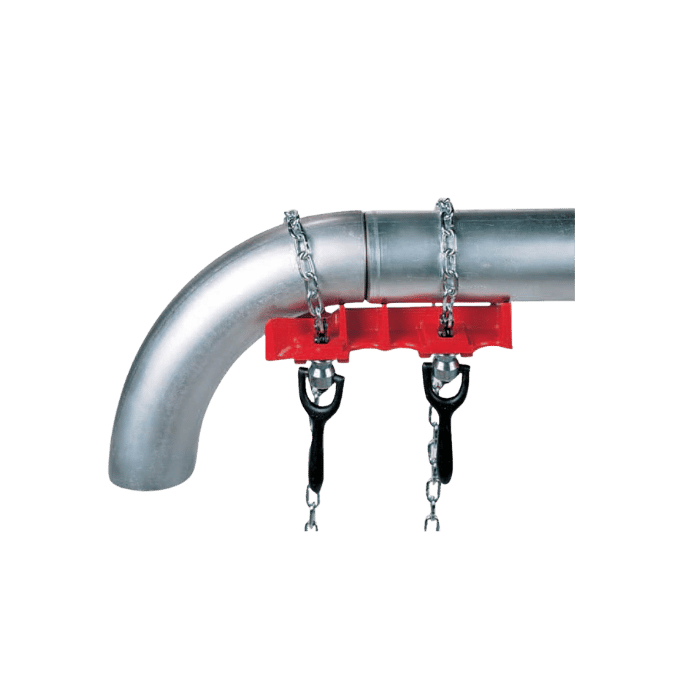

Straight Pipe to Elbow
Can be used to align a straight pipe and elbow fitting while maintaining the correct angle and contact surface.
Flange Welding
Suitable for fixing pipe sections and flanges before welding, improving pre-weld preparation accuracy.
Jobsite Welding
Suitable for pipe installation, repair, and welding work on jobsites, improving field work stability.
Workshop Prefabrication
Can be used for pipe section prefabrication, assembly, and pre-weld positioning in workshops.
High-Precision Piping Work
Suitable for piping environments requiring higher alignment accuracy and reduced rework risk.
