Hydraulic-Pipe-Bender-3-4

KS_hydraulic_pipe_bender_3
Taiwan
KS
3&4

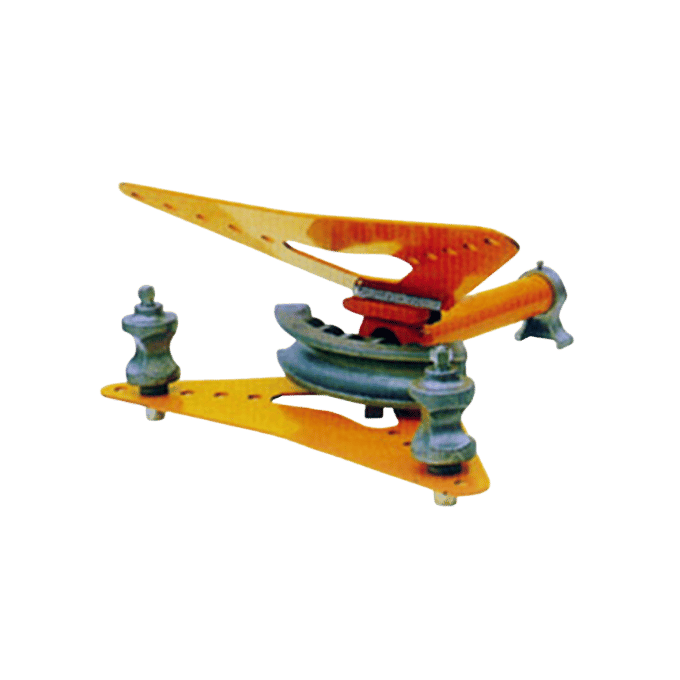

Hydraulic Pipe Bender

Bending capacity: 1/2"–4"｜Suitable for steel pipes, conduits, gas pipes, and more｜One-piece body｜Hydraulic bending system.
Powerful and stable bending with reduced misalignment, ideal for piping, electrical, and gas installation work.
Product Features
  • One-Piece Body: Compact and rugged structure for durability, portability, and easy operation.
  • Hydraulic Bending System: Delivers strong and stable bending force for better jobsite efficiency.
  • Wide Bending Capacity: Supports 1/2"–4" pipes for various installation needs.
  • Multi-Pipe Application: Suitable for steel pipes, electrical conduits, gas pipes, and other jobsite piping materials.
  • Step-by-Step Bending Design: For 2 1/2"–4" large pipes, segmented bending helps reduce deformation and pipe damage.
Add to Inquiry
Tags
Show
＃EMT Conduit ＃Galvanized Steel Pipe ＃3" ＃1/2" ＃4"

Model Specifications

SKU
Model
Description
Weight
Remarks
3
3
15-ton hydraulic cylinder with body, including 1/2"–3" bending formers, 8 pcs
30 kg
4
4
20-ton hydraulic cylinder with body, including 1/2"–4" bending formers, 10 pcs
40 kg

Product Details

Technical Data
Product Specifications
Large hydraulic pipe bender for steel pipes, electrical conduits, gas pipes, and heavy-wall conduits. Depending on pipe size, it supports single-pass 90° bending or segmented bending to balance efficiency and bending quality.
Applicable materials
Steel pipe, electrical conduit, gas pipe, heavy-wall conduit
No.3｜Heavy-wall conduit
1/2" ~ 3"
No.3｜Electrical conduit
5/8" ~ 3"
No.3｜Gas pipe
1/2" ~ 2 1/2"
No.4｜Heavy-wall conduit
1/2" ~ 4"
No.4｜Electrical conduit
5/8" ~ 3"
No.4｜Gas pipe
1/2" ~ 4"
1/2" ~ 2" pipes
Single-pass 90° bending
2 1/2" ~ 4" pipes
Segmented bending, approx. 5–7 strokes
Structural design
One-piece body, single-port hydraulic cylinder, cast aluminium bending formers
Stable Bending Solution for Large Pipes
Smaller pipe sizes can be bent to 90° in one pass for better efficiency, while larger pipe sizes use segmented bending to reduce deformation risk and maintain bending quality and safety.
Features
Product Features
Built around a high-strength body, stable hydraulic output, and lightweight cast aluminium bending formers for demanding pipe bending jobsites.
One-Piece Body Structure
High-strength body construction helps reduce damage risk and supports long-term heavy-duty use.
Single-Port Hydraulic Cylinder
Smooth operation and stable output help reduce operator effort during bending work.
Cast Aluminium Formers
Lightweight and durable bending formers make carrying, installation, and replacement easier on site.
Single-Pass 90° Bending
1/2" ~ 2" pipes can be bent to 90° in one pass, saving time and improving field efficiency.
Segmented Bending for Larger Pipes
2 1/2" ~ 4" pipes are bent in approximately 5–7 segmented strokes to help prevent pipe deformation.
Multiple Pipe Types
Suitable for steel pipes, electrical conduits, gas pipes, and heavy-wall conduits across different construction needs.
Applications
Applications
Suitable for piping work, equipment installation, conduit layout, gas piping, and heavy-wall conduit bending.
Steel Pipe Bending
Suitable for piping work, equipment installation, and maintenance requiring stable large-pipe bending capability.
Electrical Conduit Bending
Supports clean and safe conduit routing for electrical installations with improved layout appearance.
Gas Pipe Bending
Suitable for gas piping work in building, industrial, and equipment-related installations.
Heavy-Wall Conduit Bending
Suitable for high-strength bending requirements, maintaining stable performance even on heavy-wall and larger pipe sizes.
