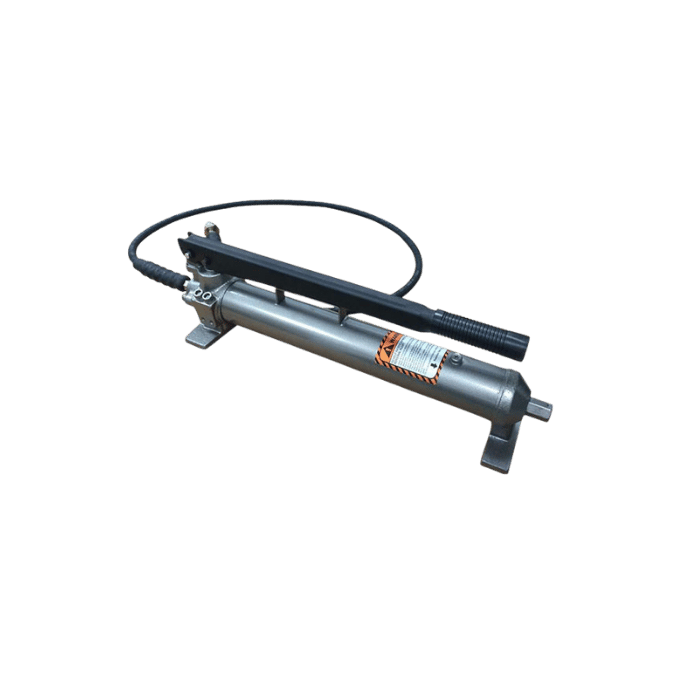

Hand-Pump-SP1200
Hose length 1.8 m｜Pressure range: low pressure 14 bar / high pressure 700 bar｜Oil capacity 1200 cc｜Suitable for crimping, steel cable cutting, and punching｜Built-in high-pressure safety relief valve.
Product Features
- Multi-Purpose Application: Suitable for use with hydraulic crimping, steel cable cutting, and punching tools.
- Dual-Pressure Operation: Low pressure 14 bar for fast oil flow and high pressure 700 bar for powerful working output.
- 1.8 m Hydraulic Hose: Provides extended reach and better jobsite flexibility.
- 1200 cc Oil Capacity: Suitable for various hydraulic tools and continuous operation needs.
- Safety Relief Valve: Built-in high-pressure safety relief valve helps prevent overpressure.
- Manual Operation: No power supply required, suitable for jobsites, repair work, and restricted areas.
- Compact Portable Design: Easy to carry and move for different work environments.
Tags
Show
Model Specifications
Product Details
Technical Data
Product Specifications
The manual hydraulic pump can be used with multiple hydraulic tools for pressing, wire rope cutting, punching, and related operations. Equipped with a 1.8 m hydraulic hose, it provides fast oil delivery at low pressure and working output at high pressure, with maximum pressure up to 700 Bar for jobsite, maintenance, and field engineering work.
Applicable Functions
Pressing, wire rope cutting, punching, and hydraulic tool operation
Operation Type
Manual operation
Hose Length
1.8 m
Low Pressure
14 Bar
High Pressure
700 Bar
Low-Pressure Flow per Stroke
15.5 cc
High-Pressure Flow per Stroke
2.8 cc
Safety Design
Built-in high-pressure safety relief valve
700 Bar High-Pressure Output for Multiple Hydraulic Tool Applications
The low-pressure stage enables fast oil delivery, while the high-pressure stage provides stable working pressure. The built-in safety relief valve helps improve jobsite safety and operating stability.
Applications
Applications
Suitable for wire rope cutting, terminal pressing, punching, and jobsite maintenance work. It can be used with different hydraulic tool heads to support multi-function field operations.
Wire Rope Cutting
Can be used with hydraulic cutting tools to cut different sizes of wire ropes or cables.
Pressing Work
Suitable for pressing wire terminals, connectors, or sleeves, helping ensure secure and stable connections.
Punching Work
Can be used with hydraulic punching tools for metal plates, plastic pipes, equipment assembly, and repair work.
Jobsites and Maintenance
Suitable for jobsites, repair locations, and engineering work requiring stable high-pressure output and safer operation.
Core Power Source for Multi-Function Hydraulic Work
One manual hydraulic pump can support multiple hydraulic tool applications, making it suitable for engineering tasks that require flexible setup, stable pressure, and jobsite mobility.
