REMS Herkules Pipe Stand

REMS_ditch_vise_HERKULES-XL-12_120125
REMS_ditch_vise_HERKULES-XL-12_120125_2 (1)
REMS_ditch_vise_HERKULES-3B-12_120120
REMS_ditch_vise_HERKULES-3B-12_120120_1
Germany
REMS
Herkules

Pipe Stand

Supports pipe diameters 42–324 mm｜Adjustable height 510–910 mm / 690–1,180 m｜Max load capacity 450 kg｜V-head pipe stand｜Stainless steel ball rollers｜Foldable tripod design.
Stable support with smooth pipe rotation, ideal for cutting, roll grooving, threading, welding, and heavy-duty pipe installation work.
Product Features
  • Heavy-Duty Load Capacity: Supports up to 450 kg for demanding pipework applications.
  • Adjustable Height Design: Height can be adjusted according to jobsite and working requirements.
  • Precise Positioning Structure: Large adjustment screw and hardened steel locking ring provide secure positioning.
  • Stainless Steel Ball Rollers: Allow smoother pipe rotation, pushing, and pulling for improved efficiency.
  • Stable Tripod Structure: Provides firm support and reduces movement during operation.
  • Foldable Portable Design: Easy to transport, store, and move between jobsites.
  • Multi-Process Application: Suitable for pipe cutting, roll grooving, threading, welding, and pipe installation support.
Add to Inquiry
Tags
Show

Model Specifications

SKU
Model
Description
Weight
Remarks

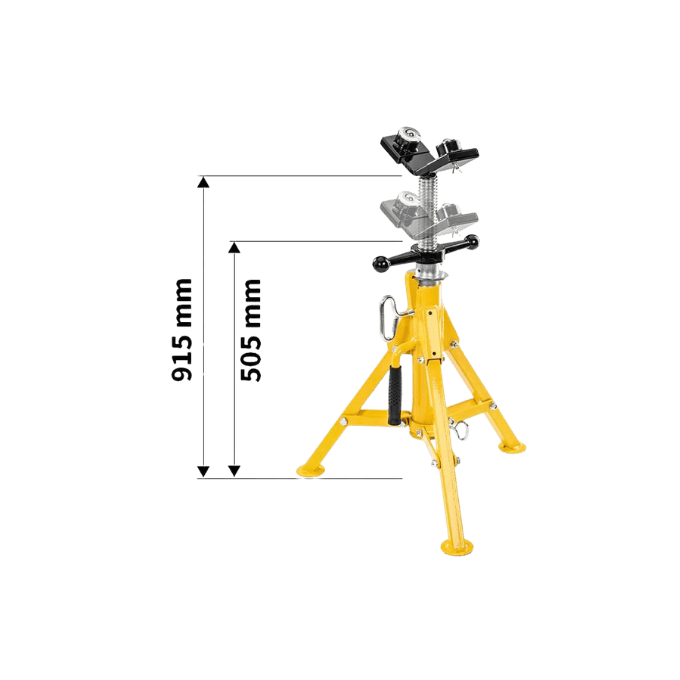

120125
Herkules XL
V-Head Pipe Stand with Ball Rollers: Adjustable height range of 505–910 mm, suitable for pipes up to 12 in. (324 mm), with a maximum load capacity of 450 kg.
9.5 kg

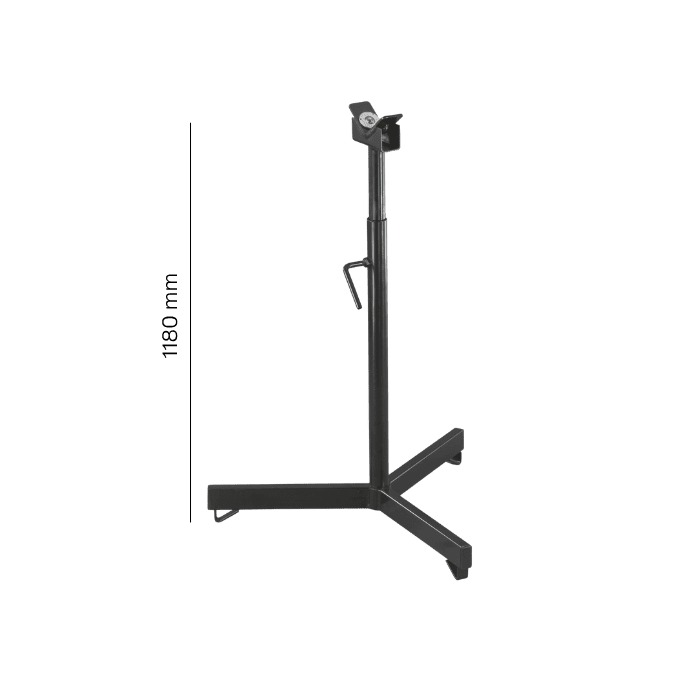

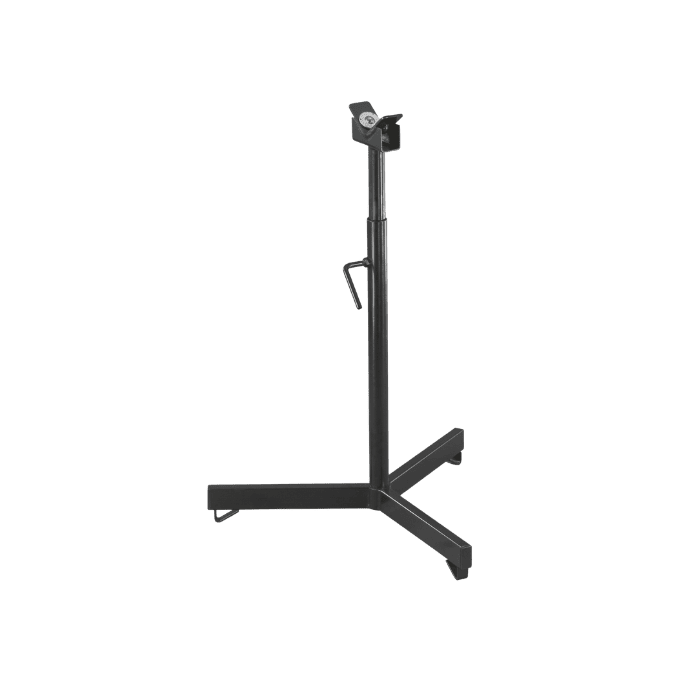

120120
Herkules 3B
V-Head Pipe Stand with Ball Rollers: Adjustable height range of 690–1,180 mm, suitable for pipes up to 6 in. (168 mm), with a maximum load capacity of 150 kg.
7.7 kg
56662
VJ-99
High V-head pipe stand: height adjustment 710–1,250 mm, pipe capacity up to 12" (300 mm).
10.4 kg
37997
BTH-9
Ball rollers: for V-head, 1 pair, pipe capacity up to 12" (300 mm).
2.3 kg

Product Details

Technical Data
Heavy-Duty Pipe Support Stand｜Support and Positioning for Large-Diameter Pipe Work
This heavy-duty pipe support stand is suitable for Ø 1/8"–12" pipes, approximately 6–324 mm. The support height can be adjusted from 510 to 910 mm, with a maximum load capacity of 450 kg. It is suitable for roll grooving, cutting, threading, and welding work, helping provide stable pipe support on site, reduce pipe movement, and improve jobsite safety and processing accuracy.
Pipe Capacity
Ø 1/8"–12" (approx. 6–324 mm)
Height Adjustment Range
510–910 mm
Load Capacity
450 kg
Main Applications
Roll grooving, cutting, threading, and welding work
Product Positioning
Heavy-duty pipe support, positioning, and on-site processing support equipment
For large-diameter and heavy pipe work, support stability directly affects processing quality

Without stable support, roll grooving, cutting, threading, and welding work may be affected by pipe movement, off-center positioning, unstable cutting, or poor welding alignment. With 450 kg load capacity and adjustable height, this pipe stand helps create a stable processing baseline on site and reduces uncertainty from temporary support or manual pipe holding.

Features
Product Features
Designed around high load capacity, adjustable height, large-diameter pipe support, and multi-process jobsite assistance, this stand is suitable for professional pipework, industrial maintenance, and construction-site applications.
450 kg Load Capacity

Supports large or heavy pipes and is suitable for industrial-grade pipe processing and on-site construction work.

Adjustable Height

The height can be adjusted from 510 to 910 mm to match different machines and working positions.

Supports up to 12" Pipes

Suitable for large-diameter pipework and heavy-duty piping applications, helping keep pipes stable on site.

Roll Grooving Support

Provides stable pipe support to help maintain pipe level and alignment during roll grooving work.

Cutting and Threading Support

Suitable for pipe cutting and threading processes, reducing pipe movement and improving processing stability.

Welding Positioning Support

Can be used for pipe positioning and support before welding, helping improve alignment stability and jobsite safety.

Applications
Applications
Suitable for pipe installation, roll grooving, cutting, threading, welding, industrial maintenance, construction work, and large-scale piping projects, especially where stable support for large-diameter or heavy pipes is required.
Roll Grooving Work

Suitable for fire protection, HVAC, and MEP piping work, helping keep pipes stable during grooving.

Cutting and Threading

Can be used together with pipe cutters and threading machines to provide stable pipe support.

Welding and Installation

Suitable for pipe welding, positioning, installation, and large-scale piping construction sites.
