REMS Python Oil-Hydraulic Pipe Bender
Home- Products
- HVAC Tools & Equipment
- Manual Tube Bender
- Oil-Hydraulic Pipe Bender
Suitable for EN 10255 steel pipes Ø ⅜"–2" and multilayer composite tubes Ø 32–75 mm, it is ideal for plumbing, heating, mechanical, and industrial piping applications.
Product Features
- Bending capacity up to Ø 2"／75 mm
- Oil-hydraulic bending operation
- Accurate bending up to 90°
- For steel pipes and composite tubes
- One drive unit for the full working range
- German professional tool
Tags
Show
Model Specifications
Product Details
HYDRAULIC PIPE BENDER
REMS Python｜Hydraulic Pipe Bender

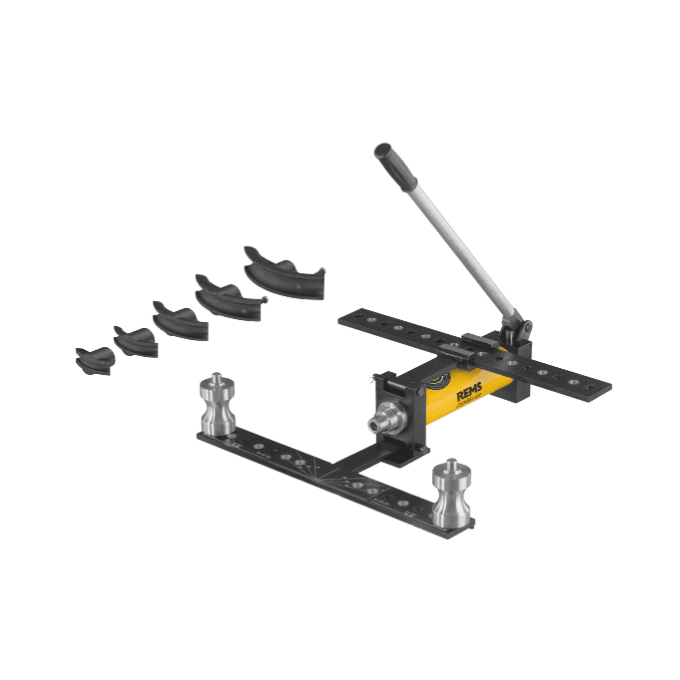

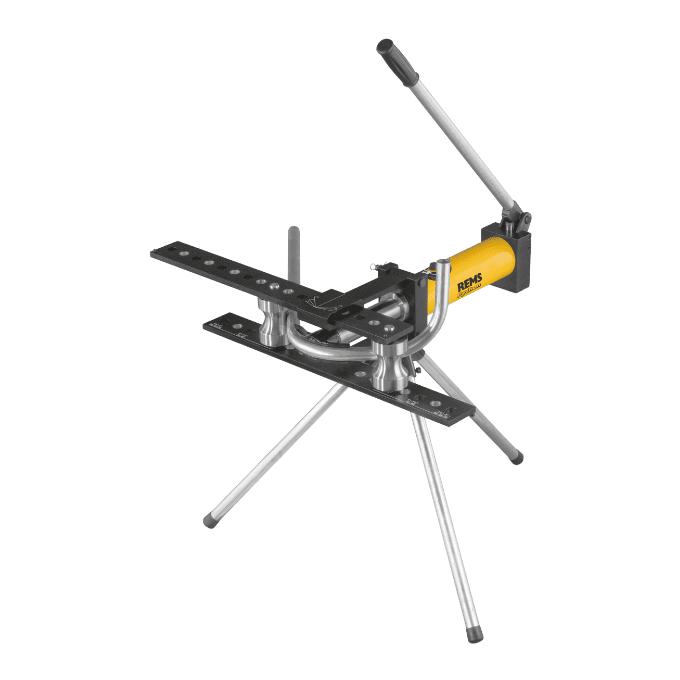

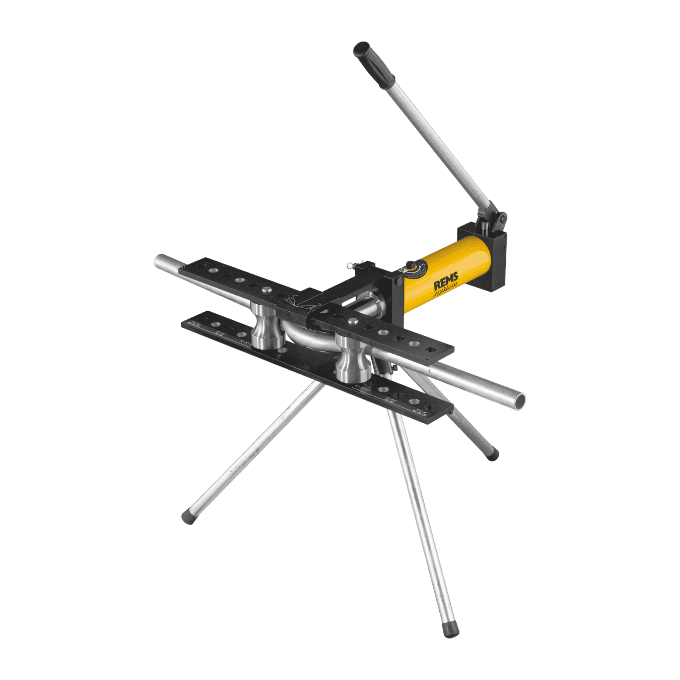

REMS Python is a robust and durable hydraulic pipe bender designed for accurate pipe bending up to 90°. It is suitable for EN 10255 steel pipes Ø ⅜"–2" and composite pipes for press fitting systems Ø 32–75 mm.
REMS Python features a closed, maintenance-free hydraulic system. With two roller supports and two rollers, the tool forms a closed bending frame that improves rigidity and bending accuracy. The upper roller support can be opened for easy pipe insertion and removal. Pipe diameter markings and a 0–90° angle scale support fast and precise operation on site.
This machine is suitable for metalworking, sanitary installation, HVAC installation, mechanical equipment, and industrial piping projects. With one bending unit, it covers a working range up to Ø 2" / 75 mm, helping reduce tool and accessory management complexity. Direct pipe bending can reduce the number of elbows, fittings, welded joints, and press connections, helping save materials and installation time while improving piping safety.
SPECIFICATIONS
Technical Specifications
Product Type
Hydraulic pipe bender
Max. Bending Angle
90°
Steel Pipe Range
EN 10255 steel pipes Ø ⅜"–2"
Composite Pipe Range
Composite pipes for press fitting systems Ø 32–75 mm
Hydraulic System
Closed, maintenance-free hydraulic system
Angle Control
0–90° angle scale
FEATURES
Product Features
Bending Capacity up to Ø 2" / 75 mm
Suitable for EN 10255 steel pipes Ø ⅜"–2" and composite pipes for press fitting systems Ø 32–75 mm.
Effort-Saving Hydraulic Operation
The manual hydraulic pump and ergonomic lever provide stable pushing force while reducing operator effort.
Closed Bending Frame
Two roller supports and two rollers create a rigid bending structure for improved bending accuracy.
Maintenance-Free Hydraulic System
The closed hydraulic system is robust, durable, and suitable for long-term jobsite use.
Precise Angle Control
The 0–90° angle scale helps users bend pipes accurately to the required angle.
Multi-Plane Bending
Suitable for offset bends, floor bends, and pipe layouts across different planes.
Reduced Use of Fittings
Direct pipe bending can reduce elbows, fittings, welded joints, and press connections, helping save materials, inventory, and installation time.
Quick Change of Formers and Rollers
The insert-type system allows quick replacement of bending formers and rollers for improved jobsite efficiency.
APPLICATIONS
Applications
Sanitary and Building Piping
Suitable for bending steel pipes and composite pipes on site while reducing the need for elbows and fittings.
HVAC Installation
Suitable for HVAC pipe layouts, offset bends, floor bends, and on-site bending requirements.
Mechanical and Industrial Piping
Designed for equipment piping, industrial pipelines, and professional multi-plane pipe layouts.
