REMS-Electric-Soldering-Unit-Contact-2000

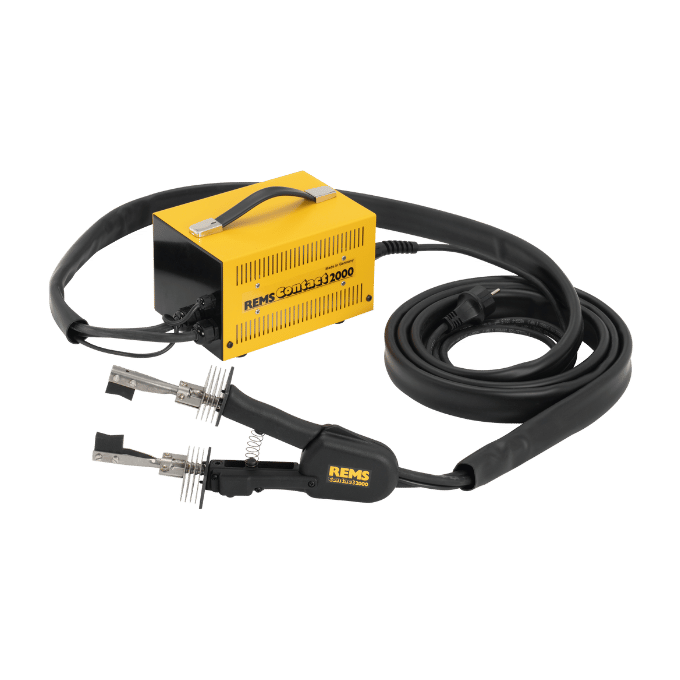

REMS_electric_soldering_unit_contact_2000_164011
REMS_electric_soldering_unit_contact_2000_164011_0.
Germany
REMS

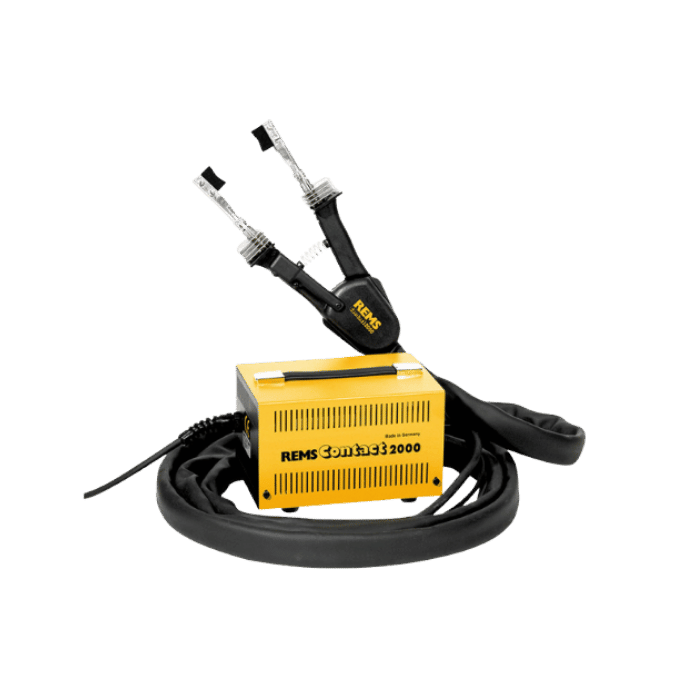

Contact 2000

Electric Soldering Unit

Supports pipe sizes 6–54 mm｜Flameless electric soldering｜2000W high soldering heat output｜Maximum temperature 900°C｜Approx. 18 seconds for 18 mm pipe.
Lightweight, durable, and fast, ideal for jobsites, maintenance work, and high-efficiency soft soldering.
Product Features
  • Fast Flameless Soldering: Completes soldering without open flame for safer and more efficient operation.
  • 2000W High Heat Output: Provides stable and powerful soldering performance for various jobsite needs.
  • 18-Second Fast Operation: Completes soldering on 18 mm pipe in approx. 18 seconds.
  • Lightweight and Durable Design: Rugged and portable body for easy jobsite movement and operation.
  • Flexible Working Range: Includes 4 m cable and highly flexible hose for greater working convenience.
  • Ideal for Jobsite Repair: Short soldering time makes it suitable for urgent repair and efficient installation work.
Add to Inquiry
Tags
Show
＃Soft & Hard Copper Tubes ＃1 5/8" ＃1 3/8" ＃1 1/8" ＃1 1/4" ＃7/8" ＃1/4" ＃1 1/2" ＃2" ＃5/8" ＃3/8" ＃Annealed Brass Tube ＃1" ＃3/4" ＃1/2"

Model Specifications

SKU
Model
Description
Weight
Remarks
164011
Contact 2000
110V / 60Hz, 24V, soldering tongs with 4 m cable
12.6 kg
164110
Carbon brush electrode head with handle, 2 pcs
0.09 kg
164111
Carbon brush electrode head, 2 pcs
0.02 kg
164115
Connecting rod electrode, 2 pcs
0.04 kg
164250
Outer case
6.51 kg

Product Details

Technical Data
Product Specifications
REMS Contact 2000 electric soldering unit for soft soldering pipes from 6–54 mm. With 2000W rated power and a maximum temperature of 900°C, it provides strong heating performance for construction sites, renovation, repair work, and multi-size soft soldering applications.
Applicable pipe size
Soft soldering pipes 1/4" ~ 2 1/8" (6–54 mm)
Maximum temperature
900°C (1650°F)
Rated power
2000W, providing strong soldering heat output
Dimensions
L 210 × W 150 × H 140 mm
Main use
Copper pipe soft soldering, construction sites, renovation, repair, multi-size soldering
High-Power Electric Soft Soldering for Multi-Size Jobsite Work
The 2000W electric heating output supports a wider range of soft soldering applications, making it suitable for fast heating, stable soldering, and worksites where reducing open-flame concerns is important.

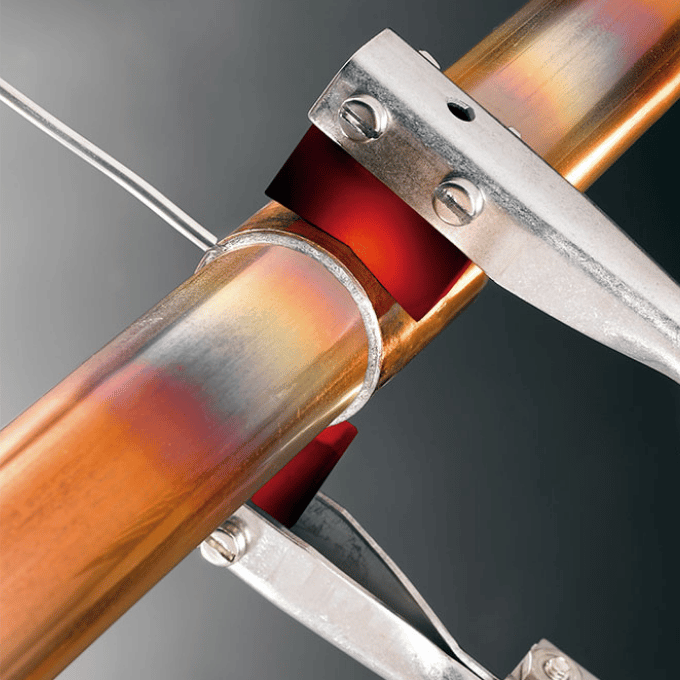

REMS Contact 2000 electric soldering unit
Features
Product Features
Designed around high-power electric heating, wider pipe-size soldering capacity, portable jobsite use, and stable heating performance for professional pipe installation and repair work.
2000W Strong Heat Output
Rated power of 2000W provides stable and sufficient soldering heat, improving soft soldering efficiency on site.
Up to 900°C
Maximum temperature reaches 900°C, suitable for soft soldering work within the 6–54 mm pipe range.
Multi-Size Soft Soldering
Applicable to a wide range of pipe sizes, providing flexibility for plumbing, HVAC, and repair applications.
Suitable for On-Site Use
Compact body dimensions make it practical for construction sites, renovation work, and repair jobs.
Applications
Applications
Suitable for construction sites, renovation projects, equipment repair, and multi-size soft soldering applications where fast heating and stable soldering quality are required.
Construction Site and Field Use
Suitable for soft soldering work during construction, renovation, and repair jobs, improving on-site work efficiency.
Multi-Size Soft Soldering
Can be used for soft soldering requirements within the 6–54 mm pipe range, offering greater jobsite flexibility.
Confined-Space Work
Compact design makes it suitable for fast soldering and repair work in limited spaces.
Repair and Renovation Work
Suitable for soft soldering in existing pipe repair, equipment upgrades, and localized modification work.

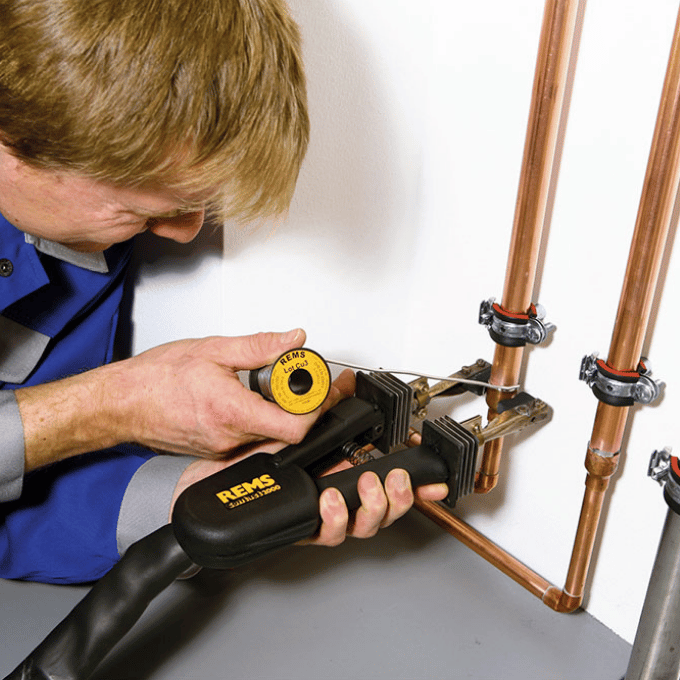

REMS Contact 2000 soldering application
