KS-Mini-Tube-Cutter-3-22

KS_mini_tube_cutter_3-22_113240K
Taiwan
KS
3-22

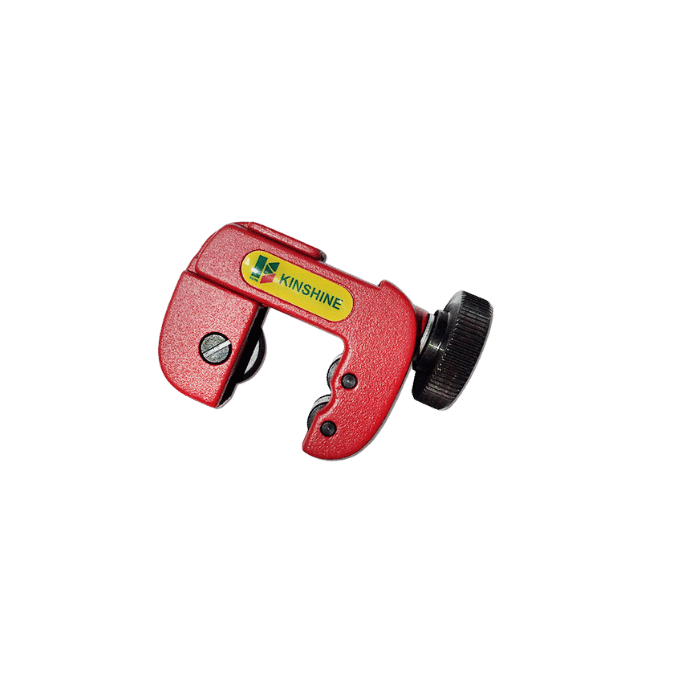

Mini Tube Cutter

Suitable for cutting copper, brass, aluminum, and thin-wall stainless steel pipes from 1/8"～7/8"  (3～22 mm)｜Wall thickness ≤4 mm｜Compact body｜Ergonomic knob｜Precision roller guide.
Designed for confined-space pipe cutting, delivering stable and accurate cuts for jobsite installation and maintenance.
Product Features
  • Confined-Space Application: Compact body design allows pipe cutting in limited working areas.
  • Ergonomic Knob: Easy and comfortable operation with improved tool service life.
  • Overfeed Prevention Design: Limits spindle feed to prevent excessive contact between the cutter wheel and rollers.
  • Hardened Roller Structure: Improves durability and long-term cutting stability.
  • Precise Square Cutting: Wide roller design keeps the cutter wheel properly aligned for more accurate cuts.
Add to Inquiry
Tags
Show
＃7/8" ＃Annealed Brass Tube ＃1/4" ＃5/8" ＃3/8" ＃1/8" ＃Aluminum Tube ＃Soft & Hard Copper Tubes ＃Stainless Steel Tube ＃3/4" ＃1/2"

Model Specifications

SKU
Model
Description
Weight
Remarks
113240K
3-22
1/8"–7/8" (3–22 mm), wall thickness ≤4 mm.
0.15 kg

Product Details

Technical Data
Product Specifications
The mini thin-wall tube cutter is suitable for 1/8" to 7/8" tubes and can cut copper, brass, aluminium, and thin-walled stainless steel tubes. Its compact body is especially useful in narrow spaces, wall-side areas, corners, and hard-to-reach positions, helping installers complete small-diameter tube cutting quickly on site.
Cutting Capacity
1/8"～7/8"  (3～22 mm)
Applicable Materials
Copper, brass, aluminium, thin-walled stainless steel tubes
Tool Type
Mini thin-wall tube cutter for narrow-space work
Main Use
Small-diameter tube cutting, field repair, restricted-space installation
Application Fields
HVAC, refrigeration, plumbing, field repair, and equipment-side piping work
Precise Tube Cutting in Narrow Spaces

The compact body, precise feed control, and wide roller design allow stable cutting of small-diameter thin metal tubes in limited spaces, improving jobsite convenience and cutting quality.

Features
Product Features
Built around compact design, ergonomic operation, precise feed control, and durable roller support, making it suitable for long-term field maintenance and professional piping work.
Compact Design

Especially suitable for narrow spaces, allowing small-diameter tube cutting in limited working positions.

Ergonomic Knob

The easy-to-operate knob improves handling and feed control while helping extend tool service life.

Controlled Feed Range

Helps prevent the cutting wheel from over-contacting the rollers, reducing wear from overfeeding and supporting stable cutting.

Hardened Roller Design

Hardened rollers provide long-term durability and stable support for frequent jobsite use.

Precise Square Cutting

The wide roller design helps keep the cutting wheel aligned for a cleaner and more stable cut.

Multiple Thin Metal Tubes

Suitable for copper, brass, aluminium, and thin-walled stainless steel tubes, covering common HVAC, refrigeration, and repair needs.

Applications
Applications
Suitable for cutting copper, brass, aluminium, and thin-walled stainless steel tubes in narrow spaces, especially for HVAC, refrigeration, plumbing, and field repair work.
Narrow-Space Cutting

Suitable for wall-side areas, corners, equipment surroundings, or work positions with limited operating space.

HVAC and Refrigeration Piping

Can be used for cutting refrigerant copper tubes, aluminium tubes, and small-diameter thin metal tubes.

Field Repair Work

Suitable for on-site pipe repair, partial replacement, and modification work while maintaining stable cutting performance over time.
