KS-Manual-Tubing-Cutter-3-series

KS_tube_cutter_113300K_1
KS_tube_cutter_113300K
Taiwan
KS
3系列

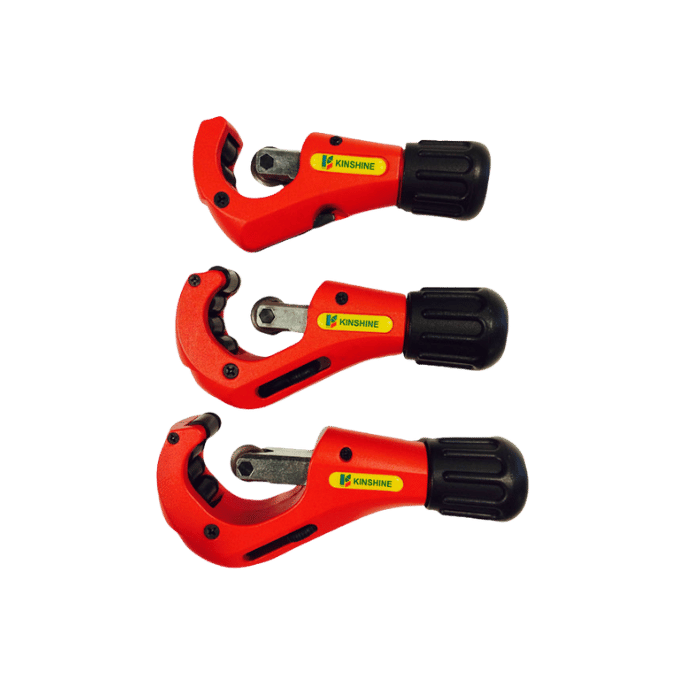

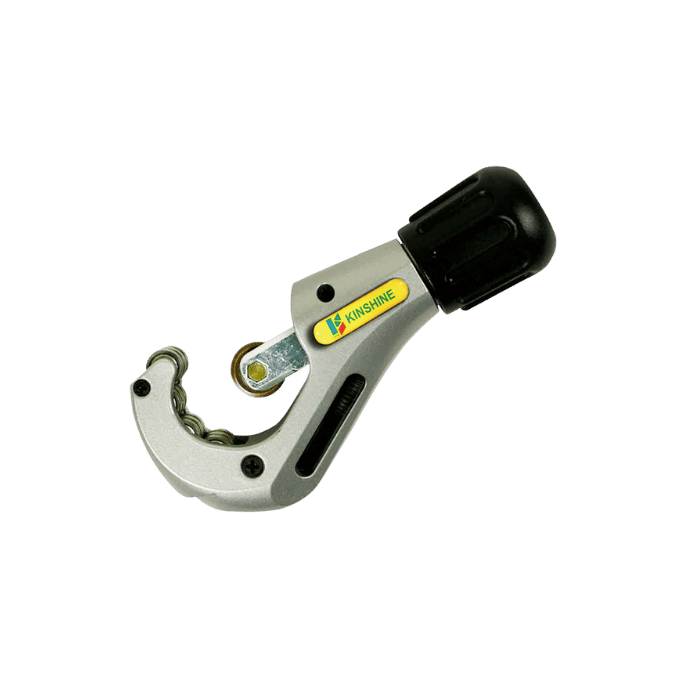

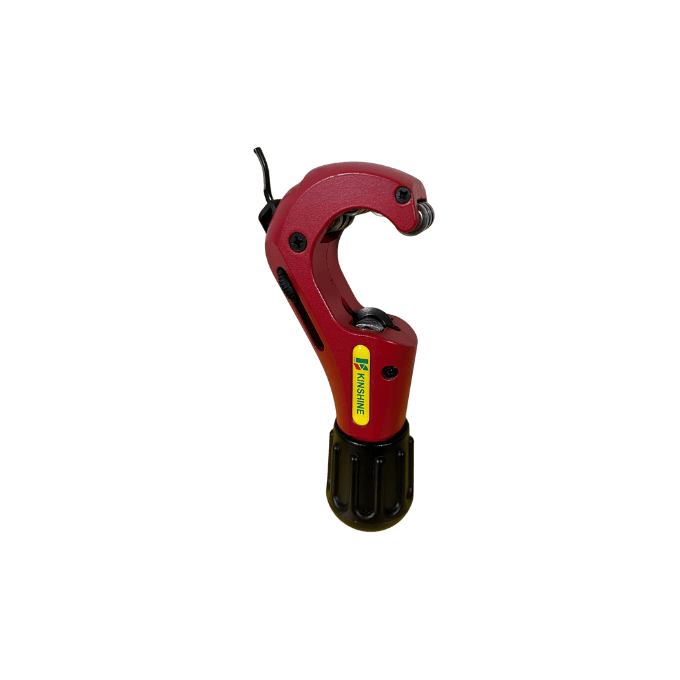

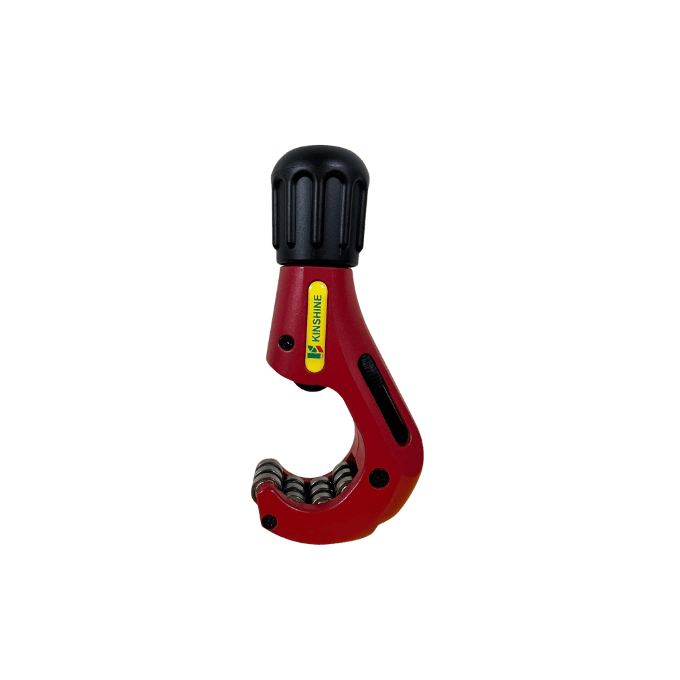

Manual Tubing Cutter

Cutting capacity 1/8"–1 3/4" (3–42 mm)｜Multiple sizes available｜Telescopic spindle｜Hardened rollers｜Bearing-mounted cutter wheel｜Telescopic internal reamer.
Provides smooth, low-effort feed and accurate square cutting, ideal for demanding jobsite pipe cutting work.
Product Features
  • Lightweight and Durable Design: Suitable for demanding work environments with easy handling.
  • Ergonomic Knob: Smooth, low-effort operation for better comfort and longer tool life.
  • Overfeed Prevention Design: Limits spindle feed to prevent the cutter wheel from contacting the rollers.
  • Telescopic Internal Reamer: Helps remove internal burrs more conveniently.
  • Rugged Telescopic Spindle: Long spindle guide with 4 hardened rollers ensures stable cutting.
  • Precise Square Cutting: Keeps the pipe aligned for cleaner and more accurate cuts.
  • Bearing-Mounted Cutter Wheel: Bearing-supported lower rollers and cutter spindle reduce cutting resistance for smoother operation.
Add to Inquiry
Tags
Show
＃1 3/4" ＃1/8" ＃Stainless Steel Tube

Model Specifications

SKU
Model
Description
Weight
Remarks
113300K
3-30 K
1/8"–1 1/4" (3–30 mm), wall thickness s≤3 mm
0.40 kg
Cutter wheel 113210K.
113350K
3-35 K
1/8-1 3/8" (3-35mm), wall thickness s≤3 mm
0.60 kg
Cutter wheel 113210K.
113320K
3-42 K
1/8-1 5/8" (3-42mm), wall thickness s≤3 mm
0.70 kg
Cutter wheel 113210K.
113350BK
3-35 BK
1/8-1 3/8" (3-35mm), wall thickness s≤3 mm
0.60kg
Bearing-type cutter wheel 113210BK.
113320BK
3-42 BK
1/8-1 5/8" (3-42mm), wall thickness s≤3 mm
0.65 kg
Bearing-type cutter wheel 113210BK.

Product Details

Technical Data
Product Specifications
The professional thin-wall tube cutter is available in multiple sizes, covering cutting capacities from 1/8" to 1 3/4" / 3–42 mm. Its compact design is suitable for difficult jobsite conditions, while the ergonomic knob, hardened rollers, and telescopic internal reamer provide stable, effortless, and precise square cutting performance.
Cutting Capacity
1/8"–1 3/4" / 3–42 mm, multiple sizes available
Operation Design
Compact body with ergonomic knob for long-duration operation
Feed Protection
Limited spindle feed range to prevent the cutting wheel from contacting the rollers
Internal Reamer
Hardened telescopic internal reamer for easier deburring operation

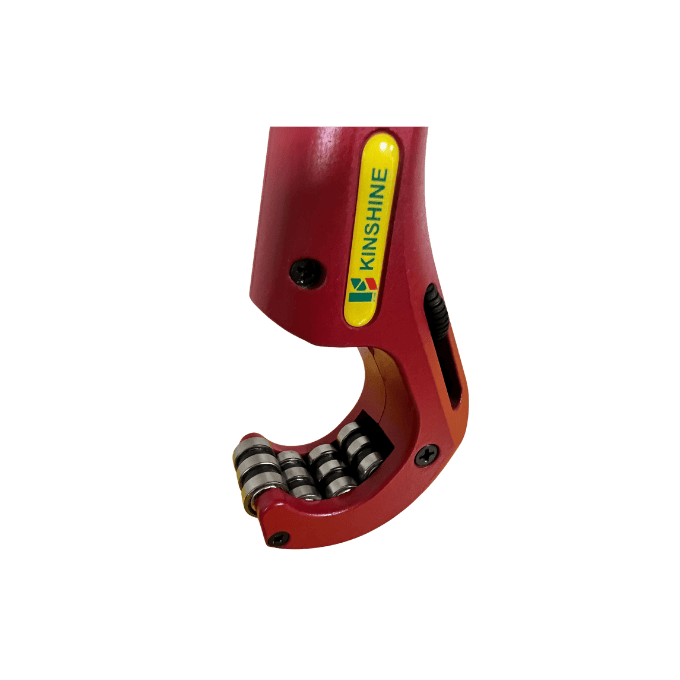

Roller Structure
4 hardened rollers to keep the tube parallel and cutting stable
Cutter Design
Bearing-mounted cutter for reduced cutting resistance and smoother operation
Precise Square Cutting with Effort-Saving Durability

The long spindle guide, durable sleeve-guided telescopic spindle, and hardened roller structure keep the tube parallel during feed movement, delivering more stable cutting and smoother advance or return operation for jobsites requiring precise cuts and long service life.

Features
Product Features
Built around compact handling, effort-saving operation, precision, and durability, making it suitable for tube cutting, deburring, and pipe-end preparation before installation.
Compact and Easy to Operate

The compact body is suitable for difficult working conditions, while the ergonomic knob improves handling comfort.

Stable Cutting

The long spindle guide and 4 hardened rollers help keep the tube parallel and maintain cutting stability.

Square Cutting

The durable sleeve-guided telescopic spindle supports precise, clean, and square cuts.

Bearing-Mounted Cutter

The cutter shaft bearing and base rollers reduce cutting resistance for faster, easier operation.

Protected Feed Range

The limited spindle feed range prevents the cutting wheel from contacting the rollers, reducing unnecessary wear.

Telescopic Deburring

The hardened telescopic internal reamer makes internal deburring and pre-installation preparation more convenient.

Applications
Applications
Suitable for thin-wall tube cutting, tube deburring, pipe installation, maintenance, plumbing work, HVAC work, and pipe-end preparation on general jobsites.
Piping Installation

Suitable for tube cutting and pipe-end preparation before installation, helping improve installation quality.

Maintenance Work

Can be used for existing pipe repair, replacement, and on-site cutting work.

Plumbing Work

Suitable for thin-wall tube cutting and deburring in plumbing installation work.

HVAC Work

Can be used for HVAC piping installation and on-site tube cutting preparation.
