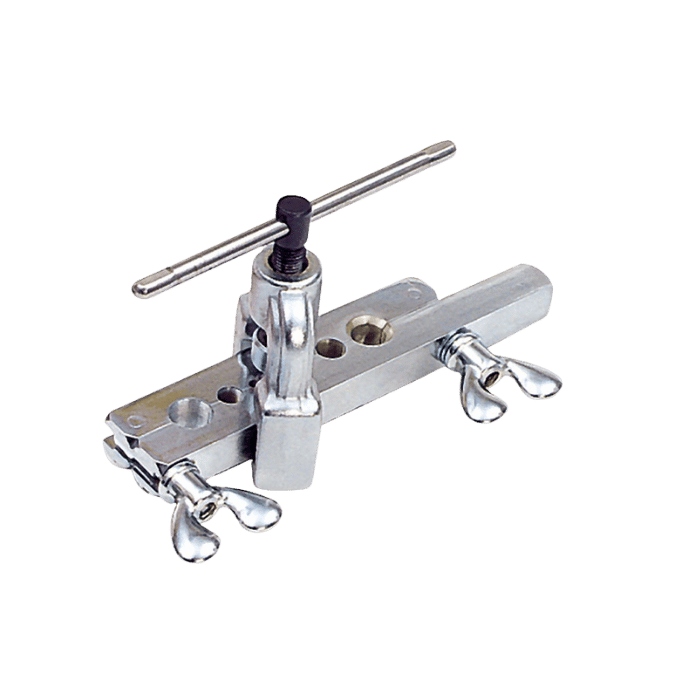

Imperial-Flaring-Kit-195FC
Suitable for soft copper, aluminum, and brass pipes from 3/16"–5/8"｜45° flaring｜Pipe cutting function｜Hardened steel cone｜Concealed screw feed.
Simple, low-effort, and durable, ideal for air-conditioning, refrigeration, and general piping maintenance.
Simple, low-effort, and durable, ideal for air-conditioning, refrigeration, and general piping maintenance.
Product Features
- Multi-Material Application: Suitable for soft copper, aluminum, and brass pipes.
- 45° Flaring: Creates standard 45° flares for common piping applications.
- Pipe Cutting Function: Supports both flaring and pipe cutting for greater tool versatility.
- Hardened Steel Cone: Improves durability and forming stability.
- High-Strength Plated Body: Plated clamp base and body provide better durability and wear resistance.
- Concealed Screw Feed: Reduces required turning space and makes operation easier.
Model Specifications
Product Details
Technical Data
Product Specifications
KS 30° angled press jaws are designed for special installation environments such as wall areas, narrow spaces, and post-press inspection or repair work. The 30° angled design improves operating flexibility. Available sizes include 13SU, 20SU, and 25SU, and they can be used with most standard press tool models on the market.
Angle
30°
Available Sizes
13SU, 20SU, 25SU
Compatible Tools
Most standard press tool models on the market
Main Use
Narrow-space pressing, wall-side installation, and post-press inspection or repair work
Application Fields
Plumbing, HVAC, fire protection, piping work, and on-site installation
30° Angled Design for Better Narrow-Space Pressing Efficiency
Designed for difficult-to-access areas such as wall zones, corners, dense piping layouts, and post-press repair positions, helping installers complete pressing work more smoothly in restricted spaces.
Features
Product Features
Built around angled access and jobsite flexibility, suitable for positions where standard straight press jaws are difficult to insert or apply force.
Broad Compatibility
Compatible with most standard press tool models on the market, making it easy to extend existing tool systems.
30° Angled Operation
The angled design helps with wall-side, corner, and narrow-area pressing, improving on-site operating convenience.
Suitable for Tight Spaces
Designed for dense piping areas, restricted spaces, or positions requiring post-press inspection or repair.
Stable Pressing Performance
Provides stable and precise pressing results even in special angled working environments.
Applications
Applications
Suitable for wall-side piping, narrow spaces, dense pipe areas, post-press inspection and repair, plumbing piping, HVAC work, fire protection lines, and MEP installation.
Wall-Side and Corner Pressing
Suitable for wall areas, corners, or positions where standard press jaws are difficult to access.
Tight-Space Installation
Can be used in restricted spaces, dense piping layouts, or jobsite areas with limited pressing angles.
Post-Press Inspection and Repair
Suitable for existing pipe modification, additional work after pressing, and localized repair scenarios.
MEP and Piping Work
Can be used for special-angle pressing needs in plumbing, HVAC, fire protection, and MEP piping work.
