T-drill-Collaring-Machine-TD-series

Tdrill_T-D28_5330302
Finland
T-drill
TD系列

Collaring Machine

Branch forming capacity: 10 ~ 35 mm / 10 ~ 54 mm｜Main thin-wall pipe diameter: 15 ~ 76.1 mm / 15 ~ 108 mm｜220V / 60Hz.
Designed for T-branch forming on thin-wall pipes. No fittings, no pipe cutting, and only one brazed joint required, helping reduce cost, lower leakage risk, and improve jobsite efficiency.
Product Features
  • T-Branch Forming: Designed for forming T-branch outlets on thin-wall pipes, ideal for copper and thin-wall piping work.
  • Lightweight and Durable Structure: Made with high-strength composite materials for durability and easy handling.
  • Quiet and Low-Effort Operation: Stable force and quiet operation improve jobsite efficiency.
  • Lower Installation Cost: Reduces the need for extra fittings and high inventory costs.
  • No Pipe Cutting Required: Forms the branch directly on the main pipe, reducing steps and error risk.
  • Reduced Leakage Risk: Only one brazed joint is required, helping improve joint quality and reliability.
  • Improved Flow Performance: T-formed outlet design supports better flow efficiency.
Add to Inquiry
Tags
Show
＃1 5/8" ＃1 3/8" ＃7/8" ＃5/8" ＃1" ＃3/8" ＃3/4" ＃1/2"

Model Specifications

SKU
Model
Description
Weight
Remarks
5330302
T-D28
220V / 60Hz, capacity: 10–35 mm
5330202
T-D55
220V / 60Hz, capacity: 10–54 mm
5090294
ND-54
Pipe end half-rounding and positioning tool
5310399
10mm
3/8" (9.53 mm) branch pulling head set
5310400
12mm
1/2" (12.7 mm) branch pulling head set
5310401
15mm
5/8" (15.88 mm) branch pulling head set
5310402
18mm
3/4" (18 mm) branch pulling head set
5310403
22mm
7/8" (22.22 mm) branch pulling head set
5310404
28mm
1 1/8" (28.58 mm) branch pulling head set
5310411
35mm
1 3/8" (35 mm) branch pulling head set
5310412
42mm
1 5/8" (42 mm) branch pulling head set

Product Details

Technical Data
Product Capacity

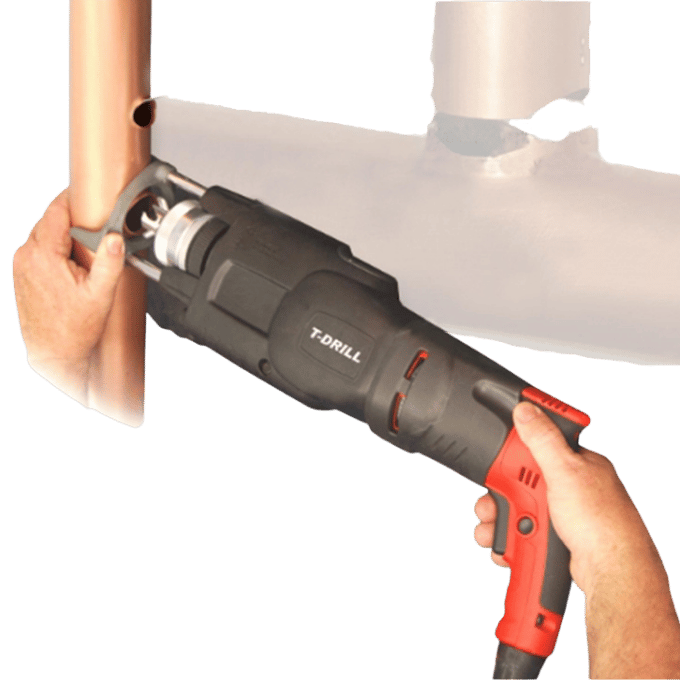

Portable electric T-branch forming machine designed for creating branch openings on thin-wall tubes. It forms T-branches directly on the main tube, helping reduce fittings, inventory, and installation time.

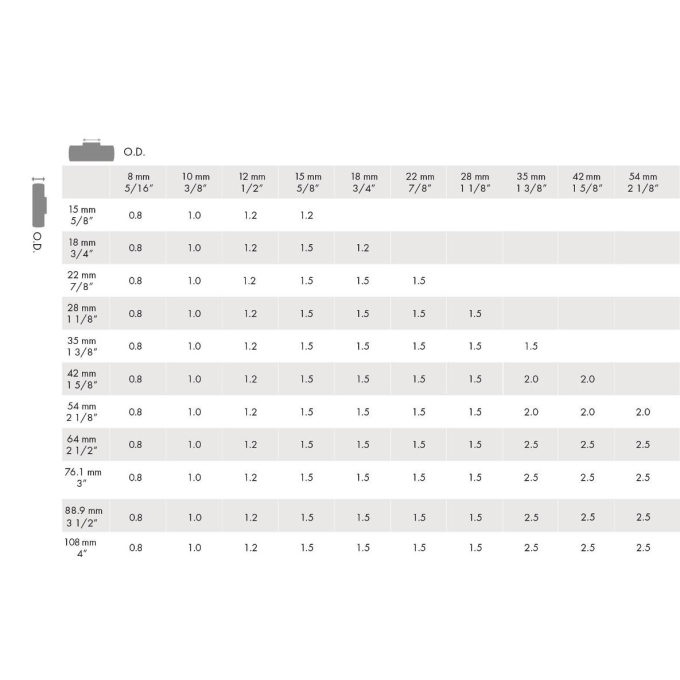

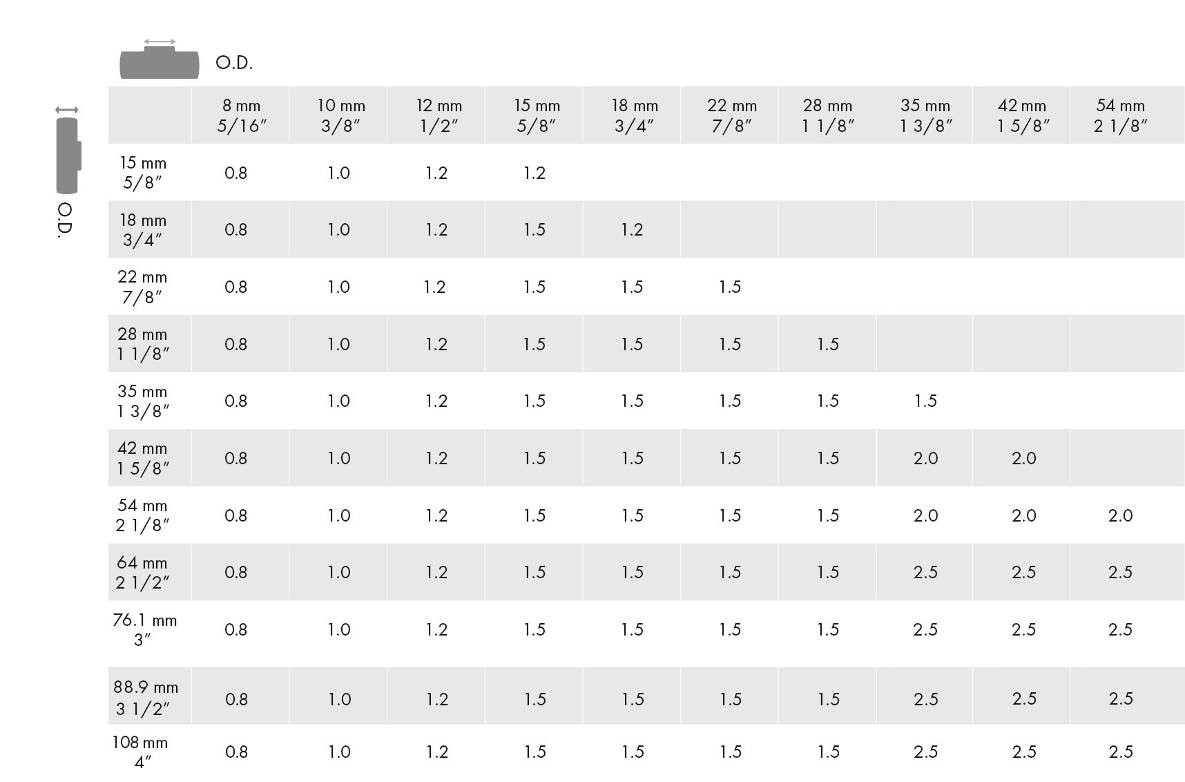

Branch tube capacity
10 ~ 35 mm / 10 ~ 54 mm
Main thin-wall tube diameter
15 ~ 76.1 mm / 15 ~ 108 mm
Tool type
Portable electric branch forming machine
Processing purpose
Thin-wall tube T-branch opening formation
Structure type
Professional T-drill type tool
Installation benefits
Fewer fittings, lower inventory, fewer brazed joints, reduced leakage risk
Fast T-Branch Formation on Thin-Wall Tubes
By forming the branch opening directly on the main tube, the tool reduces tube cutting and extra fitting requirements. Only one brazed joint is needed, helping reduce leakage risk and improve flow performance.
Features
Product Features
Designed around portable electric forming, lightweight durability, and reduced installation cost for professional T-branch work on thin-wall piping systems.
Designed for T-Branch Formation
Purpose-built for creating T-branch openings on thin-wall tubes in HVAC, refrigeration, and piping systems.
Portable Electric Operation
Portable electric design supports jobsite mobility and helps complete branch forming work quickly.
Durable and Lightweight Structure
Built with strong composite materials to provide good force, light handling, quiet operation, and long-term durability.
Reduces Fittings and Inventory
Direct branch formation reduces the need for additional fittings and helps lower inventory pressure.
Lower Leakage Risk
Reduces tube cutting and brazed joint count, helping lower potential leakage points and maintenance risk.
Improved Flow and Quality
Formed branch openings can help improve flow and deliver more consistent T-branch quality.
Applications
Applications
Suitable for T-branch formation on thin-wall tubes, HVAC and refrigeration piping, industrial piping, and field repair or modification work.
HVAC and Refrigeration Piping
Suitable for creating T-branch openings in HVAC and refrigeration piping systems.
Piping System Installation
Suitable for piping branch work and on-site installation where faster T-branch formation is required.
Field Repair and Modification
Suitable for factories, construction sites, and maintenance environments where branch points need to be added quickly.
