Suitable for pipe sizes 1/8"–2"｜Eco-friendly R-290 refrigerant｜Fast pipe freezing｜No need to shut down the piping system｜Quiet operation｜Portable design.
Suitable for steel, copper, and plastic pipes, ideal for fast water isolation during jobsite repair, maintenance, and emergency work.
Suitable for steel, copper, and plastic pipes, ideal for fast water isolation during jobsite repair, maintenance, and emergency work.
Product Features
- Fast Pipe Freezing: Freezes pipes up to 2" (60 mm); approx. 9 minutes for a 3/4" steel pipe.
- Eco-Friendly R-290 Refrigerant: CFC-free and suitable for modern environmentally conscious work.
- Portable Design: Approx. 23 kg compact body for easy movement in indoor and outdoor jobsites.
- Quiet and Stable Operation: Low-noise design with focused cooling for a more comfortable working environment.
- Suitable for Confined Spaces: Compact deep-freezing heads can be placed close to the pipe, ideal for niches and restricted areas.
- Supports Long Repair Work: High freezing capacity maintains stable freezing performance during extended maintenance.
- Quick Fixing Operation: Freezing heads can be secured with tightening straps, with no extra tools required.
- Multi-Size Application: Freezing heads support 1/4"–1" (15–35 mm) pipes and can be extended for pipe sizes up to 2" (60 mm).
Model Specifications
Product Details
Technical Data
Product Specifications

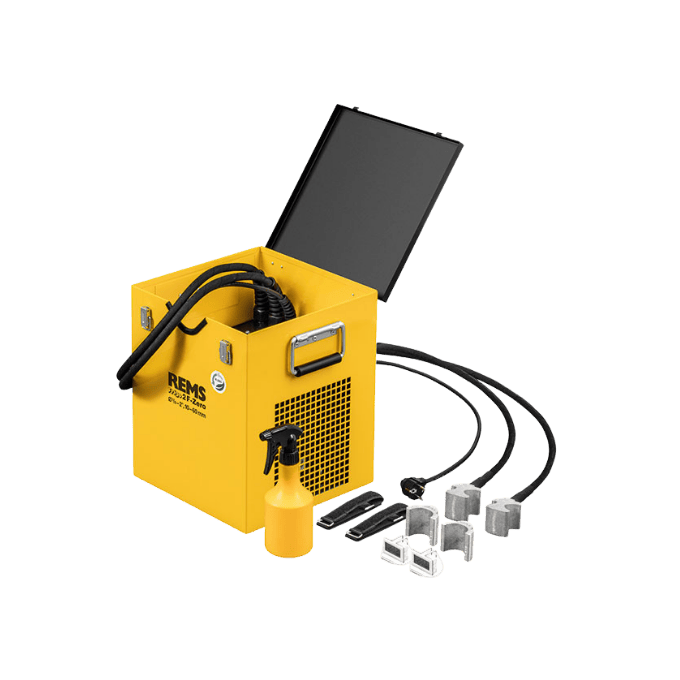

REMS Frigo 2 electric pipe freezing unit is suitable for 1/8" to 2" pipes. It quickly freezes the liquid inside the pipe to form an ice plug, enabling localized pipe repair, maintenance, and replacement without shutting down the entire system.
Pipe size range
1/8" ~ 2" (10–60 mm)
Refrigerant
R-290, CFC-free and environmentally friendly refrigerant
Applicable materials
Steel, copper, plastic and composite pipes
Main use
Pipe freezing, localized flow isolation, pipe repair, system maintenance
Localized Pipe Freezing with Less System Interruption

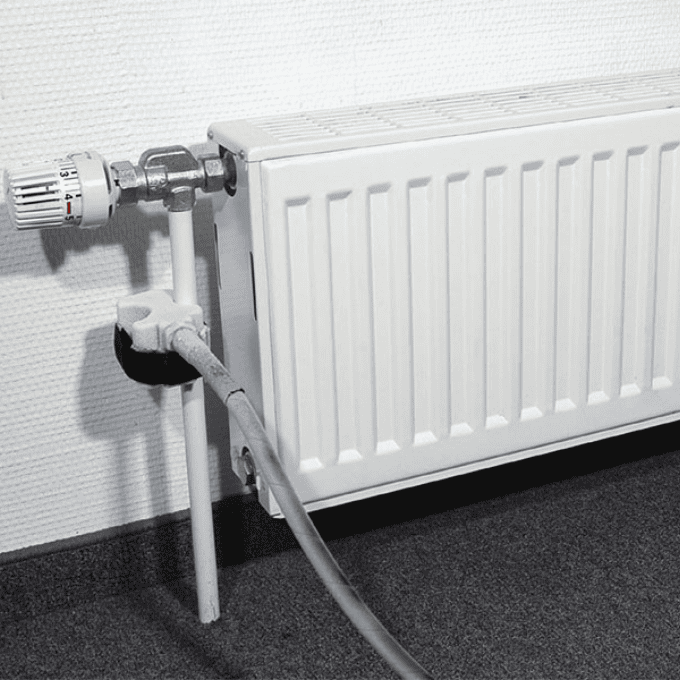

By freezing the liquid inside a selected pipe section to create an ice plug, it provides temporary flow isolation and reduces the need to shut down, drain, or stop the entire system.
Features
Product Features
Designed around electric pipe freezing, environmentally friendly refrigerant, multi-material compatibility, and localized flow isolation for residential, commercial, and industrial piping systems.
Fast Pipe Freezing

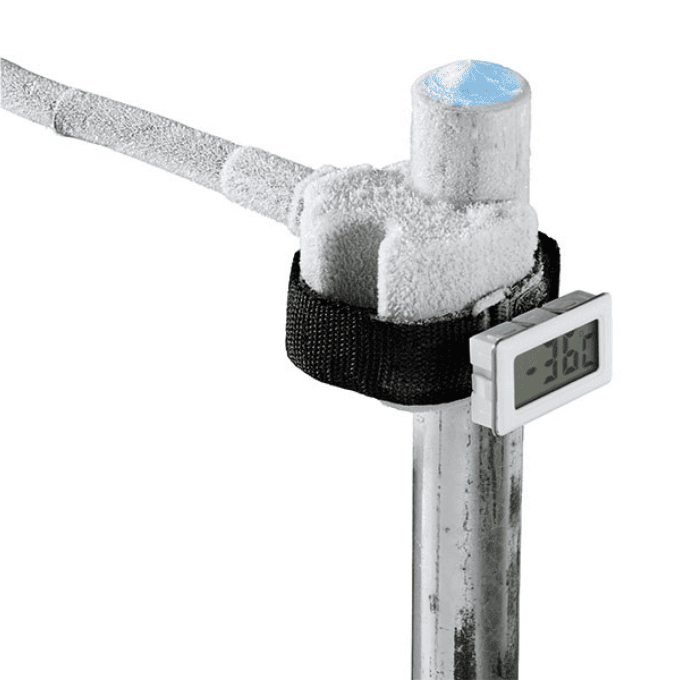

Quickly freezes the liquid inside the pipe to form an ice plug, creating localized flow isolation for repair work.
R-290 Eco-Friendly Refrigerant
Uses R-290 refrigerant, which is CFC-free and suitable for environmentally responsible jobsite work.
Multi-Material Compatibility
Suitable for steel, copper, plastic, and composite pipes, improving jobsite application flexibility.
No Need to Shut Down the Entire System
Allows localized freezing on the repair section, reducing the need for full system shutdown, water stoppage, or drainage.
Applications
Applications
Suitable for air-conditioning, refrigeration, HVAC, and pipe repair applications where localized pipe freezing is required in residential, commercial, or industrial facilities.
Pipe Repair and Maintenance
Suitable for localized repair, valve replacement, and pipe maintenance while reducing the need to drain long pipe sections or stop large areas.
Air-Conditioning and HVAC Systems
Can be used for air-conditioning, HVAC, and related piping system repair where stable localized working conditions are required.
Refrigeration Equipment
Suitable for freezing repair and maintenance work on refrigeration equipment and related piping systems.
Residential, Commercial, and Industrial Facilities
Applicable across different facilities, reducing the impact of pipe repair on water supply, operations, or equipment runtime.
