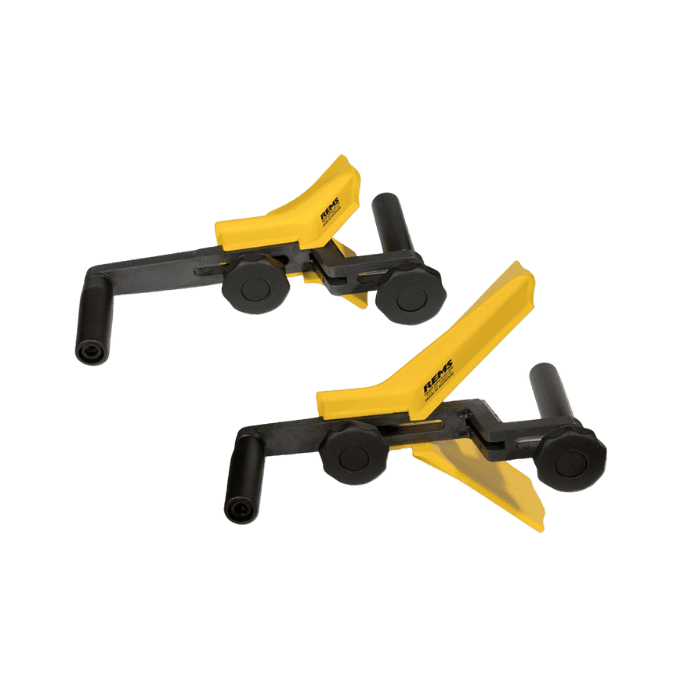

REMS-Chamfering-Tool-RAG-P-series

REMS_chamfering_tool_292110
Germany
REMS
RAG P系列

Chamfering Tool

Suitable for plastic pipes 3/4"–10"｜15° external chamfering｜Deburring function｜Replaceable blade｜For PVC / PE pipes.
Fast and clean chamfering improves socket fitting and joint quality, ideal for plumbing installation and jobsite piping work.
Product Features
  • Multi-Function Chamfering: Creates a 15° external chamfer and removes burrs for smoother pipe insertion.
  • Efficient Blade Design: Precision blade geometry delivers fast, low-effort, and clean chamfering.
  • Easy Size Adjustment: Adjustable for different pipe diameters and wall thicknesses.
  • Replaceable Blade: Easy maintenance, longer tool life, and lower consumable cost.
  • Lightweight and Portable: Compact design for jobsite use and frequent movement.
  • Stable Guiding System: Provides steady guidance for more accurate and consistent chamfering.
Add to Inquiry
Tags
Show
＃10" ＃Plastic Pipe ＃3/4"

Model Specifications

SKU
Model
Description
Weight
Remarks
292110
RAG P 16-110
Suitable for 3/4~4" (16-110mm)
0.89 kg
Cutting Wheel 292011
292210
RAG P 32-250
Suitable for 1¼"~10" (32-250mm)
1.62 kg
Cutting Wheel 292011

Product Details

Technical Data
Product Specifications
REMS RAG is a professional tool for trimming and chamfering plastic pipes, suitable for PVC, PE, and similar plastic pipe materials. It is used for pipe-end preparation before connection, helping improve the smoothness of insertion, socketing, and subsequent installation work.
Applicable Materials
PVC, PE, and similar plastic pipes
Application Use
Plastic pipe trimming and chamfering
Pipe Size
3/4"–10" / 16–250 mm
Pipe Wall Thickness
≤ PN 16
Main Use
Pipe-end trimming, deburring, chamfering, and installation preparation
Pipe-End Trimming and Chamfering for Installation Preparation

Helps remove burrs and create a chamfered pipe end, giving plastic pipes a more stable end surface before socketing, insertion, or connection.

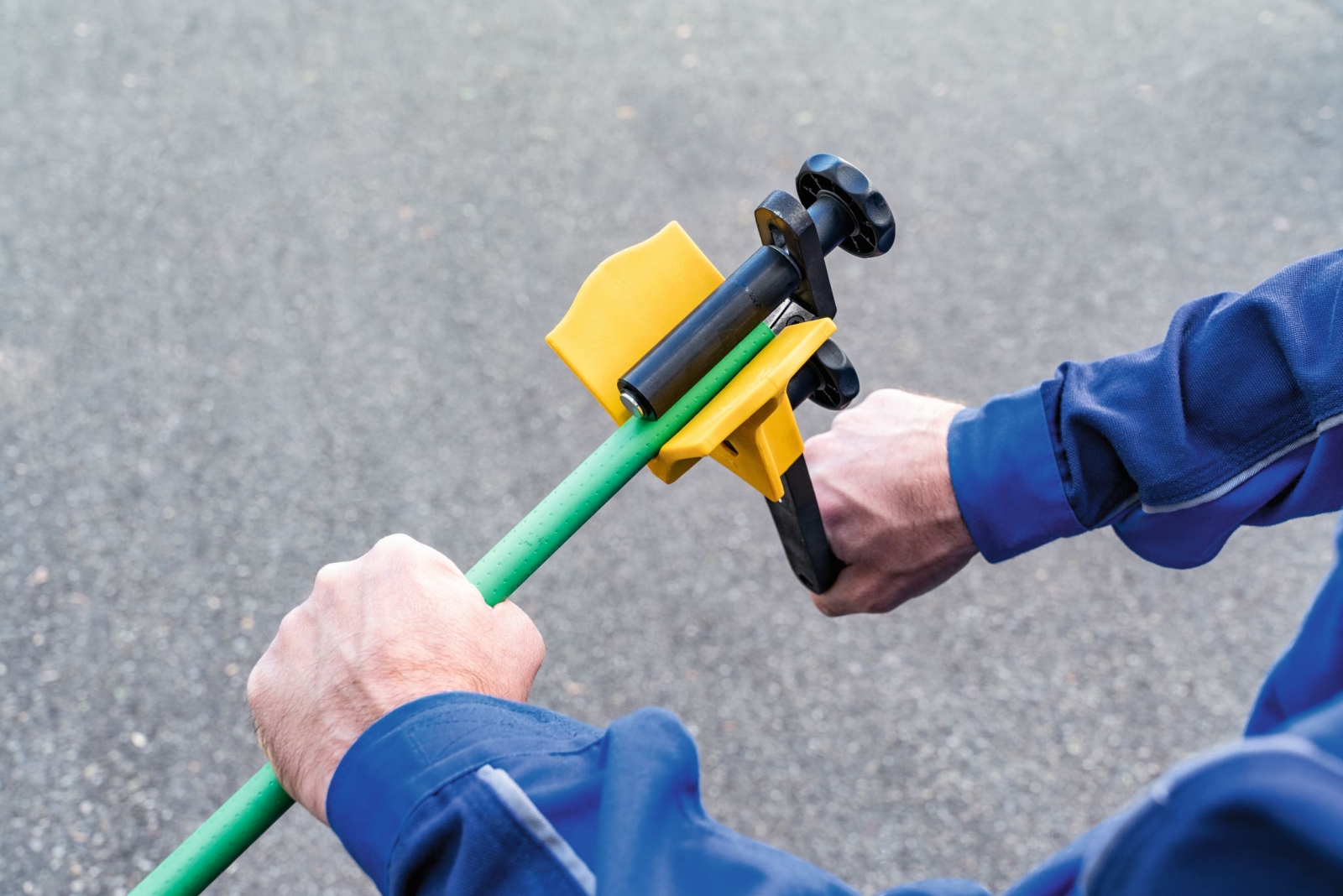

REMS RAG Plastic Pipe Chamfering Tool

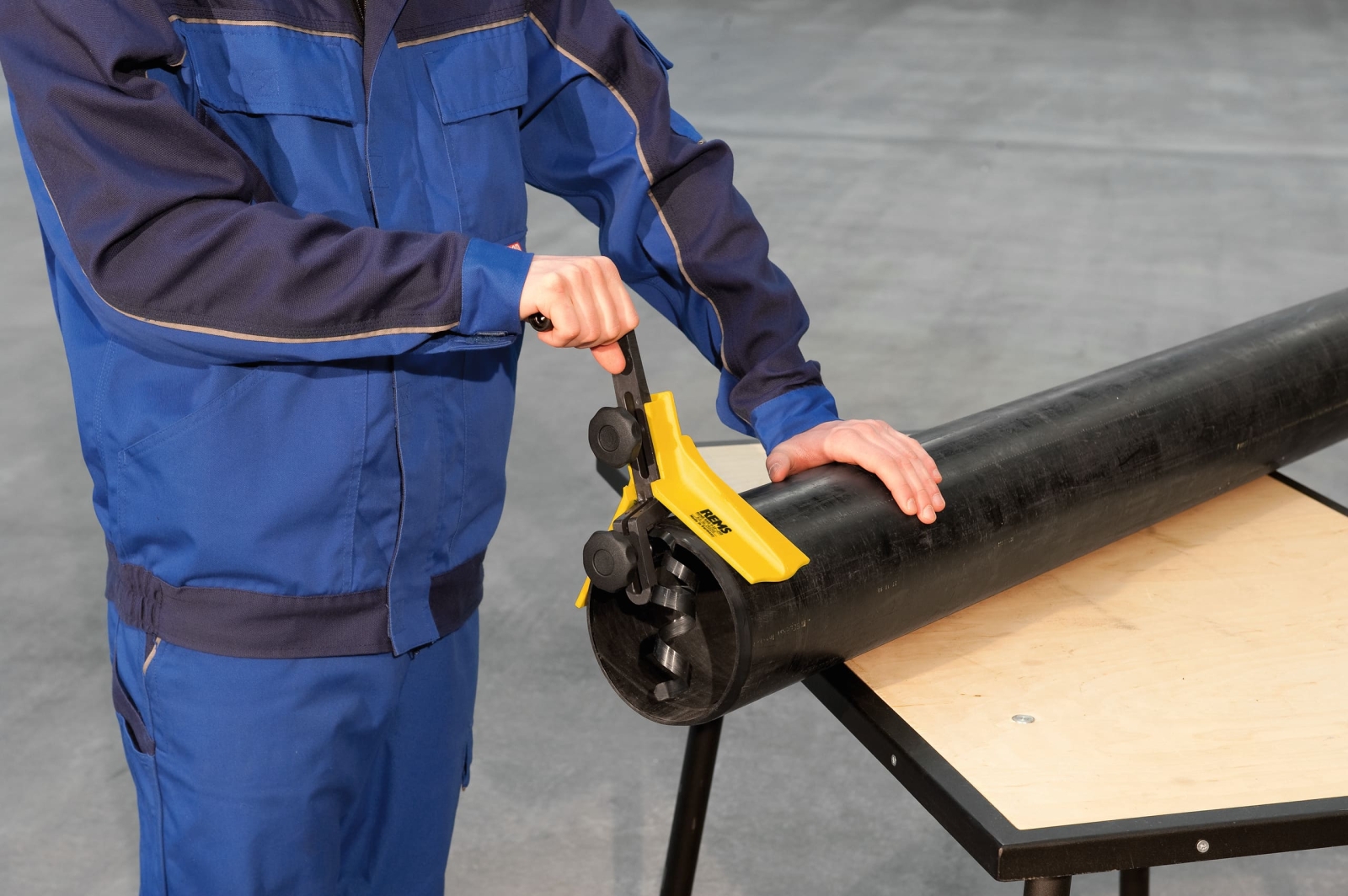

REMS RAG Plastic Pipe Trimming and Chamfering Application
Applications
Applications
Suitable for water pipe system installation, construction work, industrial piping, and household water pipe projects. It quickly completes pipe-end trimming and chamfering before pipe connection.
Water Pipe System Installation

Suitable for pipe-end trimming and chamfering before connection, helping subsequent socketing and installation work proceed more smoothly.

Fast Chamfering on Site

Suitable for construction, industrial, and household water pipe installation projects, reducing pipe-end preparation time and improving jobsite efficiency.

Plastic Pipe-End Preparation

Can be used on PVC, PE, and similar plastic pipes to trim burrs and uneven pipe-end surfaces.

Installation Quality Support

Proper chamfering and pipe-end preparation help reduce insertion resistance and improve preparation quality before pipe connection.
