REMS-Pipe-Cutting-Chamfering-Tool-Cut110

REMS_pipe_cutting_chamfering_tool_cut110_290430
REMS_pipe_cutting_chamfering_tool_cut110_290430_1
Germany
REMS
Cut110

Pipe Cutting & Chamfering Tool

Suitable for plastic pipes 40–110 mm｜Square cutting and 15° chamfering in one operation｜For ABS / PVC / PE pipes.

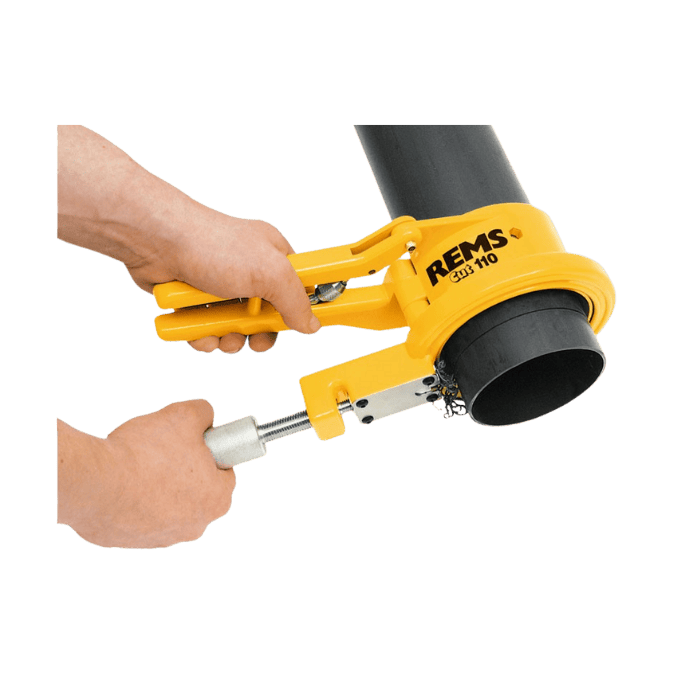

Cuts and chamfers at the same time for faster pipe preparation, reduced working time, and better joint quality.
Product Features
  • Cutting and Chamfering in One: Completes square cutting and 15° chamfering in a single operation.
  • Multi-Plastic Pipe Application: Suitable for ABS, PVC, PE, and other common plastic pipes.
  • Fast and Simple Operation: Can be used on a flat vise or workbench without complex extra equipment.
  • Stable Clamping System: Elastic clamping sleeves automatically center the pipe for more stable cutting.
  • Rugged Metal Structure: Durable metal body for long-term jobsite use.
  • Ergonomic Handle: Comfortable, low-effort grip for better continuous work efficiency.
Add to Inquiry
Tags
Show
＃Plastic Pipe ＃4" ＃2"

Model Specifications

SKU
Model
Description
Weight
Remarks

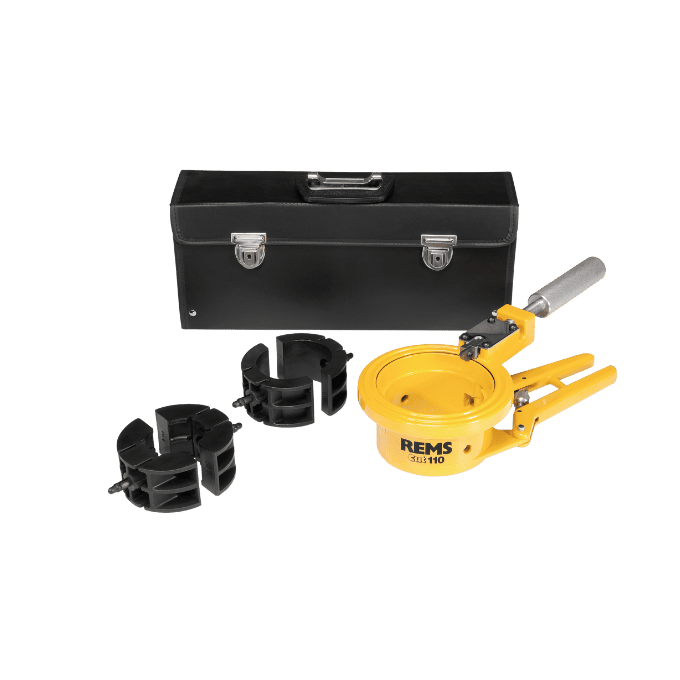

290400
Plast-Cut 110 Set
Clamping holder: Includes 50, 75, and 110 mm clamping sleeves, plus one cutting / chamfering blade set; suitable for wall thickness ≤11 mm.
4.2kg
290430
P,S11
Cutting / chamfering blade: Suitable for wall thickness ≤11 mm.
290431
P,S15.5
Cutting / chamfering blade: Suitable for wall thickness ≤15.5 mm.
290433
C,s4
Cutting blade set: Suitable for wall thickness ≤4 mm.
290420
40 mm clamping sleeve.
290421
50 mm clamping sleeve.
290422
52 mm clamping sleeve.
290423
58 mm clamping sleeve.
290427
63 mm clamping sleeve.
290424
75 mm clamping sleeve.
290425
78 mm clamping sleeve.
290426
90 mm clamping sleeve.

Product Details

Technical Data
Product Specifications
Suitable for cutting and chamfering 40–110 mm plastic pipes. It supports various plastic pipe materials including ABS, PB, PE, PE-HD, PE-X, PP, PVC, and PVDF. Designed for fast on-site cutting, chamfering, and pipe-end preparation.
Pipe Size
40–110 mm
Applicable Materials
ABS, PB, PE, PE-HD, PE-X, PP, PVC, PVDF plastic pipes
Main Use
Plastic pipe cutting, chamfering, and pipe-end preparation
Applicable Work
Pre-installation pipe preparation, on-site pipe cutting, pre-insertion finishing
Cutting and Chamfering in One Step for Better Pipe-End Preparation

Suitable for pipe-end preparation before plastic pipe installation. It helps reduce burrs, improve insertion smoothness, and increase jobsite efficiency.

Blade Options
Blade Options
Select the proper blade according to plastic pipe wall thickness for cutting and chamfering requirements.
290430

Cutting and chamfering blade

Suitable for wall thickness ≤ 11 mm.

290431

Cutting and chamfering blade

Suitable for wall thickness ≤ 15.5 mm.

Applications
Applications
Suitable for plastic piping systems, construction projects, industrial piping, and household or commercial installation and maintenance. It helps complete pipe cutting and chamfering preparation quickly.
Plastic Piping Systems

Suitable for cutting and chamfering plastic water pipes, drain pipes, gas pipes, and similar piping materials.

Construction and Industrial Work

Helps complete pipe preparation quickly and accurately, suitable for professional technicians working on site.

Household and Commercial Installation

Suitable for indoor and outdoor plastic piping system installation and maintenance, with convenient operation and portability.

Pipe-End Quality Preparation

Chamfering after cutting supports smoother insertion, socketing, and subsequent installation work.

Video
Product Video
Watch the operation video to understand plastic pipe cutting and chamfering in real applications.
