REED-PE-Squeeze-Off-Tool-PES-series

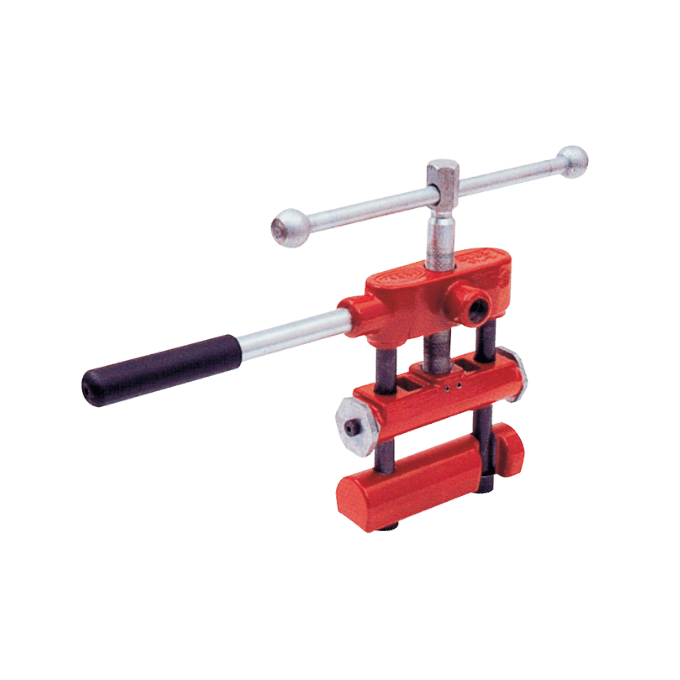

REED_PE_squeeze-off_tool_04290
U.S.A.
REED
PES系列

PE Squeeze-Off Tool

Suitable for PE pipes 1/2"–8"｜Manual and hydraulic options｜Lightweight and portable｜Easy operation.
Ideal for PE pipe repair, temporary squeeze-off, and flow control in municipal, construction, and industrial jobsites.
Product Features
  • PE Pipe Squeeze-Off Application: Designed for temporary squeeze-off and flow control during PE pipe repair.
  • Manual / Hydraulic Options: PES8 series is available in manual M type and hydraulic H type for different jobsite needs.
  • Flexible Clamping Design: PES1 has a fixed bottom; PES2 and PES4 feature an openable bottom for clamping at any pipe position.
  • Lightweight Portable Frame: Compact and easy to carry, suitable for outdoor work, confined spaces, and field service.
  • Precision Thread Operation: Smooth and low-effort tightening for stable squeeze-off control.
  • Hydraulic Professional Setup: PES8H includes hydraulic pump, pressure gauge, and clamps for heavier-duty work.
  • Safer Release Control: Optional flow control valve helps manage release speed for improved safety.
  • Multi-Standard Compatibility: With safety stop replacement, the tool can be used with IPS and CTS PE pipes.
Add to Inquiry
Tags
Show
＃8" ＃1/2" ＃Plastic Pipe

Model Specifications

SKU
Model
Description
Weight
Remarks
04290
PES1IPS
For 0.63"–1.32", number of pipes that can be squeezed off: 4
3.0kg
Length 280mm
04292
PES1CTS
For 0.63"–1.32", number of pipes that can be squeezed off: 4
3.0kg
Length 280mm
04302
PES2IPS
For 1/2"–2", number of pipes that can be squeezed off: 6
5.3kg
Length 305mm
04304
PE2CTS
For 1/2"–2", number of pipes that can be squeezed off: 6
5.3kg
Length 305mm
04306
PES4
For 2"–4", number of pipes that can be squeezed off: 7
17.5kg
Length 508mm
04308
PES8M
For 3"–8", number of pipes that can be squeezed off: 12
59.1kg
Length 711mm
04309
PES8H
For 3"–8", number of pipes that can be squeezed off: 12
59.1kg
Length 711mm
04313
PES6M
For 3"–6", number of pipes that can be squeezed off: 10
36.8kg
Length 711mm

Product Details

Technical Data
Product Specifications
PE pipe squeeze-off tools are suitable for 1/2"–8" PE pipes and are used to temporarily stop flow during pipeline repair, maintenance, construction, or emergency work. The series includes PES1, PES2, PES4, PES8M manual model, and PES8H hydraulic model, allowing users to choose the right tool according to pipe size, working space, and job intensity.
Application Range
1/2"–8" PE pipes
Models
PES1, PES2, PES4, PES8M, PES8H
Operation Type
Manual and hydraulic options available
PES8M
Manual operation model
PES8H
Hydraulic operation model, including hydraulic pump, pressure gauge, and fixture
Size Compatibility
Compatible with IPS and CTS PE pipes by changing safety stops
Temporary PE Pipe Squeeze-Off for Repair and Construction Work

Temporarily stops flow before PE pipe repair, welding, patching, or replacement work, helping technicians quickly and safely create workable conditions on site.

Features
Product Features
The PES series offers fixed-base, open-bottom, manual, and hydraulic configurations for different pipe sizes and jobsite needs, supporting confined spaces, field portability, and higher-load pipe applications.
Flexible Design

PES1 features a fixed bottom for standard squeeze-off work, while PES2 and PES4 have open-bottom designs for clamping at any position on the pipe.

Compact Frame

The compact and lightweight frame is suitable for confined spaces, outdoor construction, and field maintenance work.

Easy Operation

Precision-thread design helps make the squeeze-off process smoother and reduces operating effort on site.

Manual / Hydraulic Options

The PES8 series provides manual M type and hydraulic H type options, allowing selection based on job intensity and pipe conditions.

Professional Squeeze-Off Function

The PES8H hydraulic model includes a hydraulic pump, pressure gauge, and fixture, making it suitable for higher-load pipe operations.

Multi-Size Compatibility

By changing safety stops, the tool can be used with IPS and CTS PE pipes, improving overall tool versatility.

Accessories
Safety Stop Options
Safety stops allow PES2 to be converted between IPS and CTS specifications, improving flexibility across different PE pipe size systems.
98078 CTS

Converts PES2IPS to PES2CTS.

98079 IPS

Converts PES2CTS to PES2IPS.

Note: CTS refers to copper tube size; IPS refers to iron pipe size.

Applications
Applications
Suitable for PE pipe repair, maintenance, welding, patching, replacement, temporary squeeze-off, and emergency handling. Commonly used in municipal, construction, industrial, and outdoor pipeline projects.
PE Pipe Repair and Maintenance

Effectively stops water or media flow inside the pipe, making welding, patching, and replacement work easier.

Municipal and Construction Work

Suitable for temporary squeeze-off in municipal water supply, drainage, or other PE pipe system construction.

Industrial Pipeline Management

Can be used for emergency handling, routine maintenance, and sectional construction in industrial PE piping systems.

Outdoor Field Work

The compact frame is easy to carry, making it suitable for outdoor, confined-space, or field maintenance work.
