CBC-Welding-Mirror-PS-series

CBC_welding_mirror_200TR_9700205
Italy
CBC
PS系列

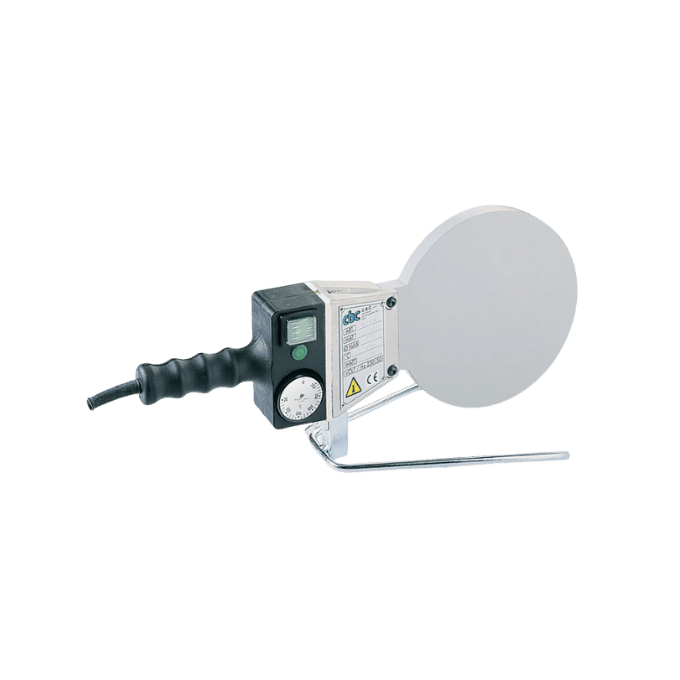

Welding Mirror

Suitable for pipe sizes 20–280 mm｜For PB, PE, PP, and PVDF pipes｜Adjustable temperature 50–300°C｜Multiple heating plate options.
Designed for stable and efficient butt fusion work across different pipe materials, diameters, and jobsite conditions.
Product Features
  • Multiple Heating Plate Options: Available in different plate sizes for various pipe diameters and applications.
  • 45° Angled Heating Plate: Suitable for confined spaces or special working angles.
  • Precise Temperature Control: Adjustable from 50–300°C according to pipe material and fusion requirements.
  • PTFE-Coated Surface: Helps reduce material adhesion, keeps the heating surface clean, and extends tool life.
  • Durable and Portable Design: Heat-resistant and stable structure for convenient jobsite operation.
  • Multi-Material Application: Suitable for PB, PE, PP, PVDF, and related plastic pipe fusion work.
Add to Inquiry
Tags
Show
＃11" ＃6" ＃Plastic Pipe

Model Specifications

SKU
Model
Description
Weight
Remarks
9700025
PS 120 ITR
Up to 110 mm, approx. 50–300°C, 600W
5.0kg
220V
9700125
PS 120 TR
Up to 110 mm, approx. 50–300°C, 600W
5.0kg
220V
9700205
PS 200 TR
Up to 180 mm, approx. 50–300°C, 600W
7.0kg
220V
9700255
PS 250 TR
Up to 240 mm, approx. 50–300°C, 1300W
8.0kg
220V
9700305
PS 300 TR
Up to 280 mm, approx. 50–300°C, 1300W
9.0kg
220V

Product Details

Technical Data
Product Specifications
Suitable for heat fusion work on PB, PE, PP, PVDF, and similar plastic pipes, covering pipe sizes from 20 to 280 mm. The operating temperature can be adjusted between 50 and 300℃, making it suitable for plastic piping system installation, maintenance, and engineering jobsites.
Pipe Size
20–280 mm
Applicable Materials
PB, PE, PP, PVDF pipes
Operating Temperature
Adjustable from 50–300℃
Main Use
Plastic pipe heat fusion and piping system joining work
Application Fields
Water pipes, gas pipelines, plastic piping systems, construction, and industrial engineering
Adjustable Temperature Control for Various Plastic Pipe Fusion Needs

The operating temperature can be adjusted according to material characteristics and jobsite requirements, helping create stable, pressure-resistant, and well-sealed plastic pipe joints.

Applications
Applications
Suitable for water pipes, gas pipelines, plastic piping systems, construction projects, and industrial engineering. It supports fusion needs in standard installation work as well as space-restricted environments.
Piping System Installation and Maintenance

Suitable for fusion work on water pipes, gas pipelines, and other plastic piping systems, helping ensure pressure resistance and sealing performance at the joint.

Construction and Industrial Engineering

Provides stable and efficient fusion performance for both large construction projects and small pipe repair work.

Various Jobsite Conditions

Suitable for standard installation environments and space-restricted worksites, especially where fast fusion work is required.

Plastic Pipe Joining Preparation

Can be used for joining PB, PE, PP, and PVDF plastic pipes, supporting different pipe sizes and on-site installation conditions.
