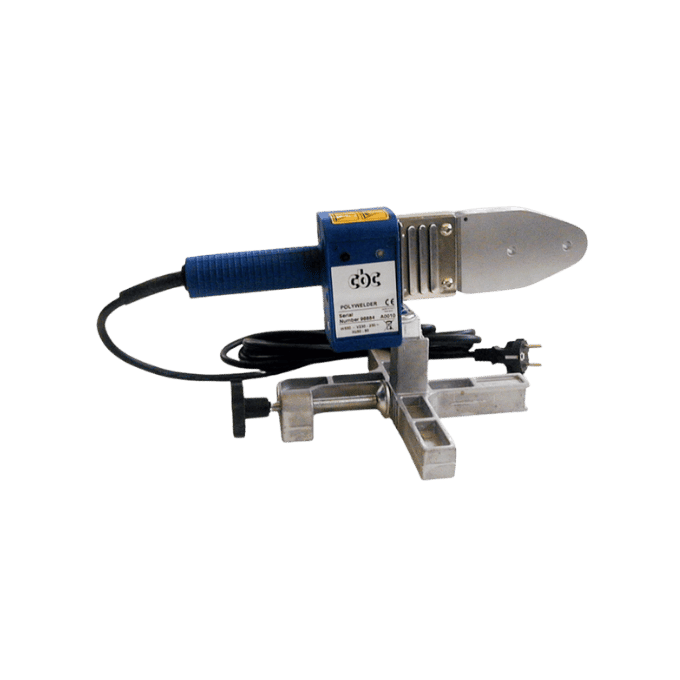

CBC-Socket-Fusion-Machine-PL3-S-TR63

CBC_socket_fusion_machine_PL3STR63_97103641
Italy
CBC
PL3-S-TR63

Socket Fusion Machine

Suitable for pipe sizes 20–63 mm｜Adjustable / fixed temperature modes｜PTFE-coated sockets｜Workbench stand｜For PP / PVDF pipes.
Lightweight body with stable heating performance, ideal for plastic pipe fusion, jobsite installation, and maintenance work.
Product Features
  • Dual Temperature Modes: Adjustable mode supports different pipe materials; fixed-temperature mode is ideal for standardized fast operation.
  • PTFE-Coated Sockets: Helps reduce material adhesion, keep the fusion surface clean, and improve work efficiency.
  • Workbench Stand: Can be placed on a flat surface or fixed to a workbench for better fusion stability.
  • Lightweight and Portable Design: Easy to carry between jobsites for fast installation work.
  • PP / PVDF Application: Suitable for common plastic pipe socket fusion work.
Add to Inquiry
Tags
Show
＃Plastic Pipe ＃2"

Model Specifications

SKU
Model
Description
Weight
Remarks
97103641
PL3-S-TR63
110V / 60Hz, 1000W, built-in 50–300°C automatic temperature control.
6.5kg
Supplied with workbench stand, metal case, and 6 socket sets from 20–63 mm

Product Details

Technical Data
Technical Data
Designed for welding and assembling plastic pipes from 20 to 63 mm, especially suitable for PP and PVDF piping systems. Available with adjustable or fixed temperature options, it is ideal for small-scale installation, maintenance work, and confined jobsite environments.
Pipe Size Range
20–63 mm
Applicable Materials
PP, PVDF and other plastic pipes
Temperature Options
Adjustable and fixed temperature versions
Main Application
Plastic pipe welding and piping system assembly
Compact welding tool for small-diameter plastic pipe installation

Engineered for 20–63 mm pipe sizes, this tool is suitable for standard installation, repair work, and restricted spaces, helping professionals complete plastic pipe joining tasks efficiently.

Applications
Applications
Suitable for plastic pipe welding, assembly, small-scale installation, building services, plumbing work, and chemical piping systems.
Plastic Pipe Welding & Assembly

Designed for PP and PVDF pipes, suitable for installation and repair of various plastic piping systems.

Small-Scale Installation Work

Convenient for confined spaces and lightweight jobsite use, especially in small installation or maintenance projects.

Building & Plumbing Installation

Suitable for building services, plumbing installation, and general plastic piping applications.

Chemical Piping Systems

Applicable to PP and PVDF piping systems, supporting a wide range of industrial and piping applications.
