REMS-Butt-Welding-Machine-250KS-EE

REMS_butt_welding_machine_250KS-EE_254025_1
REMS_butt_welding_machine_250KS-EE_254025
REMS_butt_welding_machine_250KS-EE_254025_2
Germany
REMS
250KS

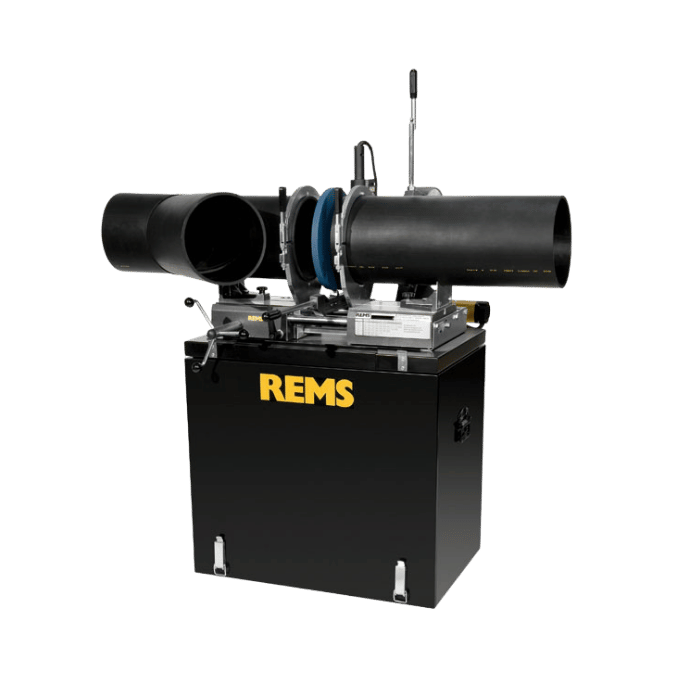

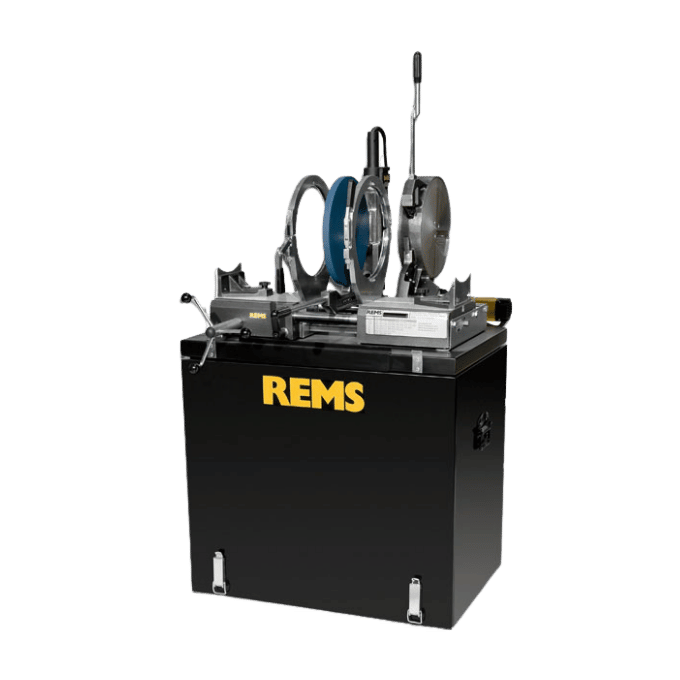

Butt Welding Machine

Suitable for pipe sizes 75–250 mm｜For PB, PE, PP, and PVDF pipes｜Temperature control 180–290°C｜500W high-torque facing tool｜PTFE-coated butt fusion heater｜Total weight 109 kg.
Stable heating, precise facing, and efficient butt fusion for demanding plastic pipe installation and maintenance in jobsites and workshops.
Product Features
  • 75–250 mm Large Pipe Range: Suitable for butt fusion of PB, PE, PP, and PVDF plastic pipes.
  • Stable Temperature Control: Adjustable from 180–290°C for PE and other plastic pipe fusion requirements.
  • PTFE-Coated Fusion Heater: Reduces plastic residue adhesion, makes cleaning easier, and improves service life.
  • 500W High-Torque Facing Tool: Quickly faces pipe ends for better alignment and fusion quality.
  • Sliding Roller Design: Heater and facing tool move smoothly on roller guides for easier operation.
  • Rugged Quick Clamps: Suitable for 75–250 mm pipes, with fast clamping and clear pressure scale.
  • Adjustable Pipe Supports: Includes 2 adjustable pipe supports for easier pipe alignment and support.
  • Portable Configuration: Machine and case weigh approx. 109 kg for transport and jobsite mobility
Add to Inquiry
Tags
Show
＃9" ＃Plastic Pipe Tools

Model Specifications

SKU
Model
Description
Weight
Remarks
254025
250KS-EE
Power & System: Butt fusion welder 230V / 1300W with temperature controller (pipe diameter ≤250 mm), electric facing tool 230V / 500W; Clamping system: Quick clamping unit for pipe diameter 75–250 mm (with standard clamping inserts and special clamps for triangular branch pipes), pipe support stand for pipe diameter 75–250 mm (with support inserts); Workbench: Steel case type.
109 kg

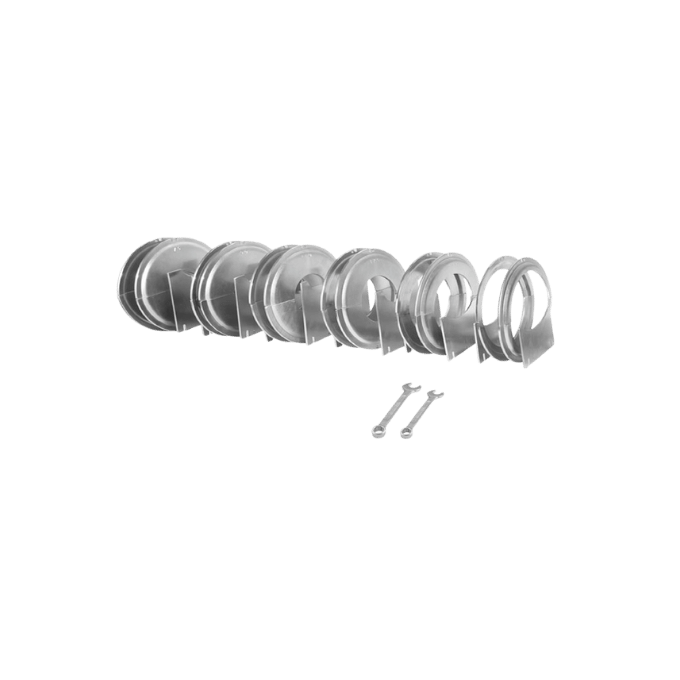

Accessories: 75, 90, 110, 125, 160, 200, and 250 mm.

Product Details

Technical Data
Product Specifications
Suitable for cutting, welding, and pipe assembly work on 75–250 mm PB, PE, PP, and PVDF plastic pipes. The applicable working range can be selected according to pipe diameter and SDR standard, making it suitable for jobsites, factories, drainage systems, and pipe installation projects.
Cutting Capacity
75–250 mm
Applicable Materials
PB, PE, PP, PVDF plastic pipes
Main Use
Plastic pipe cutting, welding, and pipe assembly
Application Fields
Jobsites, factories, drainage systems, pipe installation, and plastic piping projects
Large-Diameter Plastic Pipe Cutting and Welding for Jobsites and Factories

Designed for 75–250 mm pipe sizes, it can be used for plastic piping system installation, drainage projects, pipe systems, and on-site pipe assembly work.

Pipe Size & SDR Range
Pipe Size and SDR Range
Different pipe diameters correspond to different SDR standards. Confirm the applicable range according to the actual pipe specification before installation.
75–140 mm

SDR ≥ 6

75–160 mm

SDR ≥ 9

75–180 mm

SDR ≥ 11

75–200 mm

SDR ≥ 13.6

75–225 mm

SDR ≥ 17.6

75–250 mm

SDR ≥ 22

Applications
Applications
Suitable for plastic pipe cutting, welding, and assembly work in jobsites and factories. Especially suitable for PB, PE, PP, and PVDF pipes, as well as efficient work in drainage systems and pipe installation projects.
Jobsite and Factory Work

Suitable for plastic pipe cutting and welding in construction sites, factories, and engineering environments.

Drainage System Installation

Can be used for drainage system installation, maintenance, and pipe retrofit projects.

Pipe System Installation

Suitable for pipe preparation, joining, and on-site assembly work in pipe systems.

Multiple Plastic Pipe Materials

Supports PB, PE, PP, PVDF and other plastic pipe materials, meeting diverse piping project requirements.
