Sectional-Drain-Cleaner-K50

KS_Clean_Sink Drain Machines_K50_K50A
Taiwan
KS
K50

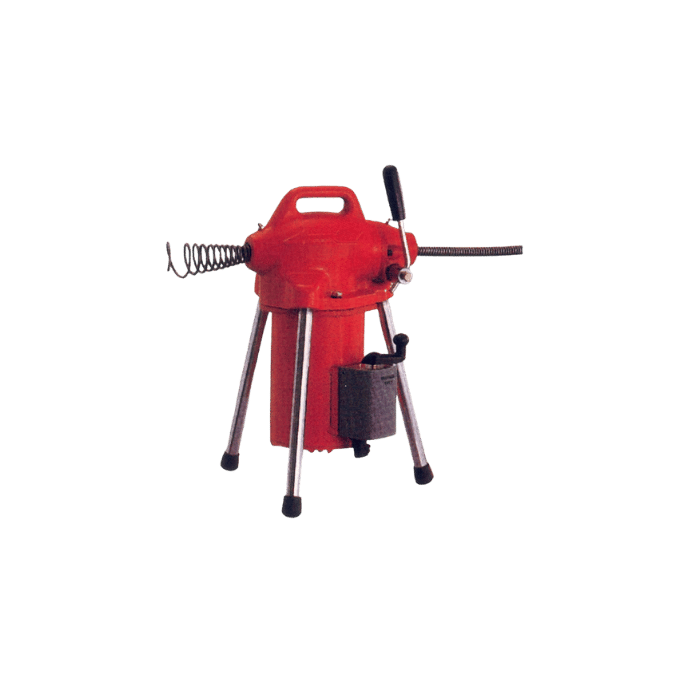

Sectional Drain Cleaner

Suitable for 3/4"–4" drain lines｜Cable sizes 5/16"–5/8"｜Up to 38 m cable length｜Weight 22 kg｜Multiple cutter options available.
Designed to clear grease, hair, and heavy blockages, ideal for residential, commercial, and large drainage system maintenance.
Product Features
  • Multiple Cable Sizes: Choose from 5/16"–5/8" cables according to pipe size and blockage level.
  • Efficient Blockage Removal: Suitable for grease, hair, sediment, and heavier drain blockages.
  • Multiple Cutter Options: Works with arrow, spiral, spade, and C-type cutters for different clog conditions.
  • Simple and Intuitive Operation: Easy to use for routine maintenance and fast jobsite clearing.
  • Portable Body Design: Approx. 22 kg body for easier movement in homes, commercial spaces, and service jobsites.
  • Wide Application Range: Suitable for sinks, bathroom drains, floor drains, and building drainage systems.
  • Durable and Efficient Structure: Built with quality materials for repeated long-term drain cleaning work.
Add to Inquiry
Tags
Show
＃3/4" ＃4"

Model Specifications

SKU
Model
Description
Weight
Remarks
K50A
K50A
Main unit 120V / 60Hz, 1/2 HP, variable speed 0–460 rpm; Cables: three 5/8" × 15' standard cables with one cable carrier; Included: four cutter heads.
40 kg
Cutter heads and cables are compatible with RT66, I95, and K60SP models.
K50B
K50B
Main unit 120V / 60Hz, 1/2 HP, variable speed 0–460 rpm; Cables: three 5/8" × 30' sectional cables with one cable carrier; Included: four cutter heads.
53 kg
Cutter heads and cables are compatible with RT66, I95, and K60SP models.
K50C
K50C
Main unit 120V / 60Hz, 1/2 HP, variable speed 0–460 rpm; Cables: three 5/8" × 15' standard cables with one cable carrier, and three 5/8" × 30' sectional cables with one cable carrier; Included: four cutter heads.
Cutter heads and cables are compatible with RT66, I95, and K60SP models.

Product Details

Technical Data
Product Specifications
A professional drum-type drain cleaning machine suitable for 3/4"–4" drain lines. Depending on pipe size, cleaning distance, and blockage type, it can be used with 5/16", 3/8", 1/2", or 5/8" cables. Suitable for residential, commercial, and building drainage system maintenance.
Cleaning Capacity
Suitable for 3/4"–4" drain lines
Cable Sizes
5/16", 3/8", 1/2", or 5/8" cables
Weight
22 kg
Multiple Cable Options for Different Pipe Sizes

Different cable sizes can be selected according to pipe diameter, bend conditions, and blockage severity, balancing small-pipe flexibility with longer-distance cleaning requirements.

Cable Capacity
Cable Application Range
Different cable sizes correspond to different pipe diameters and maximum cleaning distances. Select the proper configuration based on jobsite requirements.
5/16" Cable
Cleans 3/4"–1 1/2" lines, up to 15 m
3/8" Cable
Cleans 1 1/4"–2" lines, up to 11 m
1/2" Cable
Cleans 1 1/4"–3" lines, up to 22 m
5/8" Standard Cable
Cleans 1 1/4"–3" lines, up to 30 m
5/8" Close-Wound Cable
Cleans 2"–4" lines, up to 38 m
Features
Product Features
Built around multi-cable compatibility, portable operation, and efficient drain cleaning, this machine is suitable for handling different pipe sizes and various blockage conditions.
Multiple Cable Options

Supports 5/16", 3/8", 1/2", and 5/8" cables, allowing users to select the proper setup for different pipe sizes and blockage conditions.

Easy Operation

The machine is designed for intuitive use and quick field operation, suitable for residential and commercial drain maintenance.

Efficient Drain Cleaning

Cable length and type can be matched to different pipe sizes, helping solve a wide range of common blockage problems.

Portable for Field Use

At approximately 22 kg, it is suitable for maintenance personnel working in homes, commercial buildings, hotels, and public facilities.

Wide Application

Can be used for sinks, toilets, shower drains, building drainage systems, and general drain cleaning work.

Durable and Stable

Suitable for long-term field use, providing stable cleaning efficiency and reliable operation.

Cutters
Cutter Accessories
Different cutter heads can be selected according to blockage type and pipe condition, including arrow heads, bulb augers, U-cutters, spade cutters, four-blade cutters, chain knockers, and more.

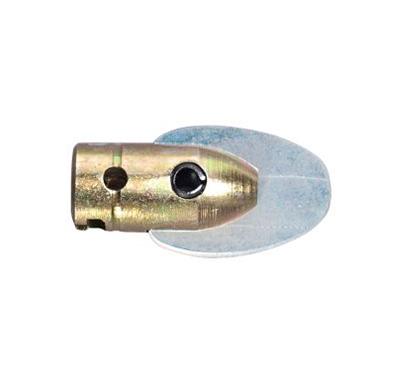

RAH Arrow Cutter
178060K｜RAH

Arrow Cutter

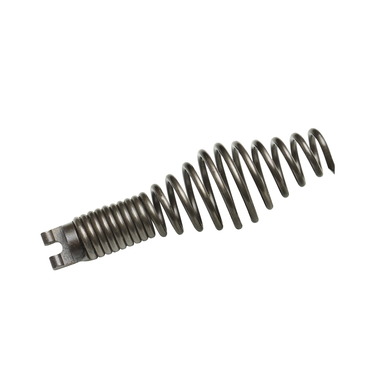

T-202 Bulb Auger
62995K｜T-202

Bulb Auger

T-205 U-Cutter
63005K｜T-205

1 1/2" U-Cutter

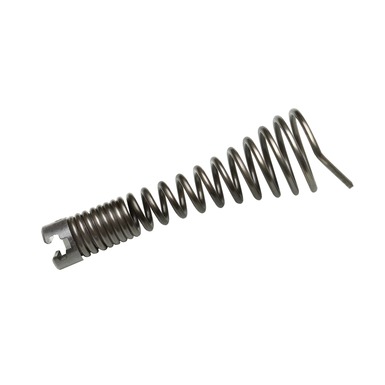

T-206 Funnel Auger
63010K｜T-206

Funnel Auger

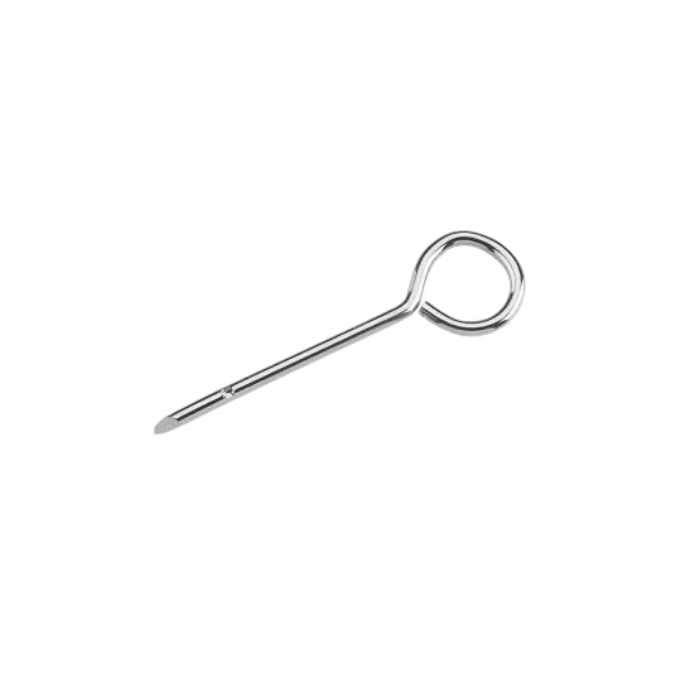

A-13K Cable Pin Key
59230K｜A-13K

Cable Pin Key

KS095 Heavy-Duty Carbide Cutter
KS095｜095

Heavy-Duty Carbide Cutter

T-201 Straight Auger
62990K｜T-201

Straight Auger

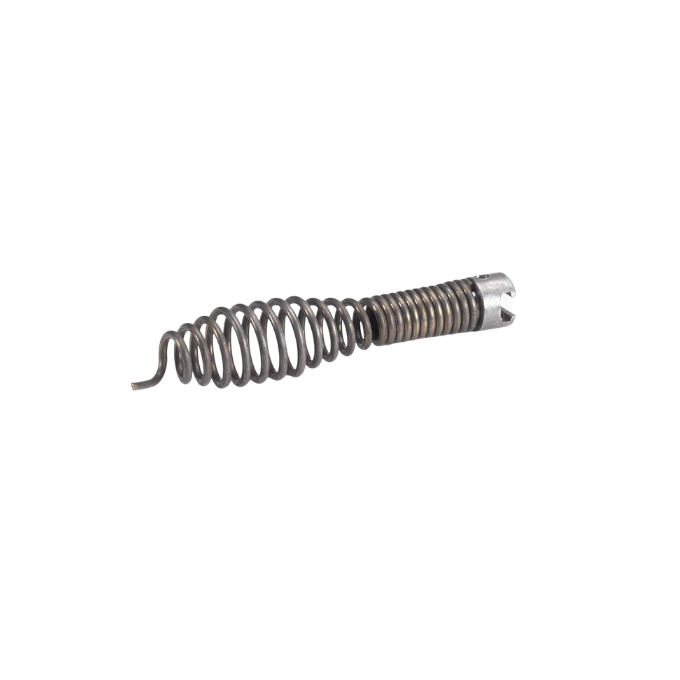

T-203 Bulb Auger
63000｜T-203

7/8" Bulb Auger

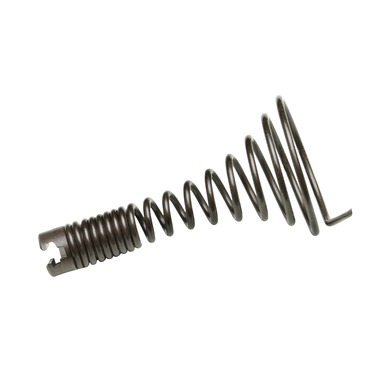

T-225 Retrieving Auger
55457K｜T-225

Retrieving Auger

T-209 Spiral Cutter
63025K｜T-209

2" Spiral Cutter

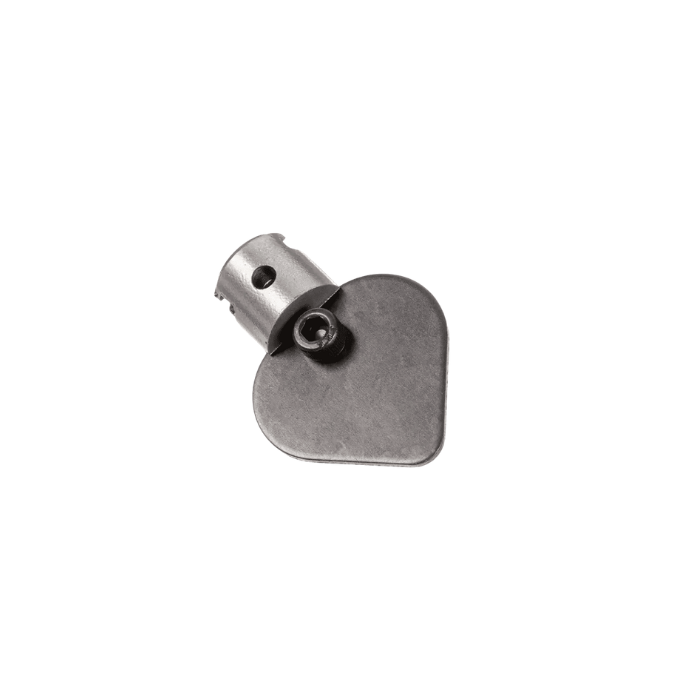

T-210 / T-211 / T-212 Spade Cutter
63030K、63035K、63040K
｜T-210、T-211、T-212

1", 1 3/8", 1 3/4" Spade Cutter

T-213 / T-214 / T-215 Four-Blade Cutter
63045K、63050K、63055K
｜T-213、T-214、T-215

1", 1 3/8", 1 3/4" Four-Blade Cutter

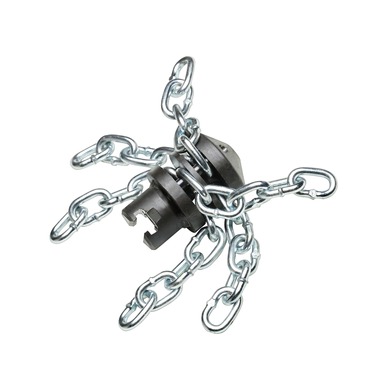

T-216 Chain Knocker
63060｜T-216

2" Chain Knocker

T-217 Drop Head Auger
63065K｜T-217

Drop Head Auger

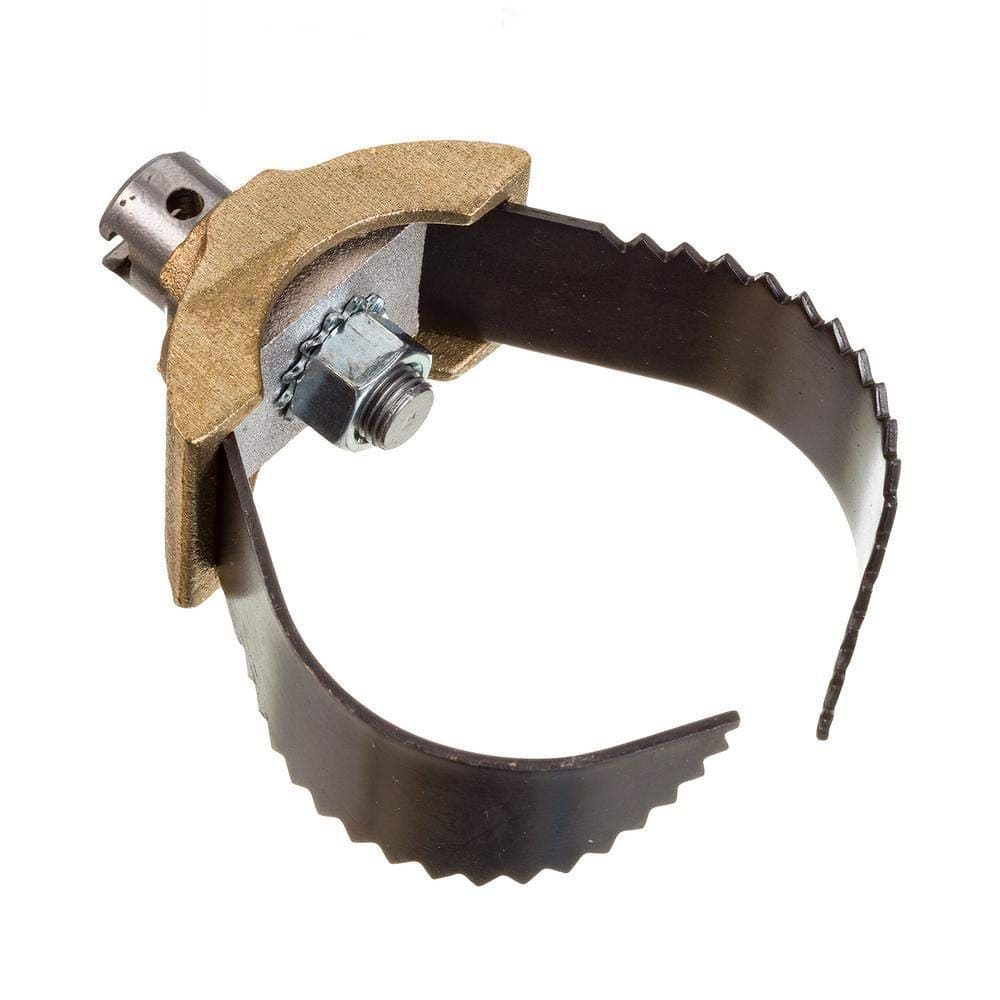

T-230 / T-231 / T-232 Heavy-Duty C-Cutter
52812K、52817、52822
｜T-230、T-231、T-232

2", 2 1/2", 3" HD C-Cutter

Applications
Applications
Suitable for residential, commercial, and building drainage system cleaning, especially applications requiring longer cleaning distances and broader drain maintenance coverage.
Residential and Commercial Use

Can be used for drain cleaning in homes, commercial buildings, hotels, and public facilities.

Long-Distance Drain Cleaning

Designed for efficient long-distance cleaning, suitable for longer pipe runs and larger blockage ranges.

Multi-Scenario Drain Maintenance

Suitable for sinks, toilets, shower drains, building drainage systems, and general pipeline maintenance.
