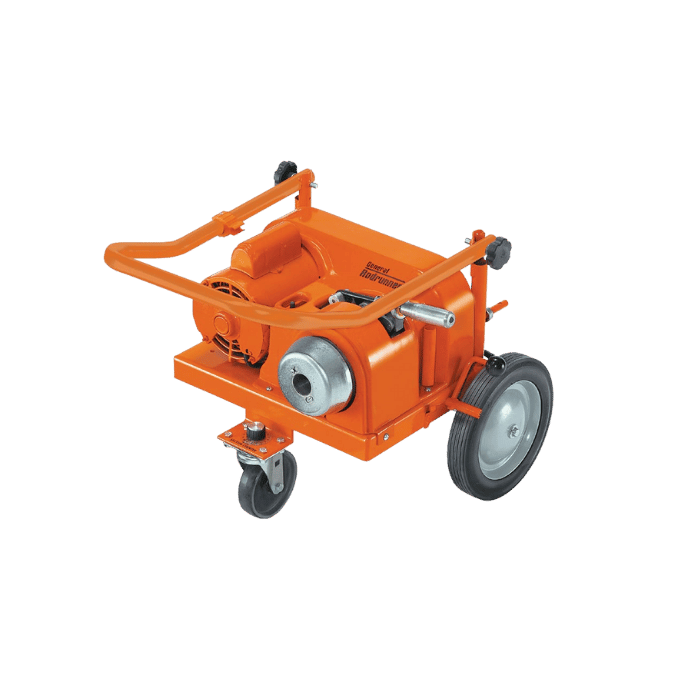

GENERAL Rodrunner Sectional Drain Cleaner

GENERAL_Clean_Sink Drain Machines_RodRunner_Fold_109130
GENERAL_Clean_Sink Drain Machines_RodRunner_Fold_109130_1
U.S.A.
General Pipe
RDGP

Sectional Drain Cleaner

Pipe Size: 3"–10"｜Maximum Working Distance: 200 ft / approx. 61 m｜3/4 HP Motor｜700 rpm｜1-1/4" Sectional Cables｜Weight: approx. 41 kg｜Safety Slip Clutch + Pneumatic Power Switch.The Rodrunner® is designed for clearing large lines and long runs.
Product Features

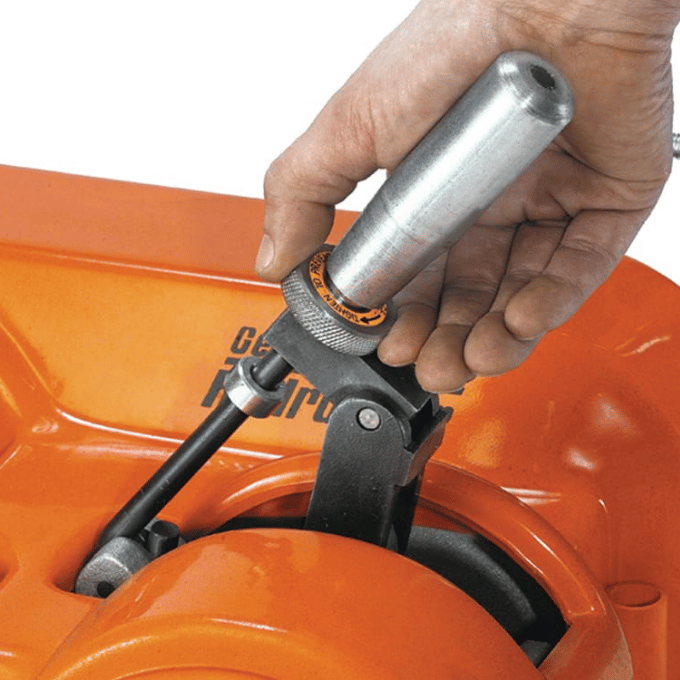

  • Safety Slip Clutch: An adjustable spring-loaded clutch helps protect the cable and drive system against sudden torque build-up.
  • Folding Handle: The handle folds down to reduce storage height, making transportation and truck storage more convenient.
  • Two-Way Operation: For close-up work in tight spaces, the machine can be secured and operated with the pneumatic foot pedal, leaving both hands free to control the cable. When more working space is available, the Rodrunner can also be operated in walk-behind mode.
  • Quick-Coupling Sectional Cables: Sectional cables snap together quickly and can be disconnected using a coupling wrench, allowing cable length to be adjusted according to the job.
Add to Inquiry
Tags
Show
＃10" ＃2"

Model Specifications

SKU
Model
Description
Weight
Remarks
109130
RDGP
Motor: 3/4 HP, 700 rpm cable speed, with 20 ft power cord, GFCI protection, and pneumatic hand/foot-operated power switch; Cable Configuration: ten 1-1/4" × 10' 10GP Proflex® sectional cable sections; Supplied Accessories: one RDCS-G cutter set.
Main unit 41 kg
Standard Cable Length: 100 ft / approx. 30.5 m Maximum Working Distance: 200 ft / approx. 61 m with additional cable sections

Product Details

Technical Data
Product Specifications
The RodRunner folding sectional drain cleaner is designed for 3"–10" drain lines and supports 1-1/4" Flexichain®, Proflex®, and other sectional cables. Its folding design and approx. 41 kg weight make transportation and jobsite deployment easier, making it suitable for large lines, main drains, and long-run drain cleaning.
Drain Cleaning Capacity
For 3"–10" drain lines
1-1/4" Sectional Cable
For 3"–10" lines, up to 200 ft / approx. 61 m
Standard Cable
1-1/4" sectional cable
7/8" Cable (Optional)
With the optional R-R10AD jaws, the Rodrunner can drive 7/8" × 15' sectional cables for smaller drain lines.
Machine Weight
Approx. 41 kg
Cable Models
160010: 10GF 1-1/4" × 10' Flexichain® Sectional Cable

160030: 10GP 1-1/4" × 10' Proflex® Sectional Cable
Large-Line Cleaning with Jobsite Mobility

Compatible with different sectional cables and cutters for clearing deposits, roots, and other tough stoppages in larger and longer drain lines.

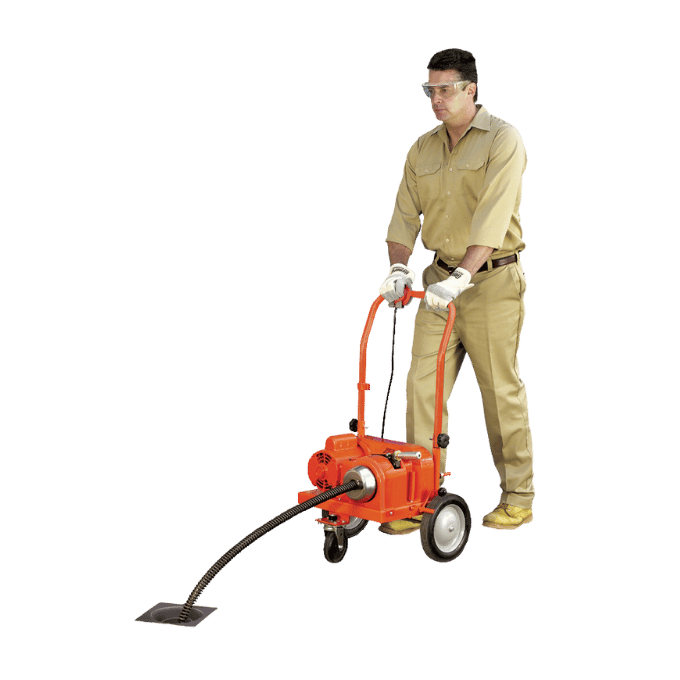

RodRunner Folding Drain Cleaning Machine
Features
Product Features
Designed around a folding frame, large-line cleaning capacity, long-run sectional cable operation, and jobsite mobility for professional drain cleaning.
Folding Design

The folding handle makes transportation, storage, and jobsite deployment easier.

Large-Line Cleaning Capacity

Designed for 3"–10" drain lines, including main drains, commercial drainage systems, and other large lines.

Long-Run Operation

1-1/4" sectional cables can be driven up to 200 ft / approx. 61 m down the line.

Wide Range of Stoppages

Compatible with different cutters for roots, deposits, and other tough stoppages.

Cable & Cutters
Cable and Cutter Accessories
Compatible with 1-1/4" Flexichain®, Proflex®, and other sectional cables, with a range of spear heads, U-cutters, heavy-duty side cutters, saw blades, retrieving tools, root-cutting tools, and other accessories.
Cables and Add-On Tools
160010｜10GF

1¼" × 10' sectional cable

160030｜10GP

1¼" × 10' inner-core cable

160340｜CF

Cable guide tool

160440｜GCL

Guide tube

160250｜GCA

Tool adapter

Cutter Accessories

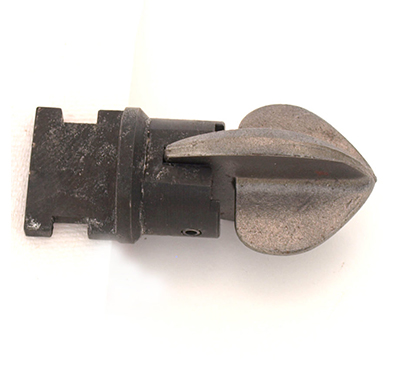

GSHD Spear Head Cutter
160070｜GSHD

Spear Head Cutter

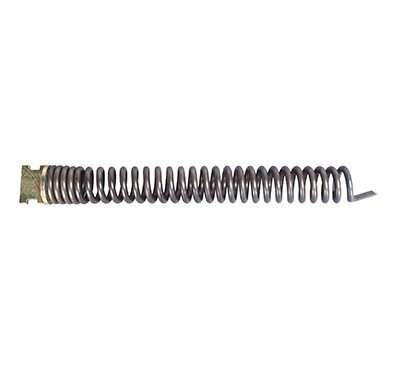

GHA Hook Auger
160390｜GHA

Hook Auger

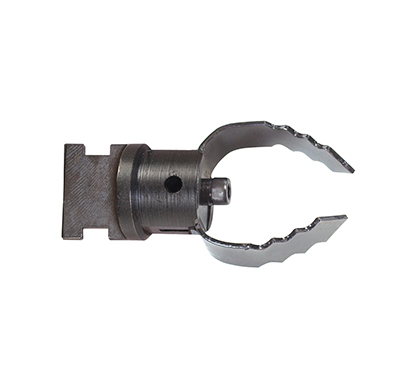

G2UC U-Cutter
160400｜G2UC

2" U-Cutter

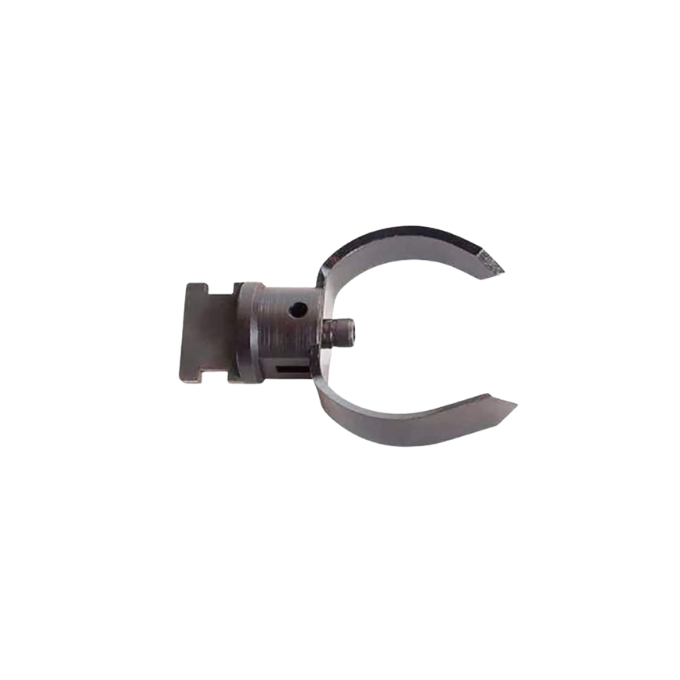

G3HDSC Heavy-Duty Side Cutter
160220｜G3HDSC

3" Heavy-Duty Side Cutter, 4" also available

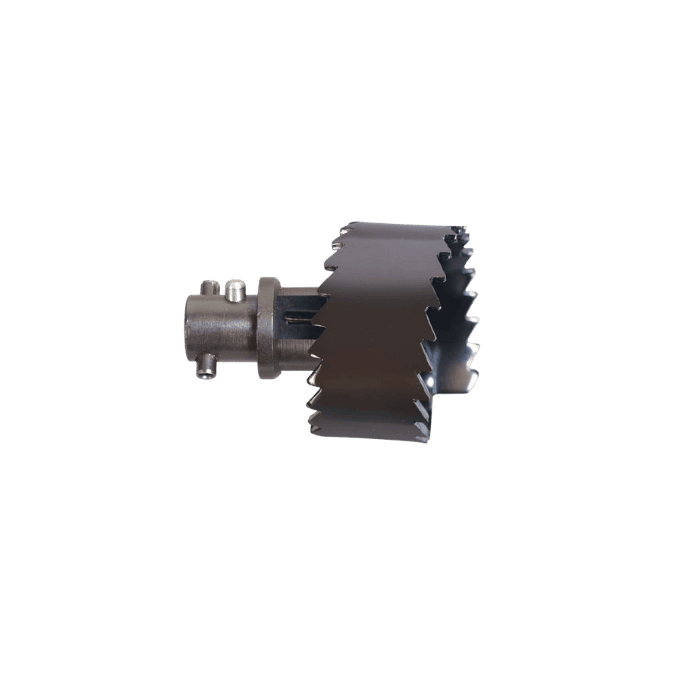

G3HDB Heavy-Duty Sawtooth Cutter
160080｜G3HDB

3" Heavy-Duty Sawtooth Cutter, 4" also available

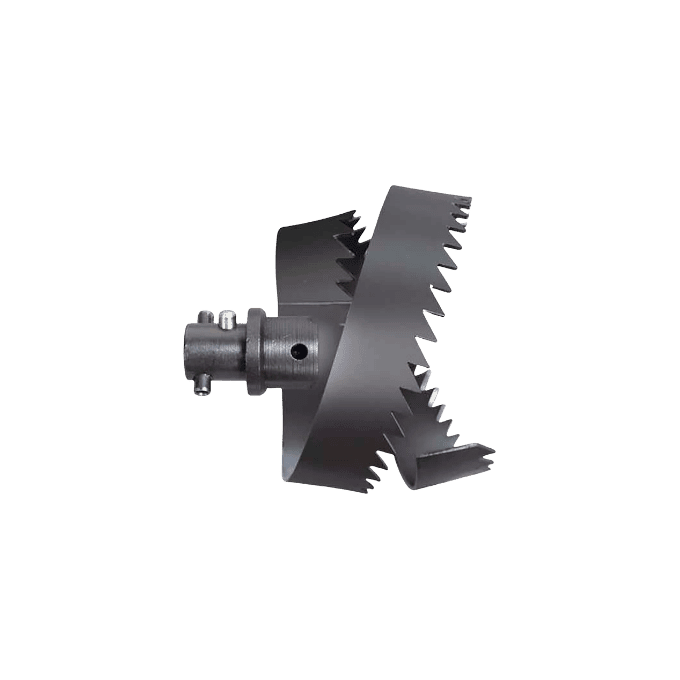

G4RSB Spiral Sawtooth Cutter
160150｜G4RSB

4" Spiral Sawtooth Cutter, 3" also available

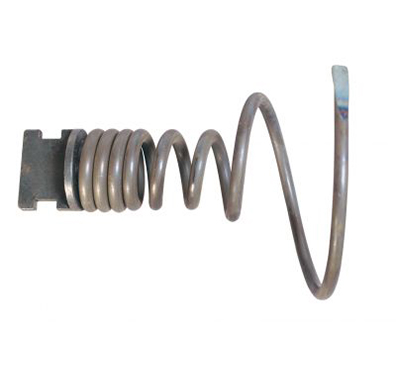

GRTR2 Retrieving Auger
160230｜GRTR2

Retrieving Auger

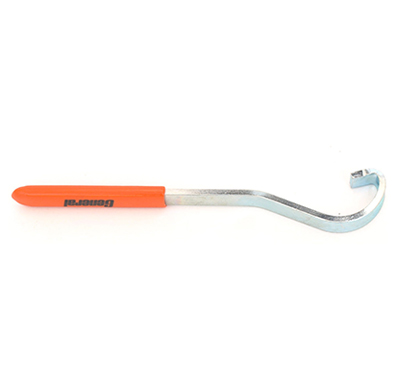

GCW Cable Pin Key
160050｜GCW

Cable Pin Key

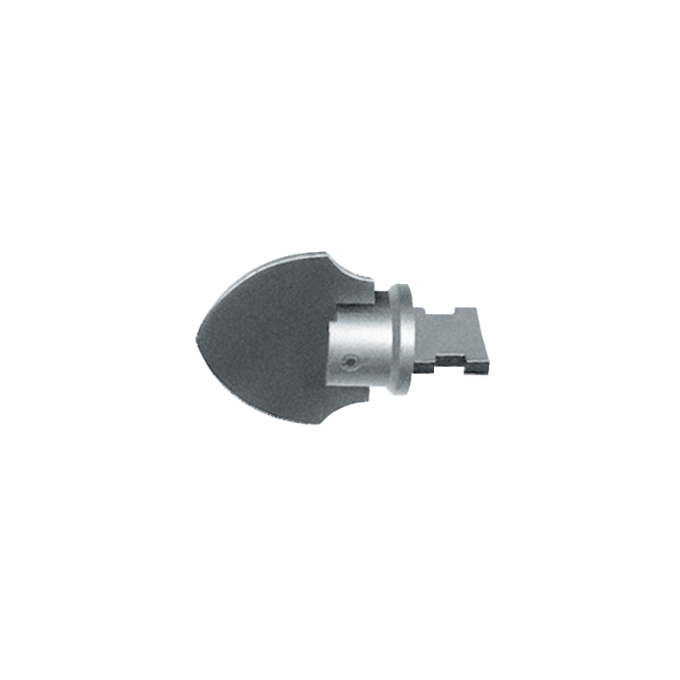

GSC Spade Cutter
160068｜GSC

Spade Cutter


160410｜GFSH

Spade Front Auger Cutter


160240｜GRP2

Root Cutter Auger

G2CG Clog Clearing Head
127900｜G2CG

2" Clog Clearing Head, also available in 2½", 3", and 4"

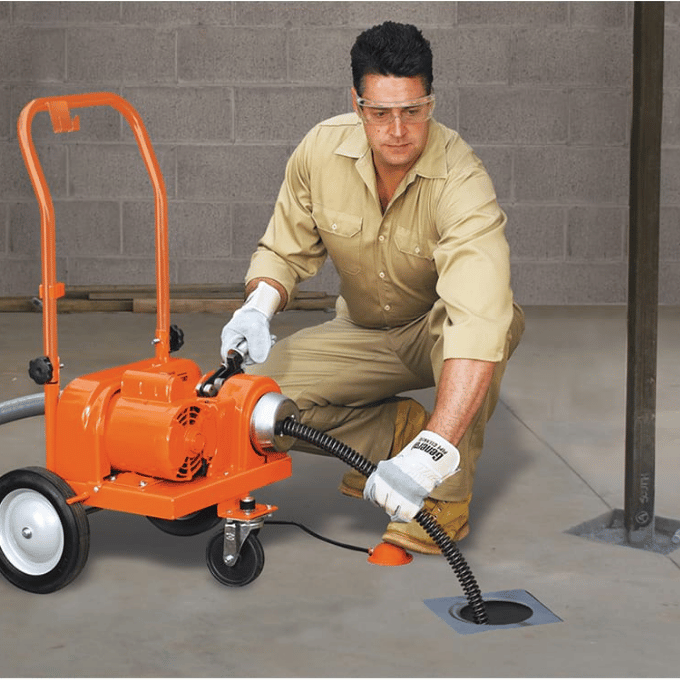

RodRunner Folding Drain Cleaning Machine Application
Applications
Applications
Suitable for cleaning and maintaining large 3"–10" drain lines and long runs, especially for deposits, roots, and tough main-line stoppages.
Residential Drain Systems

Suitable for residential main drains and larger outdoor drain lines.

Commercial Locations

Ideal for restaurants, commercial buildings, and public facilities.

Large Drain Lines

Designed for larger-diameter and longer-run professional drain cleaning

Roots and Deposits

Can be equipped with different cutters for roots, deposits, and other tough stoppages.
