Suitable for 1 1/2"–3" pipes｜1500 psi｜1.4 GPM｜1.2 HP｜Cleaning distance 50'｜Weight 10 kg.
Uses high-pressure water jetting with pulse technology to clear grease, sludge, and sand blockages. Lightweight and portable, ideal for vehicle-mounted and fast jobsite drain cleaning.
Uses high-pressure water jetting with pulse technology to clear grease, sludge, and sand blockages. Lightweight and portable, ideal for vehicle-mounted and fast jobsite drain cleaning.
Product Features
- High-Pressure Water Jetting: 1500 psi water pressure clears blockages while cleaning the pipe wall.
- Pulse Technology: Helps the hose slide around bends and travel farther for better cleaning efficiency.
- Lightweight and Portable Design: Only 10 kg, easy to carry and store in a service vehicle.
- Ground Fault Protection: Equipped with GFCI protection for improved electrical safety.
- Water-Sensing Auto Shut-Off: Automatically shuts off the motor when water is not flowing through the pump to protect the unit.
Model Specifications
Product Details
Technical Data
Product Specifications

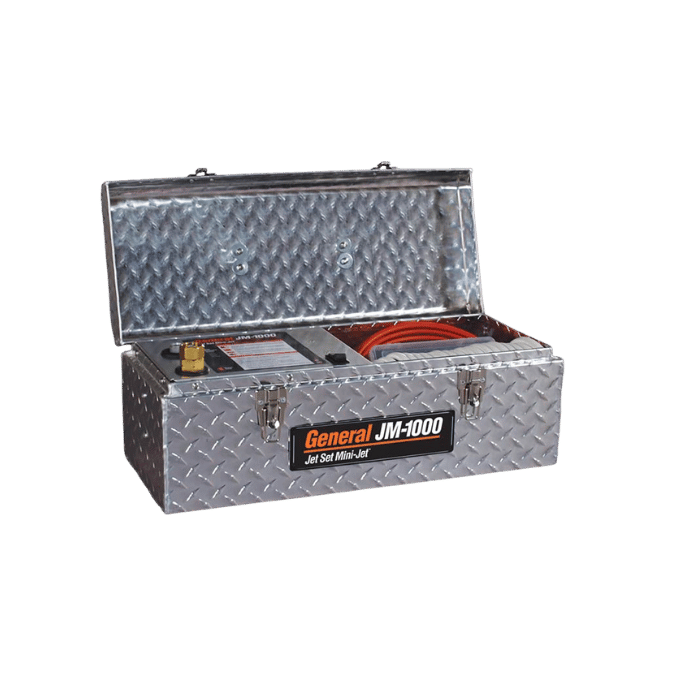

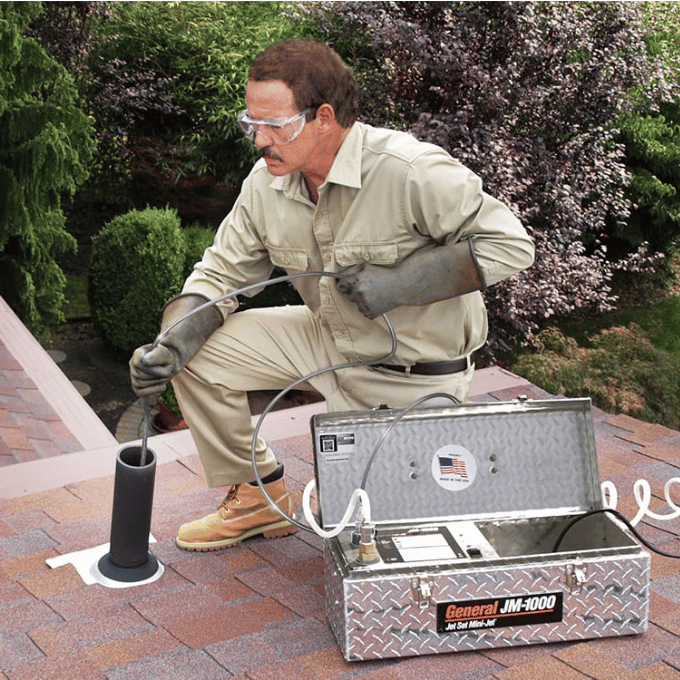

JM-1000 X Mini-Jet is a compact high-pressure water jet drain cleaner suitable for 1 1/2"–3" drain lines. It is designed to clear soft blockages such as grease, sand, sludge, and similar debris, making it suitable for residential, restaurant, kitchen, and small commercial applications.
Cleaning Range
1 1/2"–3" drain lines
Maximum Cleaning Distance
21 m / 50 ft
Motor Power
1.2 HP
Pressure
105.46 kg/cm²
Flow Rate
1.4 GPM
Current
13A
Dimensions
61 × 27 × 28 cm
Weight
10 kg
Efficient Cleaning for Small Drain Lines
High-pressure water jetting at 105.46 kg/cm², combined with a lightweight body, makes it suitable for drain cleaning jobs that require mobility, fast setup, and efficient on-site cleaning.
Features
Product Features
Built around high-pressure water jet cleaning, Vibra-Pulse propulsion, and compact portability to improve small drain line cleaning efficiency.
High-Pressure Water Cleaning
Uses high-pressure water to clear blockages and flush pipe walls, helping reduce residue buildup inside the line.

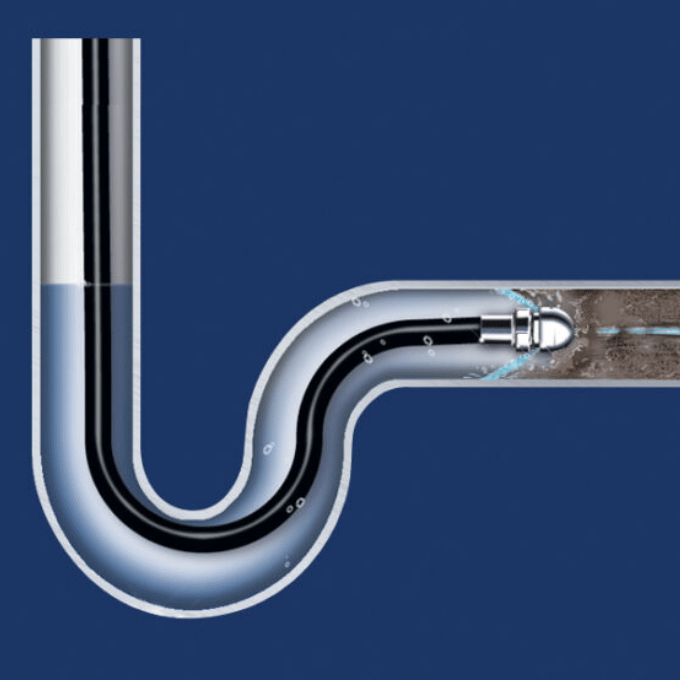

Vibra-Pulse Technology
Vibra-Pulse helps the hose slide through bends and travel farther, improving cleaning efficiency and operating smoothness.
Compact and Portable
At approximately 10 kg, the compact body is easy to carry, move, and store in a vehicle without taking up much space.
Protection
Safety Protection Design
Equipped with ground fault circuit interrupter protection and a water sensor that can automatically shut off the motor when water is not flowing through the pump, helping reduce the risk of equipment damage.
GFCI Protection
Improves jobsite electrical safety and helps reduce operating risks caused by abnormal electrical conditions.
Water Sensor Protection
When water is not flowing through the pump, the motor can shut off automatically to help protect the equipment.
Applications
Applications
Suitable for clearing soft blockages in small drain lines, especially in residential bathrooms, kitchens, restaurants, food courts, and similar locations.
Applicable Drain Lines
Suitable for 1 1/2"–3" drain lines, covering common pipe sizes in residential and small commercial applications.
Blockage Materials
Suitable for clearing grease, sand, sludge, ice, and other soft blockages while flushing the pipe wall at the same time.
Typical Locations
Can be used in bathrooms, kitchens, restaurants, food courts, and general drain maintenance applications.
