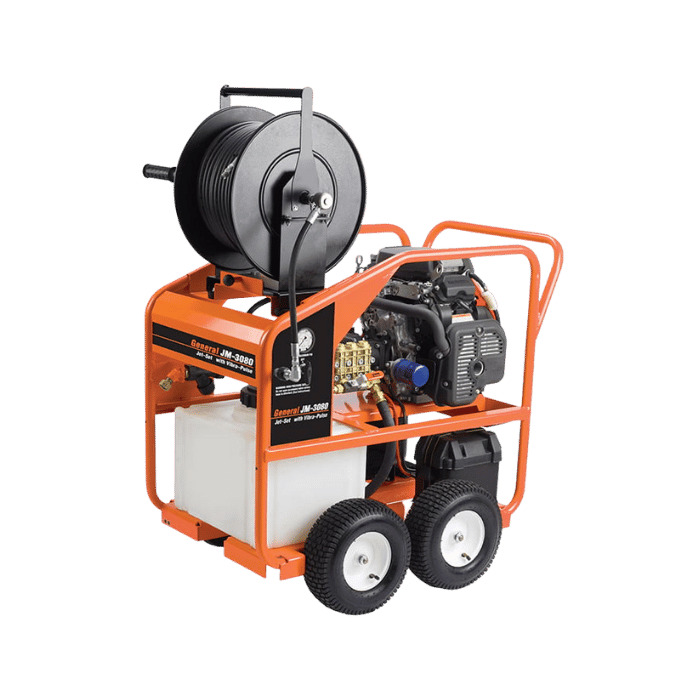

GENERAL-Gas-Water-Jetting-Machine-JM3080

GENERAL_Clean_Water Jet Drain Cleaners_JM3080_113360_1 (3)
GENERAL_Clean_Water Jet Drain Cleaners_JM1000_114040_1
U.S.A.
General Pipe
JM3080

Gas Water Jetting Machine

Suitable for 1 1/2"–8" drain lines｜614cc engine｜3000 psi｜8 GPM｜12-gallon water tank｜Cleaning distance up to approx. 300'｜Vibra-pulse® technology.
High-flow, high-pressure water jetting reaches deep into pipes to clear blockages and wash pipe walls, ideal for residential, restaurant, and industrial drain cle
Product Features
  • High-Pressure Water Cleaning: Powerful water jet clears blockages and flushes pipe walls.
  • Vibra-pulse® Technology: Helps the hose slide around bends and travel farther into the pipe.
  • Electric Start Design: Easier engine starting, with a 2:1 gear reducer to extend pump life.
  • Easy Maneuverability: Well-balanced body and rear-wheel tilt design make positioning easier.
  • 12-Gallon Water Tank: Provides extra water capacity for longer cleaning jobs.
  • Hardened Steel Nozzles: Wear-resistant nozzle surface improves service life.
  • Safety Protection Setup: Thermal relief valve, backflow check valve, and inlet filter help protect the pump.
Add to Inquiry
Tags
Show
＃8" ＃1 1/2"

Model Specifications

SKU
Model
Description
Weight
Remarks
113360
JM3080A

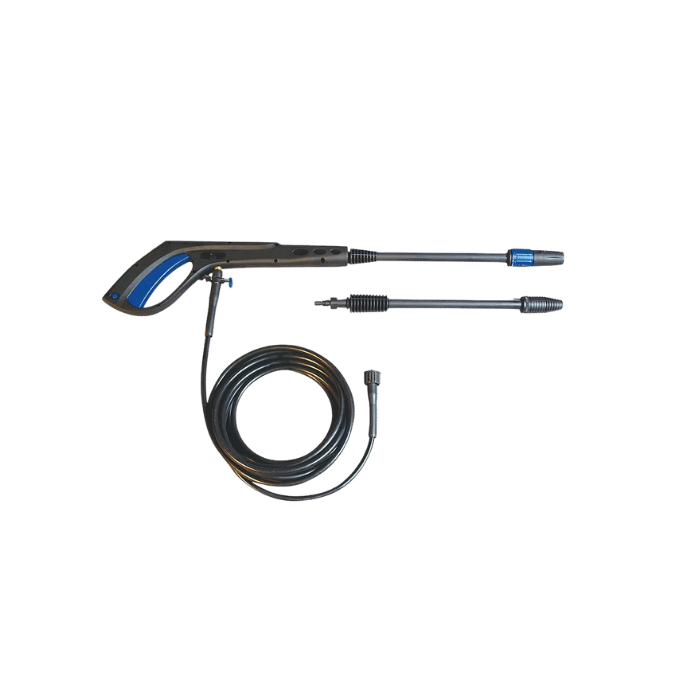

Powered by a 614cc engine with electric start, delivering 3000 psi / 8 GPM performance. Equipped with a triplex pump with pulse function, pressure gauge, 90 m hose reel, 12-gallon fixed water tank, and 4-wheel mobile design. Supplied with one 3/8" × 76 m (250') high-pressure hose, plus a 4-piece nozzle set including 15° angle nozzle, 15° penetrating nozzle, 40° angle nozzle, and spring leader nozzle. Also includes a high-pressure spray gun and nozzle cleaning tool for drain cleaning and high-pre
230 kg

Optional Battery: Battery is available separately and can be arranged upon request.

Product Details

Technical Data
Product Specifications
JM-3080 is a high-flow gasoline-engine high-pressure water jet drain cleaner suitable for 1 1/2"–8" drain cleaning applications. Powered by a 614 cc engine, 8 GPM high-flow output, and a 12-gallon water tank, it is suitable for long-duration, high-load, and large drainage line maintenance.
Cleaning Range
1 1/2"–8" drain lines
Maximum Cleaning Distance
300'
Engine
614 cc gasoline engine
Pressure
211 kg/cm²
Flow Rate
8 GPM
Dimensions
109 × 74 × 142 cm
Weight
170 kg
Tires
Four 13" tires
Water Tank Capacity
12 gallons
8 GPM High-Flow Output for Large Drain Lines and Long-Duration Work

Stable high-pressure water flow clears grease, sand, sludge, ice, and soft blockages. Choose 3/8", 1/4", or 1/8" hoses according to pipe diameter.

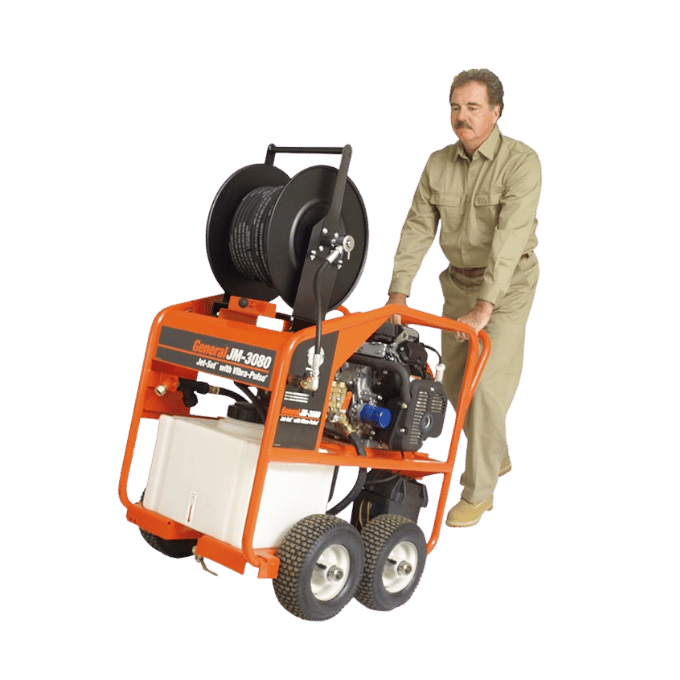

JM-3080 High-Pressure Water Jet Drain Cleaner
Hose Options
Hose Application Range
Select different hose sizes according to pipe diameter and cleaning distance, balancing large-line cleaning capacity with small-line bend navigation.
3/8" Hose
Cleans 4"–8" lines, up to approx. 91 m
1/4" Hose
Cleans 2"–4" lines, up to 60 m
1/8" Hose
Cleans 1 1/2"–2" lines, up to 22 m
Vibra-Pulse Technology
Features
Product Features
JM-3080 features high-pressure water cleaning, Vibra-Pulse® technology, electric start, a 12-gallon water tank, and stable flow design, making it suitable for professional drain cleaning and large-site maintenance work.
High-Pressure Water Cleaning

Uses high-pressure water to break through and remove blockages inside the pipe while cleaning pipe walls. It can also be used with a spray gun for floor and wall cleaning.

Vibra-Pulse® Technology

Helps the hose slide through bends and travel farther inside the pipe, improving drain cleaning efficiency.

Electric Start and Gear Reduction

Easy engine starting, with a 2:1 gear reducer that helps extend pump service life.

12-Gallon Water Tank

Provides a larger safety water reserve for long-duration cleaning work and higher-load jobsite applications.

Good Mobility

Well-balanced machine body with precise rear-wheel tilt design for easier movement, steering, and jobsite positioning.

Safety and Durability Design

Equipped with a thermal relief valve, backflow check valve, inlet filter, and hardened steel nozzles to help protect the pump and improve durability.

Applications
Applications
Suitable for 1 1/2"–8" drain lines, commonly used in pipelines, bathrooms, kitchens, restaurants, food courts, and high-use commercial drainage systems.
Restaurant and Food Court Drains

Suitable for grease, sludge, and drainage blockages commonly found in restaurants, food courts, and commercial kitchens.

Residential and Commercial Drain Lines

Can be used for bathroom, kitchen, and general drain line cleaning and maintenance.

Soft Blockage Removal

Suitable for grease, sand, sludge, ice, and other obstructions that can be flushed away by water flow.

Efficient Pipe Wall Cleaning

High-pressure water can flush pipe walls while clearing blockages, helping reduce residual buildup.

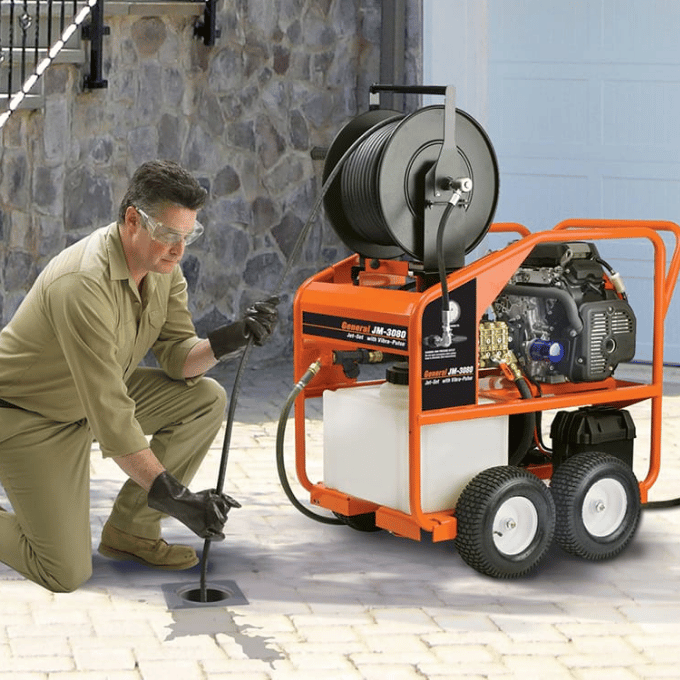

JM-3080 High-Pressure Water Jet Drain Cleaner Application
Video
Product Video
Watch the operation video to understand how JM-3080 works in real drain cleaning applications.
