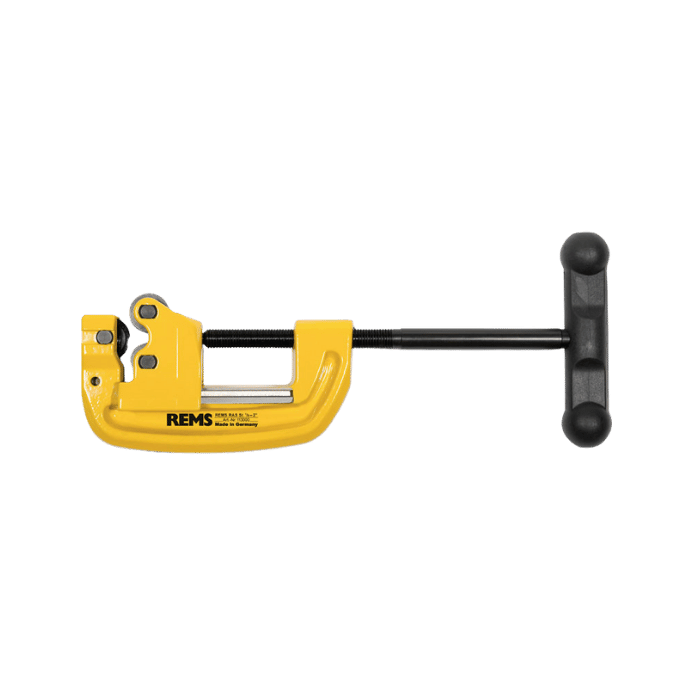

REMS Pipe-Cutter-RAS-St
Pipe cutting capacity 1/8"–2" and 1 1/4"–4" (10–60 mm, up to 115 mm)｜For steel pipes and various metal pipes｜Forged steel body｜German high-hardness cutter wheel｜High-precision square cutting.
Accurate, low-effort, and durable cutting performance for professional metal pipe cutting, installation, and maintenance work.
Accurate, low-effort, and durable cutting performance for professional metal pipe cutting, installation, and maintenance work.
Product Features
- Forged Steel Body: Rugged and durable construction for long-term professional jobsite use.
- High-Precision Square Cutting: Long spindle guide and rear pressure rollers help align the pipe for clean, square cuts.
- German High-Hardness Cutter Wheel: Special hardened steel cutter wheel offers excellent wear resistance and long service life.
- Wide Precision Cutter Design: Provides smooth and stable cutting for steel and various metal pipes.
- Wide Handle Design: Allows stronger and easier spindle turning for improved cutting efficiency.
- Professional Metal Pipe Application: Suitable for plumbing, piping installation, repair, and industrial pipe cutting work.
Model Specifications
Product Details
Technical Data
Product Specifications
This steel pipe cutter is suitable for cutting 1/8"–2" and 1 1/4"–4" pipes, with cutting capacity from 10–60 mm up to 115 mm. Built with a forged steel body, long spindle guide, robust rear pressure rollers, and precision German-made cutting wheels, it is designed for accurate square cutting of steel and metal pipes.
Cutting Capacity
1/8"–2", 1 1/4"–4" / 10–60 mm, 115 mm
Applicable Materials
Steel pipes, metal pipes, and pipes requiring high-precision cutting
Body Material
Forged steel
Guiding Structure
Long spindle guide and robust rear pressure rollers for pipe alignment
Cutting Wheel
Wide, precision German-made cutting wheel for square cuts
Long Guide and Rear Pressure Rollers for Better Pipe Alignment and Square Cuts
The key challenge in steel pipe cutting is not simply cutting through the pipe, but achieving a stable, square cut with less post-processing. The long spindle guide and rear pressure rollers help keep the pipe properly aligned, while the high-hardness cutting wheel supports clean and accurate cutting in pipework and industrial maintenance tasks.
Cutting Wheels
Cutting Wheel Specifications
Select the correct cutting wheel according to pipe size and wall thickness. For thicker pipe walls, the proper cutting wheel specification is essential to maintain cutting efficiency and reduce premature wear.
341614
St 1/8–4", s8｜For 1/8–2" or 1 1/4–4", wall thickness ≤ 8 mm
381622
St 1–4", s12｜For 1 1/4–4", wall thickness ≤ 12.5 mm
Do Not Select Cutting Wheels by Diameter Alone — Wall Thickness Matters
Choosing a cutting wheel only by pipe diameter while ignoring wall thickness can lead to excessive feed resistance, faster wheel wear, and unstable cutting. Select s8 or s12 according to the actual pipe diameter and wall thickness to maintain cutting efficiency and wheel life.
Features
Product Features
Designed around forged steel durability, precise guiding, rear pressure roller alignment, German-made cutting wheels, and an ergonomic wide handle for professional pipe cutting applications.
Forged Steel Body
Forged steel construction provides high durability and long service life for jobsite and industrial use.
Guided Alignment Design
Long spindle guide and robust rear pressure rollers help align the pipe and maintain cutting accuracy.
German-Made Precision Wheel
Wide and precise cutting wheel supports square cuts and stable cutting performance.
Wide Handle Design
Wide handle allows stronger force during spindle rotation, improving operation and job efficiency.
High-Hardness Steel Wheel
REMS special high-hardness steel cutting wheel provides high wear resistance and longer service life.
High-Precision Cutting
Suitable for professional pipe cutting work requiring square, stable, and high-quality cuts.
Applications
Applications
Suitable for cutting steel pipes, metal pipes, and other pipe materials requiring high precision. Widely used in construction, pipework, industrial maintenance, equipment installation, and professional environments requiring accurate square cuts.
Construction Work
Suitable for on-site cutting of steel and metal pipes in construction jobsites.
Pipework
Can be used for piping installation, pipe processing, and tasks requiring stable square cuts.
Industrial Maintenance
Suitable for equipment repair, pipe replacement, and metal pipe cutting in industrial environments.
