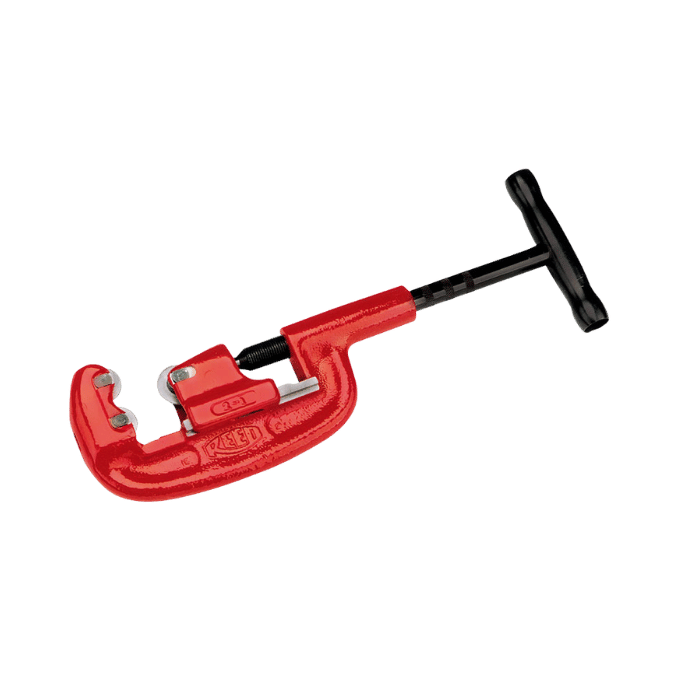

REED Pipe-Cutter-A-S-series
Pipe cutting capacity up to 6"｜Suitable for steel, ductile cast iron, stainless steel, and cast iron pipes｜Replaceable rollers and cutter wheels｜Manual or powered operation｜Five sizes available.
Product Features
- Manual / Powered Operation: Can be used manually or with powered equipment according to jobsite needs.
- Large Handle Design: Wide handle provides better leverage for improved cutting efficiency and easier operation.
- Replaceable Rollers and Cutter Wheels: Rollers can be replaced with cutter wheels to convert into a three-wheel pipe cutter.
- Multi-Material Application: Suitable for steel, ductile cast iron, stainless steel, and cast iron pipes.
- Stable Clean Cutting: Ideal for pipework requiring accurate and smooth cutting results.
- Five Sizes Available: Choose the suitable model according to pipe size and jobsite requirements.
Tags
Show
Model Specifications
Product Details
Technical Data
Product Specifications
This pipe cutter is suitable for cutting 1/8"–6" pipes, with a working range of 10–150 mm and five model options. Different cutting wheels can be selected according to pipe material, including steel pipes, ductile cast iron pipes, stainless steel pipes, and cast iron pipes. It can be operated manually or with power tools for fast, clean, and efficient professional pipe cutting.
Cutting Capacity
1/8"–6" / 10–150 mm
Model Options
Five specifications available
Operation
Manual operation or use with power tools
Applicable Materials
Steel pipe, ductile cast iron pipe, stainless steel pipe, and cast iron pipe
Structural Feature
Rollers and cutting wheels are replaceable; can be converted into a three-wheel pipe cutter
Manual or Powered Operation for Wide Pipe Range and Multi-Material Cutting
The value of this cutter lies in flexibility and application range. It supports pipe sizes from 1/8" to 6" and allows different cutting wheels for stainless steel, steel pipe, and ductile cast iron pipe. For higher jobsite efficiency, it can also be used with power tools to reduce operator fatigue during long cutting tasks.
Cutting Wheels
Cutting Wheel Specifications
Cutting wheels should be selected according to pipe material. Stainless steel pipes require the corresponding S-type cutting wheels, while steel pipes and ductile cast iron pipes require the standard steel/cast iron pipe cutting wheels to maintain cutting efficiency and reduce premature wear.
33110｜F-3S
For stainless steel pipes
33100｜F-514
For steel pipes and ductile cast iron pipes
33130｜F-229S
For stainless steel pipes
33120｜F-515
For steel pipes and ductile cast iron pipes
33150｜F-367S
For stainless steel pipes
33145｜F-367
For steel pipes and ductile cast iron pipes
Do Not Mix Cutting Wheels — Stainless Steel and Steel Pipes Require Different Wheels
Stainless steel pipes have different hardness and cutting behavior. Using the wrong cutting wheel may lead to poor feed, rapid wheel wear, or unstable cut quality. Select the cutting wheel by actual pipe material, not only by pipe diameter.
Features
Product Features
Designed around manual/powered dual operation, large handle design, replaceable rollers and cutting wheels, and multi-material cutting capability for professional piping and maintenance jobsites.
Manual or Powered Operation
Can be operated manually or with power tools depending on jobsite needs for fast and clean pipe cutting.
Large Handle Design
Large handle allows greater cutting force, improving job efficiency and ease of operation.
Replaceable Rollers and Wheels
Rollers can be replaced with cutting wheels to convert the tool into a three-wheel pipe cutter.
Multi-Material Use
With the proper cutting wheel, it can cut steel pipes, ductile cast iron pipes, stainless steel pipes, and cast iron pipes.
Five Model Options
Five specifications are available to match different pipe sizes and jobsite needs.
For Large Pipe Cutting
Supports pipe cutting up to 6" / 150 mm for larger pipework and maintenance tasks.
Applications
Applications
Suitable for cutting steel pipes, ductile cast iron pipes, stainless steel pipes, and cast iron pipes. Widely used in construction, industrial maintenance, pipe installation, equipment service, pipe replacement, and professional jobsites requiring accurate pipe cutting.
Construction Work
Suitable for on-site cutting of steel pipes, cast iron pipes, and stainless steel pipes.
Industrial Maintenance
Can be used for equipment repair, pipe replacement, and on-site pipe processing.
Pipe Installation
Suitable for pipework, piping installation, and professional tasks requiring clean and accurate cuts.
