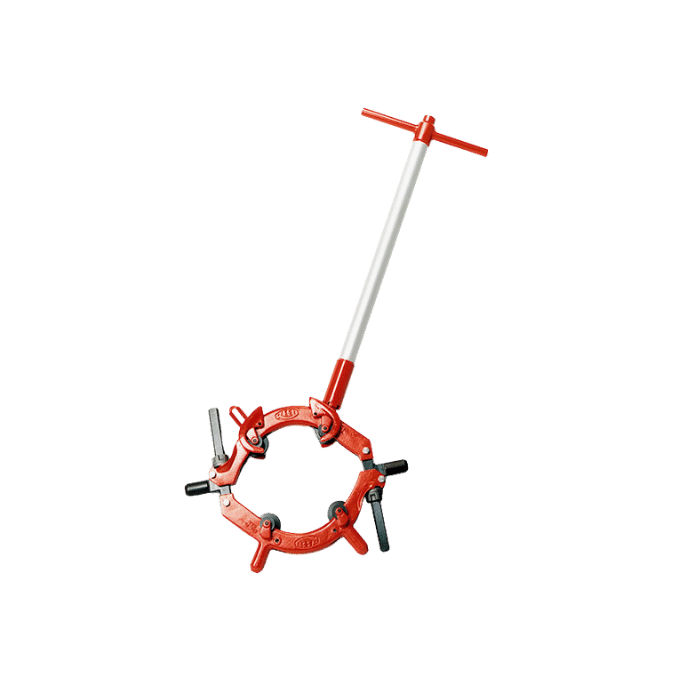

REED Rotary-Cutter-RC-series
Cutting range 20"–36"｜Suitable for steel, stainless steel, ductile cast iron, and cast iron pipes｜Cold cutting technology｜45°–60° handle rotation｜Multiple professional cutter wheels available.
Product Features
- Large-Diameter Cutting Capacity: Suitable for 20"–36" pipes for large pipeline installation and repair.
- Small-Angle Fast Cutting: Cuts quickly with only 45°–60° handle rotation.
- Cold Cutting Technology: Spark-free operation for environments where sparks, flame, or noise should be avoided.
- Multiple Cutter Wheel Options: RCS8-36 for steel pipe, RCI8-30 for ductile cast iron and cast iron pipes, and RCX for steel pipe wall thickness up to approx. 19 mm.
- Restricted-Space Application: Suitable for trenches, underwater work, explosive environments, and cutting pipes in stacks.
- Rugged Durable Structure: Built for harsh environments and long-hour heavy-duty operation.
- Multi-Application Use: Ideal for industrial piping, municipal engineering, construction, and special maintenance work.
Model Specifications
Product Details
Technical Data
Product Specifications
This large rotary pipe cutter is designed for cutting 20"–36" pipes, with a working range of 476–915 mm. It supports steel pipes, stainless steel pipes, ductile cast iron pipes, and cast iron pipes. Steel pipe cutting thickness reaches up to 19 mm when used with the RCX cutting wheel. For pipe sizes 16" and above, only approx. 20 cm clearance is required, with a 45°–60° rotation angle for safe cold cutting in large-scale municipal, industrial, and special environments.
Cutting Capacity
20"–36" / 476–915 mm
Applicable Materials
Steel pipe, stainless steel pipe, ductile cast iron pipe, and cast iron pipe
Steel Pipe Thickness
Up to 19 mm with RCX cutting wheel
Clearance Requirement
Only approx. 20 cm clearance for pipe sizes ≥ 16"
Rotation Angle
45°–60°
Application Environment
Trenches, underwater work, explosive environments, stacked pipe cutting, and large pipeline projects
20"–36" Large-Diameter Cutting with Low-Clearance Cold Cutting
The core value of this tool is not ordinary pipe cutting, but handling extremely large pipe sizes, limited clearance, and high-safety working conditions. The 45°–60° small rotation angle reduces the required operating space, while cold cutting is suitable for quiet areas, spark-sensitive environments, trenches, underwater work, and explosive environments.
Conversion Accessories
Conversion Accessories
Conversion accessories allow configuration between RC30 and RC36, improving equipment flexibility and making it easier to adapt to different large-diameter pipe cutting requirements.
03267｜RC30CONV
Converts RC36 to RC30
03268｜RC36CONV
Converts RC30 to RC36
Conversion Accessories Reduce Idle Tools and Duplicate Investment
For customers who occasionally need to work across different large pipe sizes, conversion accessories can be more efficient than purchasing a complete additional tool. For municipal repair, engineering contractors, and pipe storage processing, this helps reduce equipment investment pressure and improve tool utilization.
Cutting Wheel Guide
Cutting Wheel Selection Guide
Large-diameter pipe cutting requires the correct cutting wheel according to pipe material and wall thickness. RCS8-36 is designed for steel pipe; RCI8-30 is designed for ductile cast iron and cast iron pipes; RCX provides optimal steel pipe cutting performance for wall thickness up to 19 mm.
RCS8-36
Designed for steel pipes
RCI8-30
Designed for ductile cast iron and cast iron pipes
RCX
Best steel pipe cutting performance, suitable for wall thickness up to 19 mm
The Risk in Large-Pipe Cutting Is Not Diameter — It Is Wrong Wheel Selection
Steel pipe, ductile cast iron pipe, and cast iron pipe have different cutting behaviors. Using the wrong cutting wheel can cause difficult feeding, lower cutting efficiency, faster wheel wear, and unstable cut quality. For large pipeline work, confirm material, wall thickness, and whether RCX heavy-duty cutting wheels are required.
Features
Product Features
Designed around extra-large pipe cutting, cold-cutting safety, low-clearance operation, stacked-pipe cutting, and durability in harsh environments for large municipal, industrial, and special jobsite applications.
Efficient Cutting
Only 45°–60° handle rotation is required to quickly cut large-diameter pipes.
Cold-Cutting Technology
Suitable for environments requiring spark avoidance or low-noise operation, improving safety in special applications.
Full-Size Cutting Wheels
RCS8-36 for steel pipes; RCI8-30 for ductile cast iron and cast iron pipes.
RCX Heavy-Duty Wheel
Provides improved steel pipe cutting performance for pipe wall thickness up to 19 mm.
Wide Environment Use
Can be used in trenches, underwater work, explosive environments, and other special jobsite conditions.
Cuts Stacked Pipes
Can cut pipes in stacked conditions, improving flexibility for storage yards and jobsite processing.
Durable Structure
Robust structure handles harsh environments and maintains high cutting performance over long-term use.
Low-Clearance Large-Pipe Work
For pipe sizes above 16", only approx. 20 cm clearance is required for large existing pipeline repair.
Applications
Applications
Suitable for large industrial projects, municipal water supply and drainage pipelines, construction sites, special safety environments, underwater work, explosive environments, and storage-yard pipe processing.
Industrial Engineering
Suitable for cutting steel, stainless steel, cast iron, and ductile cast iron pipes in large industrial projects.
Municipal Engineering
Used for repair, installation, and replacement of large municipal pipelines such as water supply and drainage pipes.
Construction Work
Applicable to demanding construction sites for fast large-diameter pipe cutting.
Special Environments
Suitable for safe cutting in quiet areas, underwater work, or explosive environments.
Storage-Yard Processing
Can process stacked pipes, improving cutting efficiency and operational flexibility.
Existing Pipeline Repair
Suitable for large existing pipelines, low-clearance environments, and confined working areas.
