REMS-EVA-Hand-Pipe-Threader

REMS_EVA_520016
REMS_EVA_520016_1
REMS_EVA_520016_2
Germany
REMS
EVA

Hand Pipe Threader

Pipe threading capacity 1/8"–2"｜Threaded rod threading 1/4"–1"｜NPT pipe thread and threaded rod options available｜Quick-change die heads｜Plastic-steel ratchet handle｜Lightweight body.
Product Features
  • One-Pass Pipe Threading: Suitable for 1/8"–2" pipes, enabling fast pipe threading and improved jobsite efficiency.
  • Threaded Rod Capability: Supports 1/4"–1" threaded rods for different threading requirements.
  • Quick-Change Die Heads: Die heads can be changed quickly according to size for better jobsite flexibility.
  • Lightweight Body Design: Easy to carry and move, ideal for field installation and repair work.
  • Durable Ratchet Handle: Plastic-steel ratchet handle provides smooth operation and long service life.
  • Multiple Options Available: NPT pipe thread and threaded rod specifications are available for different applications.
Add to Inquiry
Tags
Show
＃1 1/4" ＃Galvanized Steel Pipe ＃7/8" ＃2" ＃5/8" ＃1" ＃3/8" ＃3/4" ＃1/2"

Model Specifications

SKU
Model
Description
Weight
Remarks
520008
R 1/2~3/4"　
1/2 ~3/4" (2 pcs) with handle set
520003
R 3/8~1 1/4"
3/8 ~1-1/4" (5 pcs) with handle set
520015
R 1/2~1 1/4"
1/2 ~1-1/4" (4 pcs) with handle set, including tool case

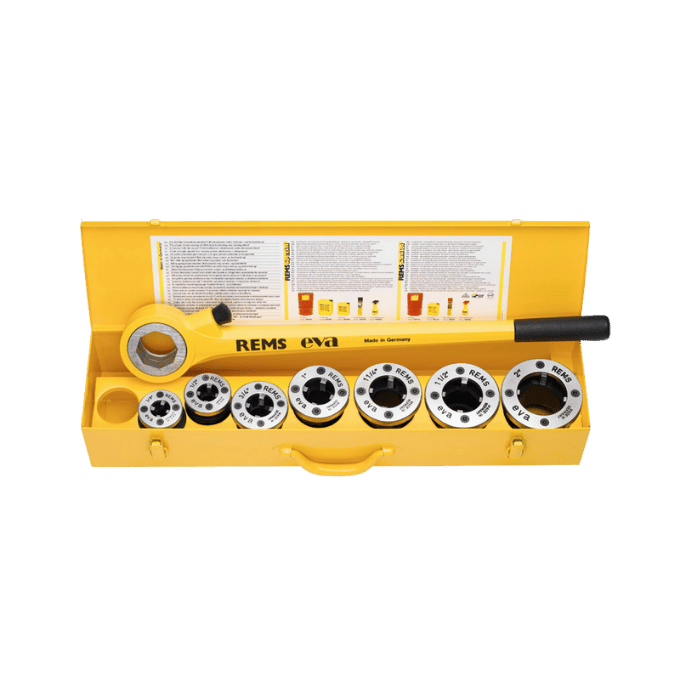

520016
R 3/8~2"
3/8 ~2" (7 pcs) with handle set, including tool case
520017
R 1/2~2"
1/2 ~2" (6 pcs) with handle set, including tool case

NPT and threaded rod specifications are available.

Product Details

Technical Data
Product Specifications
Manual ratchet pipe threader suitable for 1/8" to 2" pipe threading and 1/4" to 1" threaded rod applications. It supports one-pass threading and quick die head replacement, with a durable plastic-steel ratchet handle for efficient pipe threading and thread repair work on site.
Pipe Threading Capacity
1/8"–2" pipes, one-pass threading
Threaded Rod Capacity
1/4"–1" threaded rods
Die Head Design
Quick die head replacement for better jobsite efficiency
Handle Design
Durable plastic-steel ratchet handle, suitable for all die heads
Main Application
Pipe threading, threaded rod work, threaded connection, and repair work
Quick Die Head Replacement for More Efficient Threading Work

Die heads can be quickly changed according to pipe size or threaded rod requirements. Combined with the ratchet handle, the tool supports stable operation for plumbing, construction, and maintenance applications.

Features
Product Features
Designed around manual ratchet operation, quick die head replacement, and multi-size threading capability for on-site pipe threading and thread repair work.
One-Pass Pipe Threading

Suitable for 1/8" to 2" pipe threading, delivering stable and consistent thread formation.

Threaded Rod Capability

Can be used for 1/4" to 1" threaded rods, meeting different jobsite size requirements.

Quick Die Head Replacement

Supports fast die head changes to reduce adjustment time and improve work efficiency.

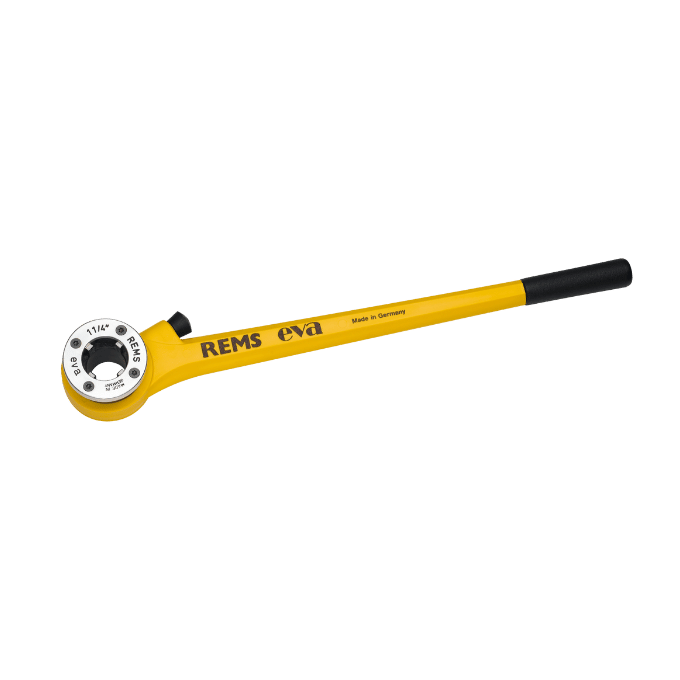

Plastic-Steel Ratchet Handle

Durable handle compatible with all die heads, providing stable force and control during operation.

Applications
Applications
Suitable for plumbing work, construction projects, pipe threading, threaded rod applications, on-site maintenance, and thread repair on new or existing pipes.
Plumbing Work

Suitable for 1/8" to 2" pipe threading in plumbing installation and repair work.

Construction Projects

Can be used on construction sites for pipe threading and threaded connection work.

Repair and Maintenance

Useful for thread repair, pipe replacement, and on-site processing of new or existing pipes.

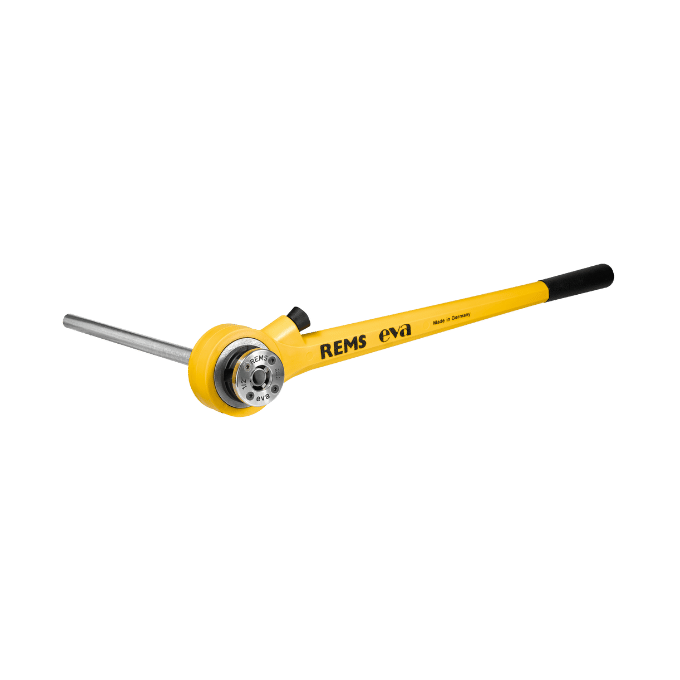

Threaded Rod Work

Handles 1/4" to 1" threaded rods for threaded rod and fastening applications.
