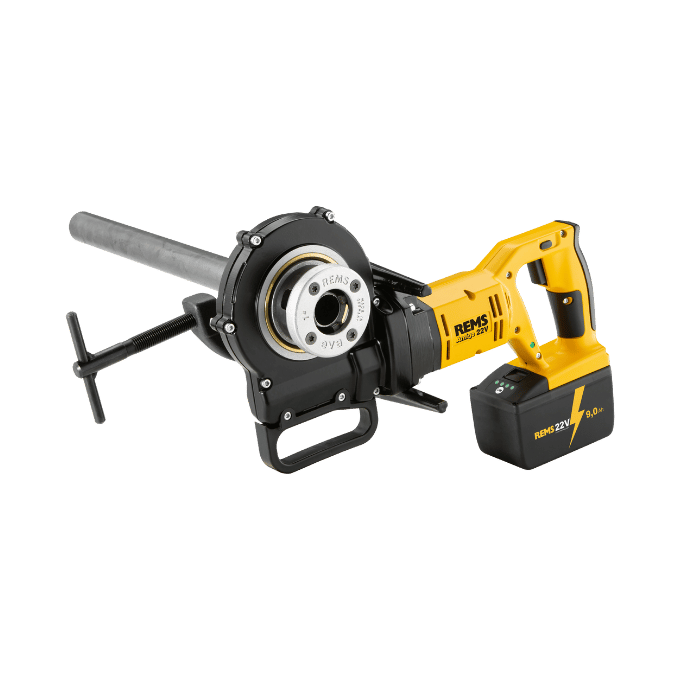

Elec-Pipe-Threader-REMS-Amigo-22V

REMS_Amigo22v_530015
REMS_Amigo22v_530015_1
Germany
REMS
Amigo 22V

Elec. Pipe Threader

Threading capacity 1/8"–1"｜21.6V lithium-ion battery｜Approx. 52 threads on 3/4" pipe per full charge｜Quick-change die heads｜No large stand required｜Approx. 5.6 kg with battery.
Lightweight cordless design with efficient threading performance, ideal for overhead work, plumbing jobsites, and field repair applications.
Product Features
  • Lightweight Cordless Design: Approx. 5.6 kg with battery, easy to carry for overhead work and jobsites without power supply.
  • 21.6V High-Performance Battery: 9.0Ah lithium-ion battery provides approx. 52 threading operations on 3/4" pipe per full charge.
  • Fast Charging System: Quickly restores battery power for better continuous work efficiency.
  • Pulse Charging Technology: Helps reduce memory effect, extend battery life, and maintain optimal performance.
  • Quick-Change Die Heads: Allows fast die head replacement for different pipe sizes.
  • Maintenance-Free Drive: Reduces maintenance needs, downtime, and service costs.
  • Stable Motor Output: Delivers consistent threading performance and reliable thread quality.
  • No Large Stand Required: Works with a pipe clamp only, making on-site threading simpler and more convenient.
Add to Inquiry
Tags
Show
＃Galvanized Steel Pipe ＃1" ＃1/2" ＃3/4"

Model Specifications

SKU
Model
Description
Weight
Remarks
530015
Akku-Amigo 22 V

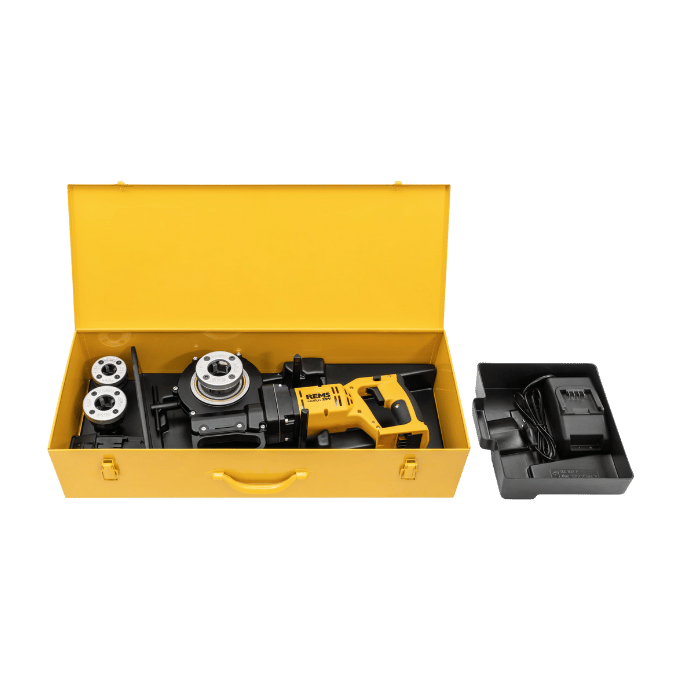

Supplied with 1/2", 3/4", and 1" die heads (3 pcs); Battery system: 21.6 V / 9.0 Ah lithium battery; Charger: 110V / 60Hz, 70 W; Included: pipe clamp and tool case.
5.6kg
571583
Battery: 21.6 V
Battery: 21.6 V, 9.0 Ah
1.1kg
571575
R110
Charger: 110V / 60Hz, 70 W
0.5kg
110100
NIPPELSPANNER
1/2" internal expanding short pipe clamp
110200
NIPPELSPANNER
3/4" internal expanding short pipe clamp
110300
NIPPELSPANNER
1" internal expanding short pipe clamp

Product Details

Technical Data
Product Specifications
REMS Amigo 22V cordless portable threader is suitable for 1/8" to 1" pipe threading and 1/4" to 1" threaded rod applications. With forward / reverse control and 500W output, it enables work without jobsite power supply, making it especially suitable for elevated work, pipe shafts, maintenance, and locations where power access is inconvenient.
Pipe Threading Capacity
1/8"–1" / 16–32 mm
Threaded Rod Capacity
1/4"–1" / 6–30 mm
Speed
27–20 rpm
Motor Power
500W
Forward / Reverse Control
Yes
Main Application
Cordless pipe threading, threaded rod work, repair, and on-site installation
22V Cordless Design Without Jobsite Power Limitations

Suitable for elevated work, confined spaces, and locations where power access is inconvenient. The cordless body improves mobility and helps installers complete threading work quickly during repair, renovation, and piping installation.

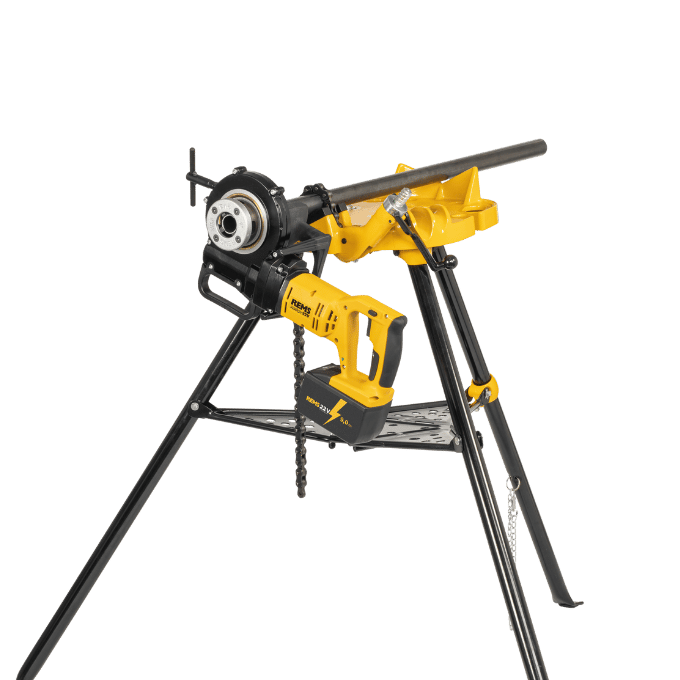

REMS Amigo 22V cordless portable threader

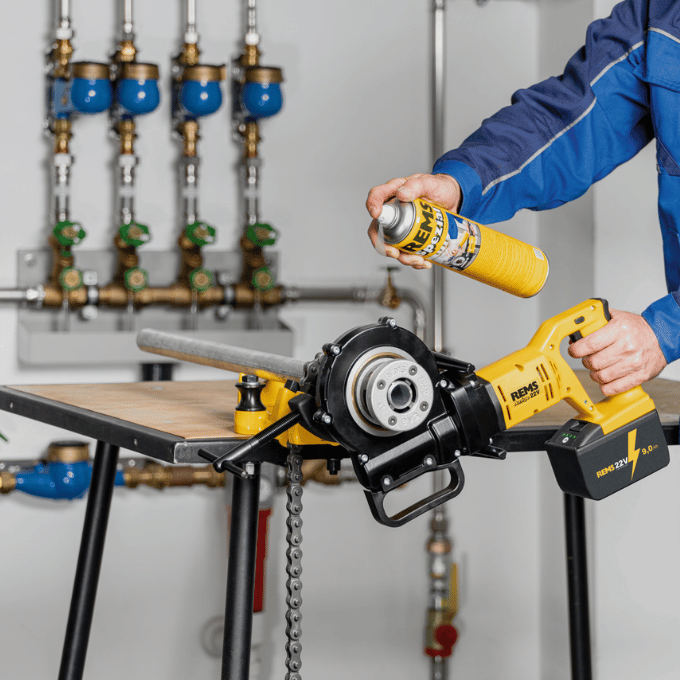

REMS Amigo 22V application
Features
Product Features
Designed around 22V cordless mobility, forward / reverse control, and a portable body, suitable for elevated work, pipe repair, and jobsites where corded power is inconvenient.
Cordless Mobility

No power cord limitation, suitable for elevated areas, pipe shafts, outdoor work, and locations without convenient power access.

Portable Lightweight Design

Easy to carry for mobile repair, renovation work, and multi-location jobsite applications.

Forward / Reverse Control

Forward and reverse control supports threading, backing out, and on-site operation adjustment.

Pipe and Rod Capability

Supports 1/8" to 1" pipes and 1/4" to 1" threaded rods for different jobsite needs.

Ideal for Repair Work

Provides flexible threading capability for existing piping, confined spaces, and partial renovation work.

Stable Output

500W output with 27–20 rpm speed supports on-site pipe threading applications.

Applications
Applications
Suitable for elevated work, plumbing, pipe repair, maintenance, renovation, and jobsites where power access is inconvenient. Especially useful for threading work requiring a lightweight, portable, and highly mobile tool.
Elevated Work

Lightweight cordless design is suitable for elevated work or areas where external power is inconvenient.

Plumbing Work

Suitable for 1/8" to 1" pipe threading, supporting quick installation and on-site repair.

Repair and Maintenance

Suitable for pipe repair, equipment updates, partial retrofit, and renovation work.

Mobile Service Work

Cordless portable design is suitable for engineers and service teams requiring high jobsite mobility.
