Water-Leak-Detector-HG10

KS_inspection_Water-Leak-Detector_HG10
Japan
KS
HG10

Water Leak Detector

Weight 800 g｜9 filter combinations｜Frequency range 100–1200 Hz｜Large dial + angled ergonomic buttons｜Large display for sound frequency and battery level.
Product Features
  • Professional Acoustic Leak Detection: Captures leak sounds in piping systems to help locate leakage points quickly.
  • 9 Filter Combinations: Select suitable frequency settings according to pipe material and site conditions.
  • 100–1200 Hz Frequency Range: Suitable for various pipe materials and leak sound characteristics.
  • Ergonomic Operation: Large dial and angled button design provide easier long-hour operation.
  • Clear Large Display: Shows sound frequency and remaining battery level for easier monitoring.
  • Lightweight and Easy to Use: Approx. 800 g for convenient field transport and on-site inspection.
  • Multi-Material Application: Settings can be adjusted for cast iron, vinyl, and other pipe materials.
Add to Inquiry
Tags
Show

Model Specifications

SKU
Model
Description
Weight
Remarks
HG10
HG10

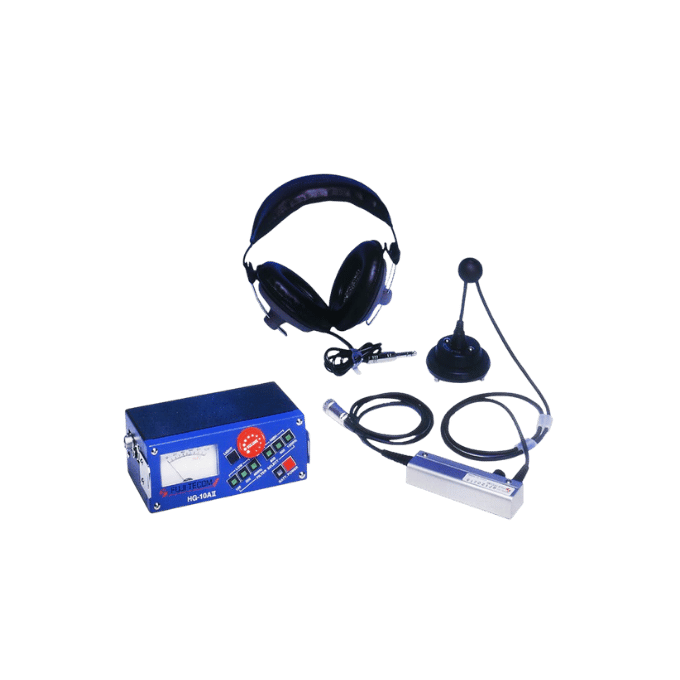

Headset, tool case, loudspeaker, and sensor, one set each.
1.3kg

Product Details

Product Overview
Professional Acoustic Water Leak Detector
This professional acoustic water leak detector is designed for locating leaks in cast iron, vinyl, galvanized steel and other underground or concealed pipelines. With an ergonomic body, a weight of approximately 800 g, angled control buttons, a large control knob and an easy-to-read display panel, it allows operators to clearly monitor sound frequency and remaining battery level. The built-in 9 filter combinations allow quick adjustment according to pipe material, jobsite conditions and leak sound frequency, helping technicians identify leak locations more accurately.
Product Type
Professional acoustic water leak detector
Weight
800 g
Dimensions
170 W × 70 D × 103 H mm
Design
Ergonomic design for comfortable one-hand operation
Control Interface
Angled buttons and large control knob for intuitive jobsite operation
Display Panel
Large display panel showing sound frequency and battery level
Filter Combinations
9 filter combinations for different detection requirements
Professional leak detection is not only about amplifying sound, but also keeping the right frequency

Jobsites are often affected by traffic noise, machine noise, water flow and other background interference. The value of a professional acoustic leak detector lies in its ability to filter sound frequencies through different combinations, allowing technicians to adjust the listening range based on pipe material and site conditions, reduce misjudgment and narrow down the repair or excavation area.

Filter Settings
Filter Combinations
Low-frequency and high-frequency filters can be combined according to pipe material and leak sound characteristics. Pipe material, burial depth and ambient noise all affect sound transmission, making the filter system a core function for improving locating accuracy.
Low Frequency Range
100 Hz, 200 Hz
High Frequency Range
400 Hz, 600 Hz, 800 Hz, 1200 Hz
Available Combinations
100–600 Hz, 100–800 Hz, 100–1200 Hz, 200–600 Hz, 200–800 Hz, 400–600 Hz, 400–800 Hz, 400–1200 Hz and other combinations, 9 in total
Low frequencies support deeper or longer-distance detection; high frequencies help capture local details

In practical leak detection, lower frequencies generally travel farther and are useful for initial assessment of underground or distant leaks. Higher frequencies are more effective for local detail and close-range pinpointing. With 9 filter combinations, the operator can progressively narrow down the leak area based on real site conditions.

Features
Product Features
Built around high-performance acoustic leak detection, ergonomic operation, 9 filter combinations, a large display panel and jobsite portability, this unit is suitable for professional leak detection, pipe maintenance and underground pipeline locating.
High-Performance Acoustic Detection

Helps technicians listen for and evaluate leak sounds, improving leak locating efficiency.

Ergonomic Design

Stable one-hand operation reduces hand fatigue during long detection work.

9 Filter Combinations

Adjustable according to pipe material, environment and sound frequency for better field judgment.

Large Control Knob

Easy to adjust quickly in outdoor or construction-site environments.

Angled Button Layout

Designed for handheld operation, improving ease of use on site.

Large Display Panel

Clearly shows sound frequency and battery level for easy monitoring during detection.

Applications
Applications
Suitable for residential buildings, commercial properties, industrial facilities, water supply systems, underground pipelines, concealed pipework and leak locating across various pipe materials, including cast iron, vinyl and galvanized steel pipes.
Pipeline Leak Detection

Suitable for detecting leaks in cast iron, vinyl, galvanized steel and other pipe materials.

Residential & Commercial Buildings

Ideal for locating leak issues in homes, offices and public buildings.

Industrial Pipe Systems

Can be used for acoustic leak assessment in industrial facilities and equipment pipelines.

Pipe Repair Locating

Helps determine the repair location and reduce unnecessary excavation or surface damage.

Underground Pipe Detection

Suitable for precise leak detection and location assessment in underground or concealed areas.

On-Site Inspection

Useful for water supply systems, building maintenance and pipeline inspection routines.
