General Digital Pipe Locator Hot-Spot

GENERAL_inspection_Gen-Eye_Pipe-Locator_Hot-Spot_185680
GENERAL_inspection_Gen-Eye_Pipe-Locator_Hot-Spot_185680_3
U.S.A.
General Pipe
Hot-Spot

Digital Pipe Locator

GENERAL 數位精準尋測器 Hot-Spot結合512Hz/33KHz攝影鏡頭尋測與1–65KHz管線、50/60Hz電纜定位功能，可精準檢測塑膠管至6米、鑄鐵管至3米深度。LCD顯示方向箭頭、深度、圖像及電量，IP65防塵防水，輕量化設計續航30小時，適用於地下管道與電纜快速定位。
Product Features
  • 高科技數位技術：精確定位管道、攝像頭、傳聲器等目標，簡單易用。
  • 自動背光LCD顯示：箭頭顯示指引方向，輕鬆找到正確位置，速度更快、精度更高。
  • 堅固耐用：IP65防塵防水，通過1米摔落測試，螢幕通過18"鋼球落下測試。
  • 適用範圍廣：適用於尋測埋設地底下的鑄鐵、陶瓷或塑膠管，並可搭配不同發送器達到不同深度的檢測。
Add to Inquiry
Tags
Show

Model Specifications

SKU
Model
Description
Weight
Remarks
185680
GL-100
Pipe locator and carrying bag.
2.2kg
185280
GL-130

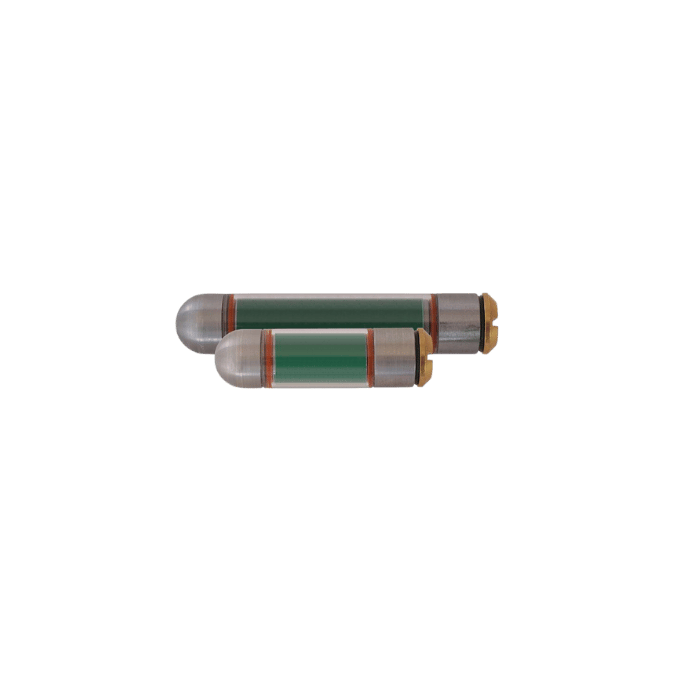

Transmitting probe (10), capable of locating cast iron pipes up to 10 ft deep, or clay and plastic pipes up to 15 ft deep.
2.2kg
185295
GL-150
Transmitting probe (20), capable of locating cast iron pipes up to 20 ft deep, or clay and plastic pipes up to 30 ft deep.
2.2kg

Product Details

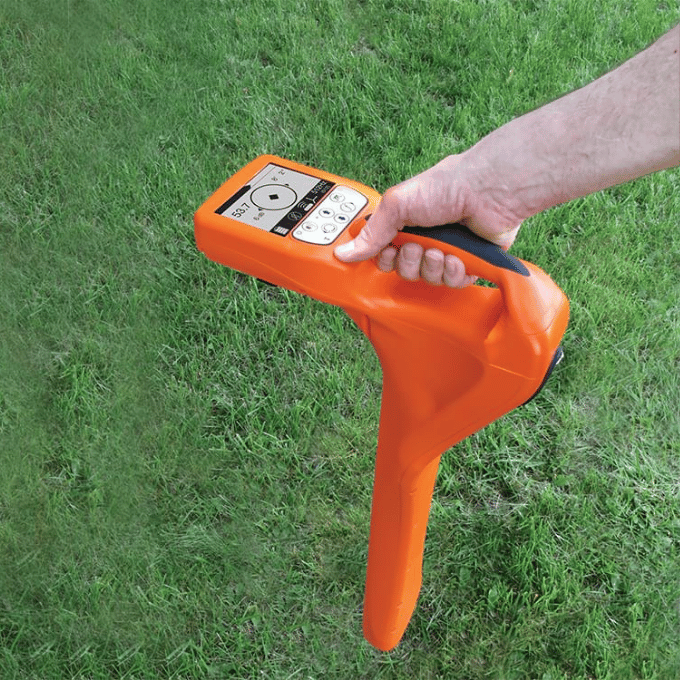

Gen-Eye Pipe Locator Hot Spot
Product Overview

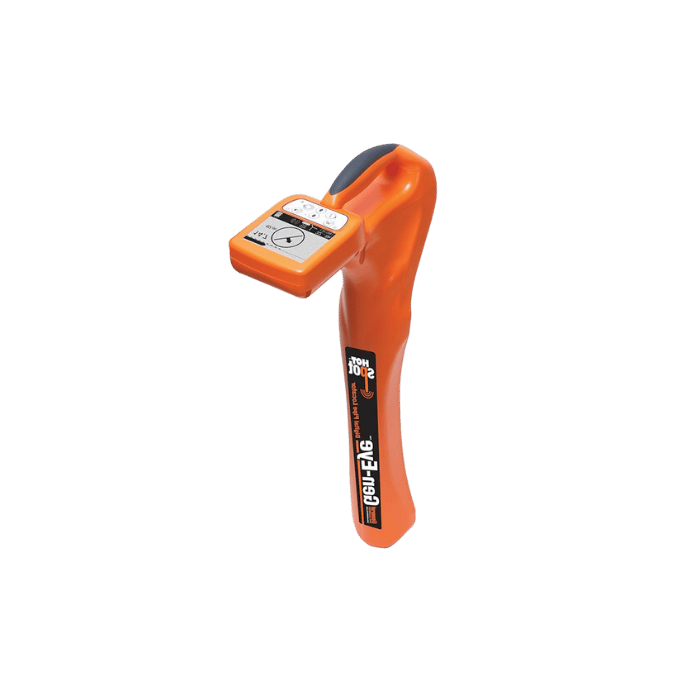

Gen-Eye Pipe Locator / Hot Spot

Gen-Eye Pipe Locator / Hot Spot is a professional locator for underground pipes, camera heads, sondes, transmitters, cable lines, and other buried utilities. It supports multiple frequencies and antenna modes, while displaying signal strength, direction arrows, depth, battery status, and automatic backlight information, helping operators identify pipe position, direction, and depth more efficiently in the field.

Specifications
Product Specifications
Product Type
Pipe locator / sonde locator
Weight
2.2 kg
Battery
2 × D batteries, approx. 30 hours at 20°C
Antenna Configuration
LCD omnidirectional, single peak, twin peak, null, and left / right mode for pipes only
Display
LCD digital signal, graphic display, direction arrows, null image, camera image, audio indicator, automatic digital depth, battery status, and automatic backlight
Camera / Sonde Locating
512 Hz and 33 kHz
Pipe Locating Frequency
Expandable to 1 kHz, 8 kHz, 33 kHz, and 65 kHz
Cable Line Locating
60 Hz / 50 Hz and 180 Hz / 150 Hz
Depth Range
Up to 6 m in plastic or clay pipes; up to 3 m in cast iron or galvanized pipes
The key to locating pipes is not only finding a signal — it is understanding direction, depth, and actual route

Underground pipe locating based only on signal strength can be affected by pipe material, burial depth, nearby cables, and site interference. Gen-Eye Pipe Locator / Hot Spot combines multiple frequencies, antenna modes, and automatic depth display to help operators identify pipe position more efficiently and reduce excavation, misjudgment, and jobsite risk.

Locating Modes
Multi-Frequency Locating for Different Field Conditions

Different pipe materials, burial depths, and signal sources require different frequencies and antenna modes. This locator supports camera / sonde locating, pipe locating, and cable line locating, making it suitable for pipe inspection, sewer line tracing, camera head tracking, and underground utility locating.

Camera / Sonde Locating

Supports 512 Hz and 33 kHz for tracking pipe inspection cameras or sondes.

Pipe Locating

Frequency can be expanded to 1 kHz, 8 kHz, 33 kHz, and 65 kHz for different pipe locating needs.

Cable Line Locating

Supports 60 Hz / 50 Hz and 180 Hz / 150 Hz for locating power lines and cable routes.

Automatic Digital Depth Display

Helps determine the depth of the pipe or sonde for better excavation and repair planning.

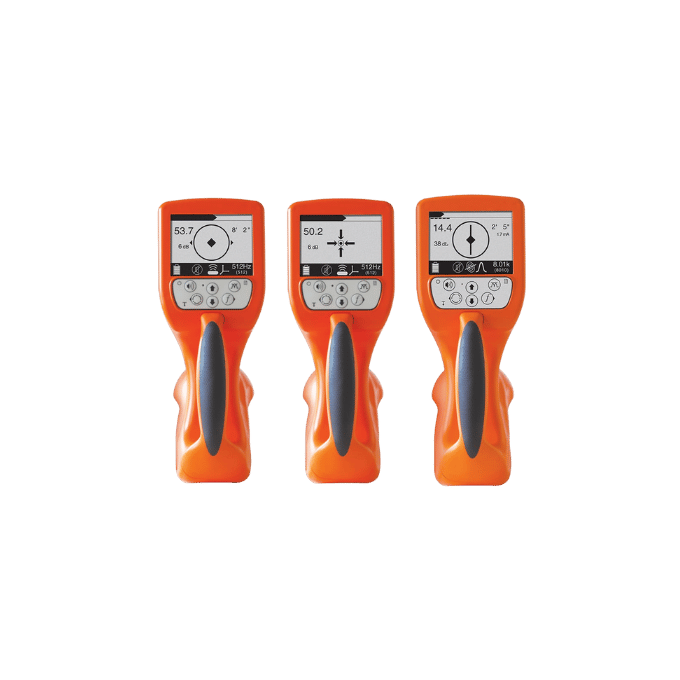

Gen-Eye Pipe Locator Hot Spot Operation
Features
Product Features
Built around multiple antenna modes, multi-frequency locating, automatic depth display, and a clear LCD interface, this locator is suitable for pipe inspection, underground utility locating, power line tracing, and pre-excavation checks.
Multiple Antenna Modes

Supports omnidirectional, single peak, twin peak, null, and left / right modes to improve locating judgment.

LCD Graphic Display

Shows digital signal, direction arrows, images, and battery status for more intuitive field reading.

Automatic Depth Reading

Automatically displays digital depth to help confirm the location and burial depth of pipes or sondes.

Multi-Frequency Application

Supports sonde, pipe, and cable locating frequencies for different field applications.

30-Hour Battery Runtime

Uses 2 D batteries and provides approximately 30 hours of runtime at 20°C for extended field work.

Automatic Backlight

Improves readability in darker areas such as basements, utility rooms, and pipe shafts.

Applications
Applications
Suitable for underground pipe locating, power line tracing, camera head tracking, buried utility locating, drainage inspection, and pre-construction pipe route confirmation.
Pipe Locating

Locates underground pipes such as cast iron, plastic, or clay pipes.

Camera Head Tracking

Works with pipe inspection camera systems to locate the camera head or sonde.

Power Line Locating

Helps identify the route of power lines or cable lines before field work.

Buried Utility Detection

Can locate transmitters, cameras, sondes, and other underground equipment.

Pre-Excavation Confirmation

Confirms underground pipe positions before excavation, repair, or pipe modification.

Drainage Line Inspection

Suitable for route confirmation during drain cleaning, inspection, and sewer maintenance.
