F-Series Vises_Pipe & Bench Vises_Pipe Wrenches & Hand Tools_Products | 經穗貿易股份有限公司

RIDGID_F_Series_Vises_66987
RIDGID_F_Series_Vises_66987_1
U.S.A.
RIDGID
F系列

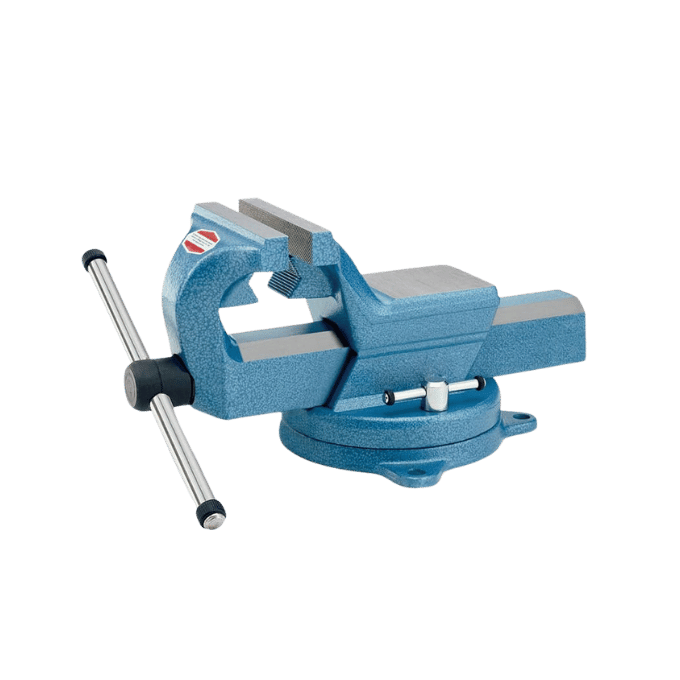

F-Series Vises

Forged steel body｜Approx. 2× harder than cast iron｜Oversized steel jaws + anvil｜Long-handle wide-opening design｜Multi-purpose pipe jaws｜Swivel base with 3 mounting holes｜Dual cold-rolled screw adjustment.
Product Features
  • High-Strength Forged Steel Body: Approx. 2× harder than cast iron, with excellent durability and deformation resistance.
  • Oversized Steel Jaws and Anvil: Provide stronger clamping force and a stable working surface for larger workpieces.
  • Long-Handle Wide Opening: Allows wider jaw opening for better clamping range and flexibility.
  • Multi-Purpose Pipe Jaws: Holds pipes and small rods for a variety of workshop tasks.
  • Swivel Base Design: Base can be adjusted to different working angles for easier operation.
  • Three-Hole Mounting: Secures firmly to the workbench for improved safety and stability.
  • Dual Cold-Rolled Screw System: Enables quick, smooth jaw adjustment and helps prevent chips from entering the threads and mechanism.
Add to Inquiry
Tags
Show

Model Specifications

SKU
Model
Description
Weight
Remarks
66987
F-45
120 mm jaw width × 150 mm jaw opening; pipe capacity 76 mm.
11.9kg
4 1/2" forged fixed type.
66992
F-50
140 mm jaw width × 198 mm jaw opening; pipe capacity 89 mm.
21.6kg
5" forged fixed type.
66997
F-60
160 mm jaw width × 224 mm jaw opening; pipe capacity 102 mm
28.6kg
6" forged fixed type.
69907
69907
Swivel base set for F-45.
1.4kg
69912
69912
Swivel base set for F-50 and F-60.
2.8kg

Product Details

Technical Data
Product Specifications
The forged steel bench vise is made from high-strength forged steel, with twice the hardness of cast iron and only 20% deformation. Equipped with oversized steel jaws, a strong anvil, swivel base, and double cold-rolled screw design, it is suitable for metalworking, machinery repair, construction assembly, and heavy-duty work environments.
Body Material
Forged steel construction, twice the hardness of cast iron, with only 20% deformation.
Steel Jaws and Anvil
Oversized and heavy-duty, providing better clamping capability and work surface.
Jaw Handle Design
Extended design allows the steel jaws to open wider and hold larger workpieces.

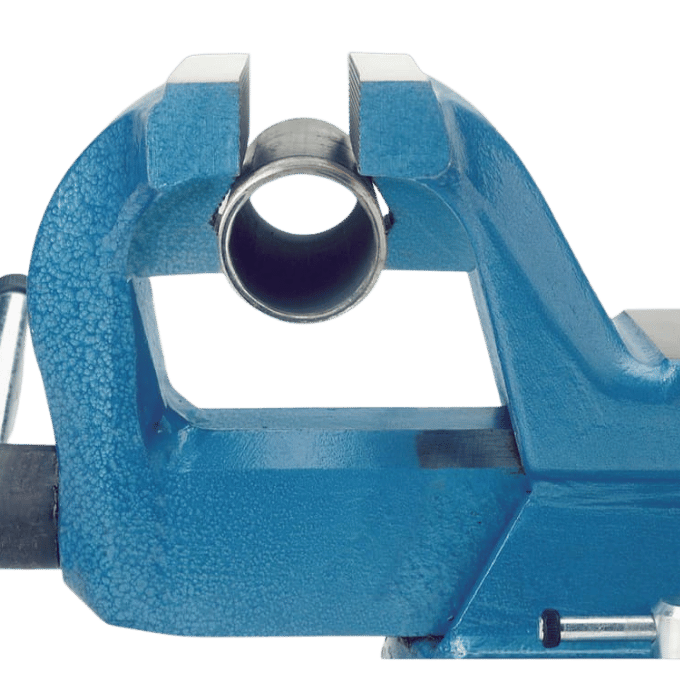

Pipe Jaws
Forged design with full-function gripping capability for pipes and small round bars.
Base Design
Swivel base with 2 countersunk screws, supporting unrestricted adjustment.
Mounting Holes
3 mounting holes allow secure installation on work surfaces.
Cold-Rolled Screws
Double cold-rolled screw design provides straight pulling force and fast jaw-opening adjustment.
High-Strength Forged Steel Construction for Heavy-Duty Clamping and Repair Work

Compared with standard cast iron bench vises, the forged steel structure provides higher hardness and lower deformation. Oversized steel jaws, anvil, pipe jaws, and swivel base allow the vise to support flat workpieces, pipes, small round bars, and multi-angle holding needs in long-duration and heavy-duty work environments.

Features
Product Features
Built around a forged steel body, oversized steel jaws, reinforced anvil, extended jaw handle, swivel base, and double cold-rolled screws, this vise provides stable clamping, fast adjustment, and durable work support.
High-Strength Forged Steel

Forged steel construction offers twice the hardness of cast iron with only 20% deformation, suitable for heavy-duty work environments.

Oversized Jaws and Anvil

Provides better clamping capability and work surface for striking, holding, and processing support.

Wider Jaw Opening

Extended jaw handle design allows the jaws to open wider for holding larger workpieces.

Pipe and Round Bar Holding

Forged pipe jaws provide full-function gripping capability for pipes and small round bars.

Swivel Base

The swivel base supports multi-angle adjustment and improves work positioning flexibility.

Fast Jaw Adjustment

Double cold-rolled screws provide straight pulling force and make jaw opening adjustment faster and smoother.

Applications
Applications
Suitable for industrial work requiring clamping and holding, including metalworking, machinery repair, construction assembly, pipe and small round bar holding, and heavy-duty bench work environments.
Metalworking

Suitable for holding, processing, striking, and finishing metal workpieces.

Machinery Repair

Can be used for mechanical part disassembly, holding, repair, and adjustment.

Construction and Assembly Work

Durable design is suitable for construction sites, assembly lines, and other demanding work environments.

Pipe Holding

Pipe jaws can be used for holding pipes during pipe processing and repair.

Small Round Bar Holding

Suitable for holding small round bars, round workpieces, and slender materials.

Bench-Mounted Work

3 mounting holes allow secure installation on work surfaces, providing a stable work base.
