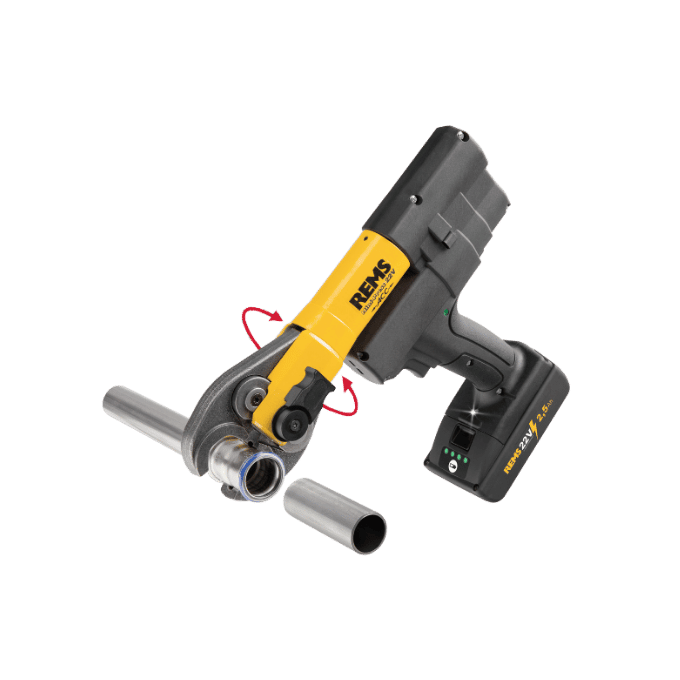

REMS_ Radial_Press_Jointing_Mini Akku press 22V_578014
REMS Mini Akku press 22V_Radial Press Jointing_578014R

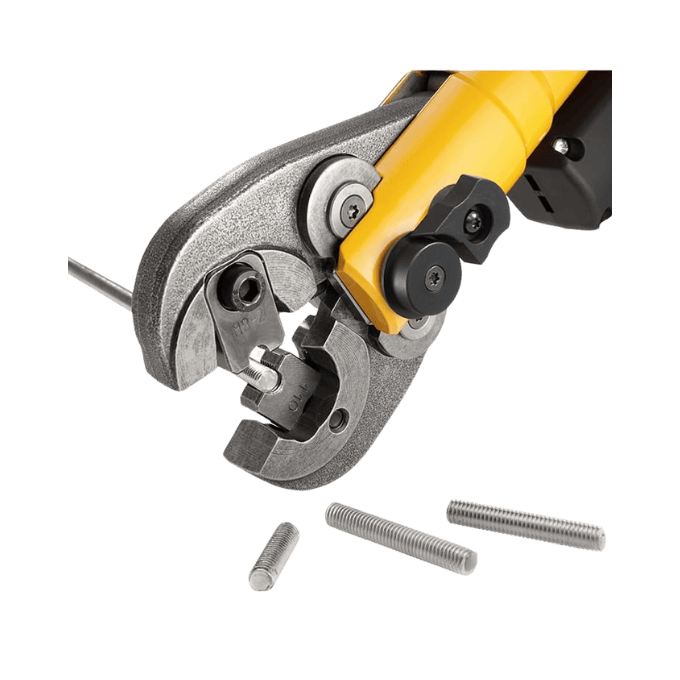

KS_Threaded_Rod_Cropping_Tongs_571890

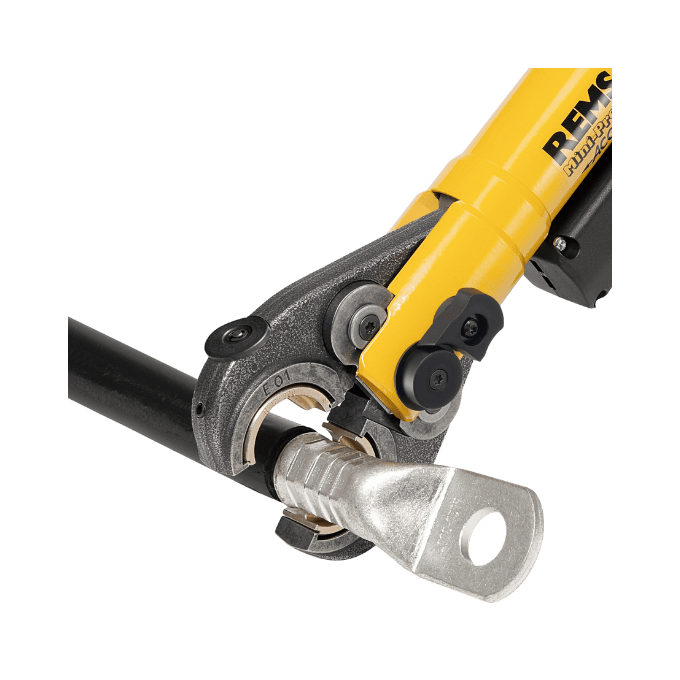

KS_Crimping_Jaw_for_Cable_Terminals_E03_571805K
Germany
REMS
Mini 22V

Mini Cordless Press ACC

Suitable for Ø10–40 mm press applications. Features 380W power, 22 kN thrust force, 2.1 kg lightweight body, 360° auto-locking jaw holder, 4-second automatic return, and 22V cordless lithium-ion power.Fast, stable, and flexible pressing performance for efficient jobsite install
Product Features
  • Lightweight and Easy to Handle: Ergonomic pistol-grip design with a 2.1 kg lightweight body for easy one-handed operation.
  • 4-Second Automatic Return: The jaw automatically returns after each press, improving continuous workflow efficiency.
  • 360° Auto-Locking Jaw Holder: Flexible operation from different angles and in confined spaces.
  • Cordless Lithium-Ion Design: No power outlet required, allowing easier movement across the jobsite.
  • Stable Hydraulic Output: 22 kN thrust force delivers fast, stable, and reliable pressing performance.
Add to Inquiry
Tags
Show
＃Automatic Pressure Release ＃充電式 ＃1/2" ＃3/4" ＃Stainless Steel Tube ＃1"

Model Specifications

SKU
Model
Description
Weight
Remarks
578014
Mini-Press 22V ACC

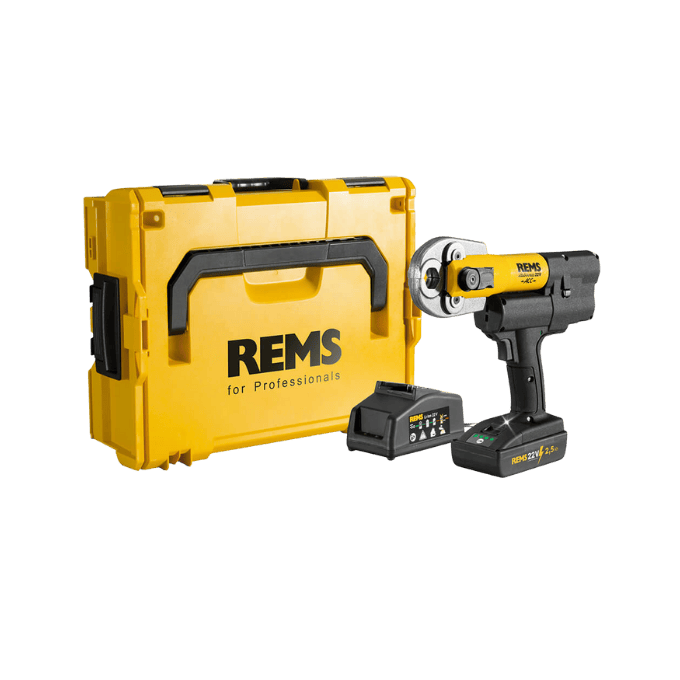

110V / 60Hz, 70W charger, with 1 × 21.6V lithium-ion battery and tool case. Includes Korean-standard 13SU, 20SU, and 25SU pressing jaws, 1 pc each.
578113
SU13
1/2" mini pressing jaw.
1.2 kg
578120
SU20
3/4" mini pressing jaw.
1.2 kg
578125
SU25
1" mini pressing jaw.
1.2 kg
571571
21.6V/2.5Ah
21.6V / 2.5Ah lithium-ion battery.
0.4 kg

Product Details

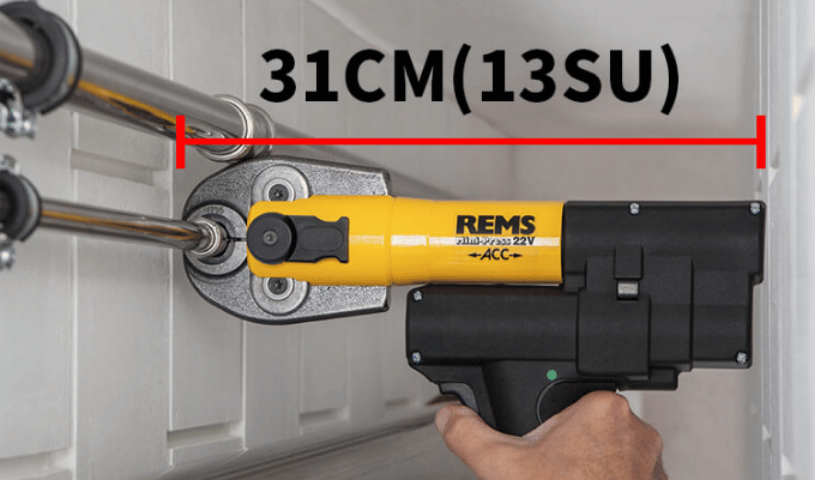

REMS Cordless Pressing Tool
Product Overview
REMS Cordless Pressing Tool

A lightweight body with 22 kN pressing force, suitable for efficient mobile installation and multi-angle field operation. Designed for on-site installation, repair, and mobile construction needs, balancing handling flexibility and work efficiency.

Technical Data
Product Specifications
Pressing Range
Ø10–40 mm
Tool Weight
2.1 kg
Power
380W
Pressing Force
22 kN
Battery
21.6V / 2.5Ah
Per Charge
Approx. 390 presses for 1/2" pipe
Field Work Efficiency

Fast charging helps reduce waiting time. Pulse charging technology helps reduce memory effect and maintain battery performance and service life.

Applications
Applications

Designed for on-site installation, repair, and mobile construction needs, balancing handling flexibility and work efficiency.

Pipe Installation and Repair

Suitable for flexible jobsite operation, including wall corners, pipe shafts, and hard-to-reach areas.

Professional Pressing Work

Supports multiple press fitting systems and is suitable for daily engineering, air-conditioning, water supply, gas supply, and general piping work.

Mobile Work Environments

Cordless design reduces dependence on jobsite outlets and allows quick movement between work areas.

High-Efficiency Field Work

Fast pressing and high-capacity battery support continuous and demanding field operation.

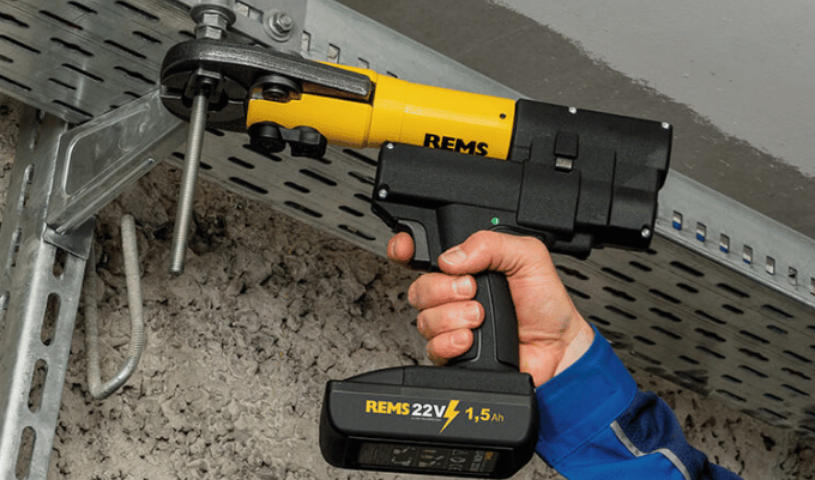

REMS Pressing Tool Field Application
