REMS-Cordless Radial Press ACC-E-22V

REMS_ Radial_Press_Jointing_Akku press E_22V_576016R
REMS_ Radial_Press_Jointing_Akku press E_22V_576016R_LFU0001-0001_rgb

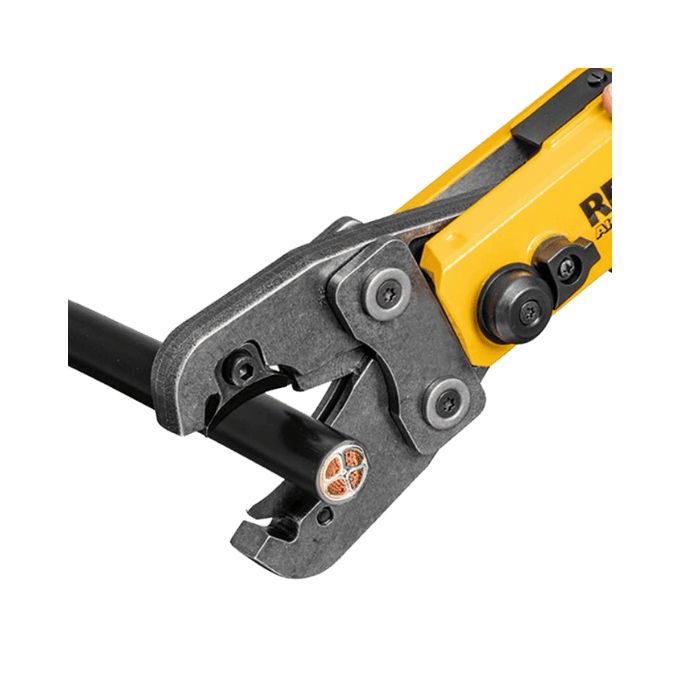

KS_cable_shear_571887

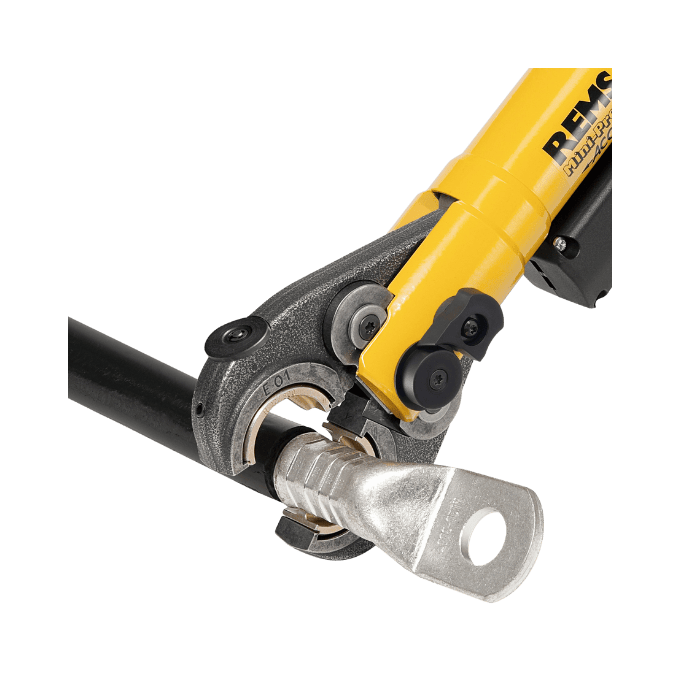

KS_Crimping_Jaw_for_Cable_Terminals_E03_571805K
KS_Threaded_Rod_Cropping_Tongs_571890
Germany
REMS
E 22V

Cordless Radial Press ACC

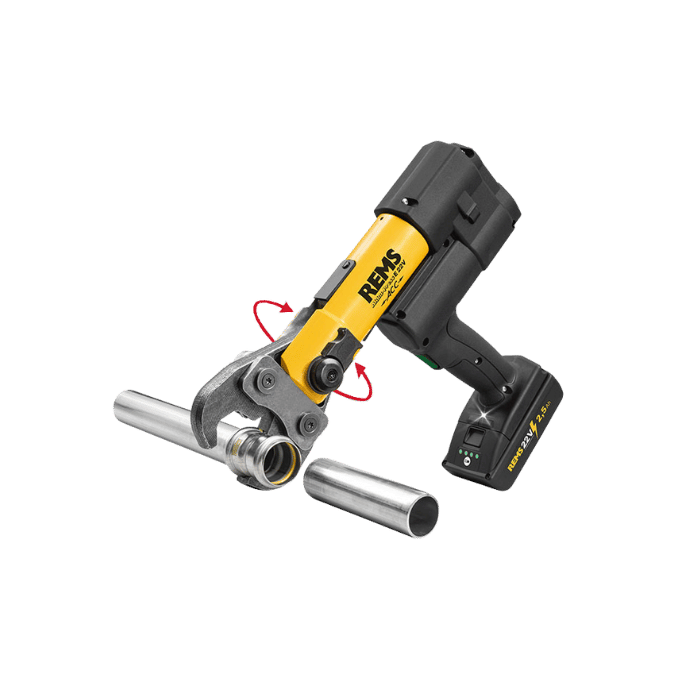

Suitable for Ø10–108 mm press applications. Features 22V hydraulic drive, 2.8 kg lightweight body, automatic return, 360° rotating jaw holder, LED work light, and fast charging.
Fast, stable, and efficient pressing for multi-system applications and demanding jobsite work.
Product Features
  • 4.5-Second Fast Pressing: Automatic return after each press improves continuous workflow efficiency.
  • 2.8 kg Lightweight Pistol-Grip Design: Ergonomic grip for easier one-handed operation.
  • 360° Rotating Jaw Holder: Flexible operation in confined spaces and from different angles.
  • 22V Hydraulic Drive: Stable power output for fast and reliable pressing performance.
  • Automatic Locking Design: Auto-locking jaw holder improves operating stability.
  • LED Work Light: Built-in bright LED light supports work in low-light areas.
  • Pulse Fast-Charging Technology: Helps reduce memory effect and maintain battery performance and service life.
Add to Inquiry
Tags
Show
＃Automatic Pressure Release ＃充電式 ＃1 1/2" ＃2" ＃Stainless Steel Tube ＃1" ＃1/2" ＃3/4"

Model Specifications

SKU
Model
Description
Weight
Remarks
576016
Akku-Press E 22V ACC

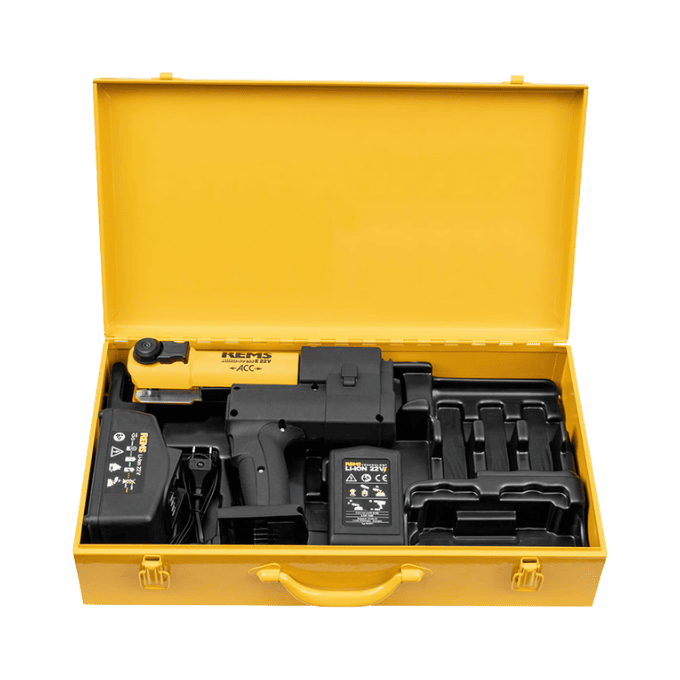

110V / 60Hz, 380W, with charger, 1 × 21.6V / 2.5Ah lithium-ion battery, and tool case. Includes Korean-standard SU13, SU20, and SU25 standard pressing jaws, 1 pc each.
578013
SU13
1/2" standard pressing jaw.
1.8 kg
578020
SU20
3/4" standard pressing jaw.
1.9 kg
578025
SU25
1" standard pressing jaw.
1.9 kg
571571 R22
21.6V / 2.5Ah lithium-ion battery.
571574 R22
21.6V / 4.4Ah lithium-ion battery.

Note 1: Tool thrust force is factory-set by the original manufacturer in Germany. Note 2: Pressing force refers to the force applied at the tip of the press jaw. *Press jaws from different manufacturers are also available.

Product Details

Technical Data
Product Specifications
The cordless press tool features a lightweight body design with a high-output battery system, making it suitable for mobile jobsite work and multi-size pipe pressing applications. It supports a Ø10–108 mm pressing range while balancing work efficiency, operating flexibility, and stable joint quality.
Pressing Range
Ø10–108 mm
Compatible Size
SU13–60
Tool Weight
2.8 kg
Battery
21.6V / 2.5Ah
Per Charge
Approx. 200 pressings on 1/2" pipe
Lightweight Body for Efficient Jobsite Pressing

With a healthy and fully charged battery, the tool can support approximately 200 pressings on 1/2" pipe, making it suitable for continuous jobsite work and mobile engineering applications.

*The actual pressing range depends on compatible press jaws and press fittings.

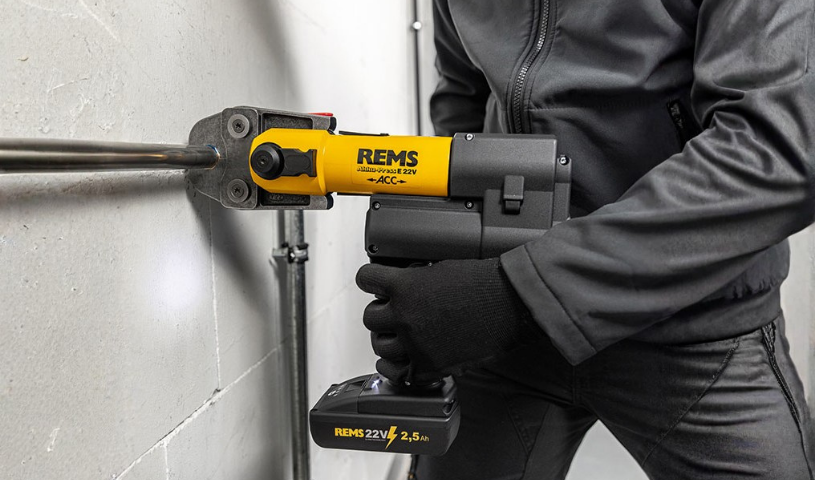

REMS Cordless Press Tool Product Specification

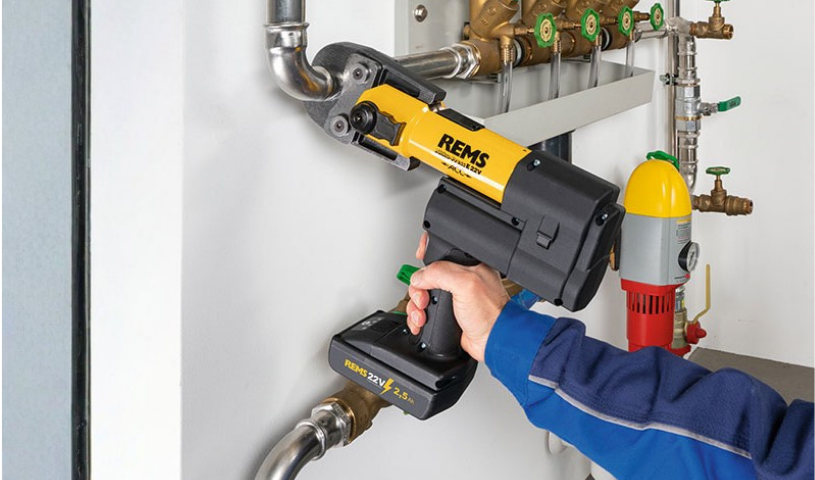

REMS Cordless Press Tool Jobsite Application
Applications
Applications
Suitable for various pipe pressing needs while balancing work efficiency, system compatibility, and jobsite flexibility. Ideal for plumbing, fire protection, HVAC, building services, and engineering pipe pressing applications.
Multi-Size Pipe Pressing

The Ø10–108 mm pressing range supports pipe system installation across different sizes.

Multi-Brand Press Systems

Compatible with press systems from multiple fitting manufacturers, improving jobsite application flexibility.

Fast and Stable Joining

Helps complete pipe pressing quickly while supporting secure and reliable joint quality.

Mobile Engineering Work

Cordless design supports movement across different work areas and reduces dependence on jobsite power sources.
