REED Straight-Pipe-Wrench-6-60

REED_pipe_Straight-Pipe-Wrench_31000
U.S.A.
REED
6-60

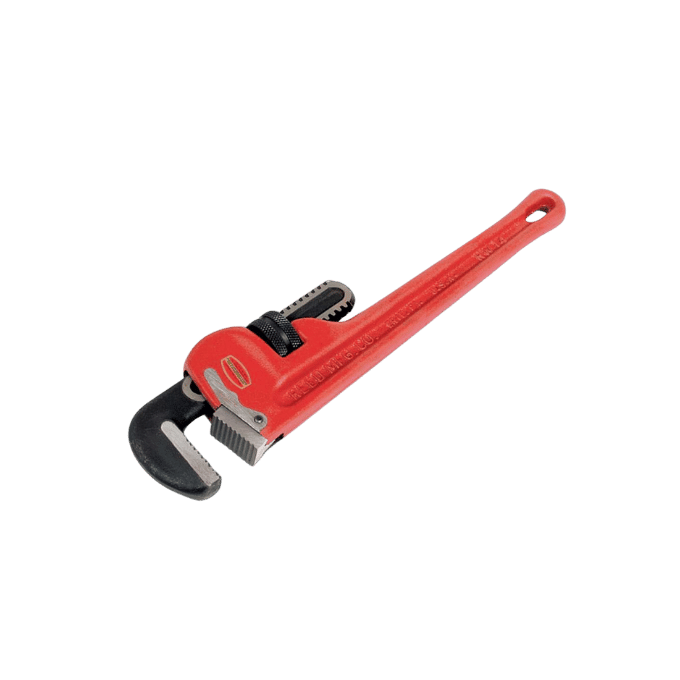

Straight Pipe Wrench

Rugged cast iron frame｜Ergonomic I-beam handle｜Heat-treated high-alloy steel hook jaw and teeth｜Full-floating hook jaw｜Knurled adjustment nut｜Self-cleaning design.
Product Features
  • Ergonomic I-Beam Handle: Provides a stable and comfortable grip for long-hour operation.
  • Full-Floating Hook Jaw: Allows fast gripping and release for better jobsite efficiency.
  • Heat-Treated High-Alloy Steel Teeth: Improves wear resistance, deformation resistance, and gripping performance.
  • Rugged Cast Iron Frame: Strong and stable body for heavy-duty work environments.
  • Knurled Adjustment Nut: Smooth adjustment with reduced risk of sticking from dirt or debris.
  • Self-Cleaning Design: Helps clear debris from the hook jaw support, reducing maintenance needs and extending tool life.
  • Multi-Application Use: Suitable for piping installation, construction work, industrial assembly, HVAC, and repair tasks.
Add to Inquiry
Tags
Show

Model Specifications

SKU
Model
Description
Weight
Remarks
31000
6
Pipe Capacity: 3/4"；Handle Length: 6" (150 mm)
0.2kg
31005
8
Pipe Capacity: 1"；Handle Length: 8"(200mm)
0.3kg
31010
10
Pipe Capacity: 1 1/2"；Handle Length: 10"(250mm)
0.8kg
31015
12
Pipe Capacity: 2"；Handle Length: 12"(300mm)
1.2kg
31020
14
Pipe Capacity: 2"；Handle Length: 14"(350mm)
1.6kg
31025
18
Pipe Capacity: 2 1/2"；Handle Length: 18"(450mm)
2.6kg
31030
24
Pipe Capacity: 3"；Handle Length: 24"(600mm)
4.4kg
31035
36
Pipe Capacity: 5"；Handle Length: 36"(900mm)
8.7kg
31040
48
Pipe Capacity: 6"；Handle Length: 48"(1200mm)
15.6kg
31045
60
Pipe Capacity: 8"；Handle Length: 60"(1500mm)
23.3kg

Product Details

Technical Data
Product Specifications
A durable cast iron frame with an ergonomic I-beam handle, designed for pipe installation, construction, industrial assembly, and refrigeration / air-conditioning work where stable gripping, quick adjustment, and long service life are required.
Material and Structure
Main body made with a strong cast iron frame for stable support and durability.
Handle Design
I-beam handle design provides a comfortable grip for extended use.
Jaw and Teeth
Upper jaw, center jaw teeth, and heel jaw teeth are made from heat-treated high-alloy steel for strength and durability.
Full Floating Upper Jaw
Flexible design enables quick instant gripping and release operation.
Adjustment Nut
Multi-thread design for easy turning, reduced jamming, and automatic cleaning of dirt from the upper jaw support.
Support Structure
Reinforced heel jaw structure improves gripping stability and overall durability.
Stable Gripping and Fast Adjustment for Demanding Field Work

The full floating upper jaw and multi-thread adjustment nut improve gripping, release, and size adjustment efficiency. Heat-treated high-alloy steel teeth support demanding field use where reliable gripping force and durability are essential.

Applications
Applications
Suitable for gripping and securing various pipes, especially in work environments that require frequent adjustment, fast positioning, and stable operation.
Pipe Installation and Repair

Suitable for gripping and fixing various pipes, especially where frequent pipe adjustment is required.

Construction Work

Used for securing and installing steel pipes, water pipes, and other structural components in construction projects.

Industrial Manufacturing and Assembly

Supports quick fixing and adjustment of pipes, parts, or mechanical assemblies in industrial environments.

Refrigeration and Air-Conditioning

Used for fixing refrigerant pipes, compressor pipe fittings, and related refrigeration system components.
