REED End-Pipe-Wrench-E-series

REED_pipe_End-Pipe-Wrench_31050
U.S.A.
REED
E系列

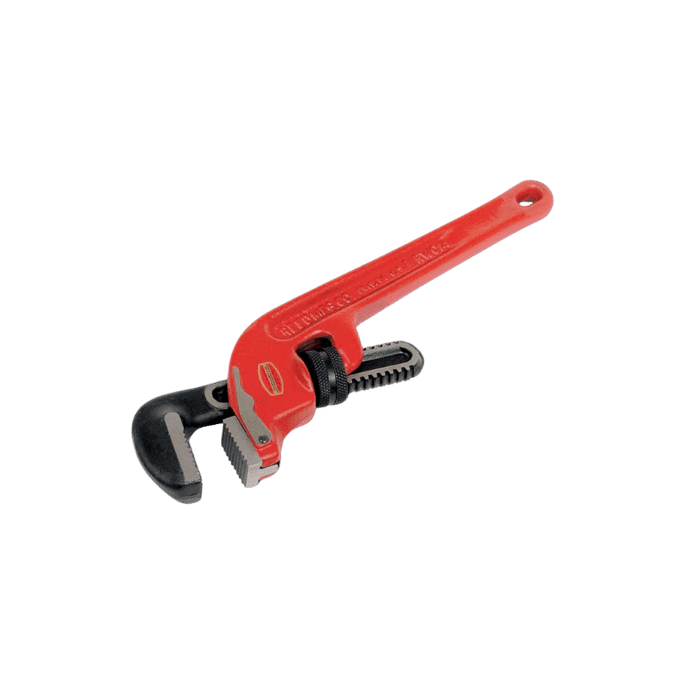

End Pipe Wrench

Heat-treated high-alloy steel jaws｜45° angled design｜Wider swing range｜Ideal for wall-adjacent and confined spaces｜Same structure as straight pipe wrenches｜No extra accessories required.
Product Features
  • 45° Angled Design: Angled hook jaw improves operation near walls and in confined spaces.
  • Wider Swing Range: Provides better working angles in restricted areas.
  • Heat-Treated High-Alloy Steel Jaws: Durable and wear-resistant for heavy-duty jobsite use.
  • Strong Gripping Performance: Jaw teeth provide secure bite for efficient pipe holding and turning.
  • Same Structure as Straight Pipe Wrenches: Familiar operation with easier maintenance and spare part management.
  • No Extra Accessories Required: Ready to use without special attachments.
  • Multi-Application Use: Suitable for pipe installation, construction, industrial repair, and HVACR applications.
Add to Inquiry
Tags
Show

Model Specifications

SKU
Model
Description
Weight
Remarks
31050
E-6
Pipe Capacity: 3/4"；Handle Length: 6" (150 mm)
0.2kg
31055
E-8
Pipe Capacity: 1"；Handle Length: 8"(200mm)
0.3kg
31060
E-10
Pipe Capacity: 1 1/2"；Handle Length: 10"(250mm)
0.8kg
31065
E-12
Pipe Capacity: 2"；Handle Length: 12"(300mm)
1.2kg
31070
E-14
Pipe Capacity: 2"；Handle Length: 14"(350mm)
1.6kg
31075
E-18
Pipe Capacity: 2 1/2"；Handle Length:18"(450mm)
2.6kg
31080
E-24
Pipe Capacity: 3"；Handle Length: 24"(600mm)
4.4kg
31085
E-36
Pipe Capacity: 5"；Handle Length: 36"(900mm)
8.7kg

Product Details

Technical Data
Product Specifications
The offset pipe wrench has the same basic structure as a straight pipe wrench, with the key difference being that the upper jaw opening is positioned at a 45° angle to the handle, providing a wider swing range. It is especially suitable for use near walls, inside pipe shafts, in confined spaces, or in locations where a standard straight wrench is difficult to operate.
Structure Design
Offset pipe wrench and straight pipe wrench share the same basic structure.
Upper Jaw Design
Upper jaw opening is set at a 45° angle to the handle, providing a wider swing range.
Material
Upper jaw, center jaw teeth, and heel jaw teeth are made from heat-treated high-alloy steel.
Strength and Wear Resistance
High-alloy steel teeth provide high strength and wear resistance for frequent and demanding use.
45° Offset Jaw for Easier Operation Near Walls and in Confined Spaces

The main advantage of the offset pipe wrench is its more flexible swing angle. When working near walls, corners, or equipment, the 45° jaw design reduces operating limitations and improves gripping, adjustment, and leverage efficiency.

Features
Product Features
Built around a 45° upper jaw, high-alloy steel teeth, wider swing range, and the same structure as a straight pipe wrench, this tool is suitable for pipe work where space is limited or a more flexible leverage angle is required.
Flexibility and Ease of Operation

The 45° upper jaw design allows smoother operation in confined spaces or near wall surfaces.

High Durability

Heat-treated high-alloy steel ensures wear resistance and long-term stability in demanding work environments.

Simplified Operation

The flexible design and wider swing range make operation easier, especially in narrow workspaces.

Common Structure

The offset pipe wrench shares the same structure as a straight pipe wrench, reducing the need for additional adjustments or accessories.

Applications
Applications
Suitable for gripping, fixing, adjusting, and repairing metal or plastic pipes, especially in confined spaces, wall-side areas, and refrigeration or air-conditioning pipe installation where access is limited.
Pipe Installation and Repair

Suitable for fixing and gripping metal or plastic pipes, especially in confined-space applications.

Construction and Industrial Work

Used for pipe fitting installation, adjustment, or maintenance in narrow or wall-side areas.

Refrigeration and Air-Conditioning

Provides gripping support during refrigerant pipe and compressor pipe installation.
