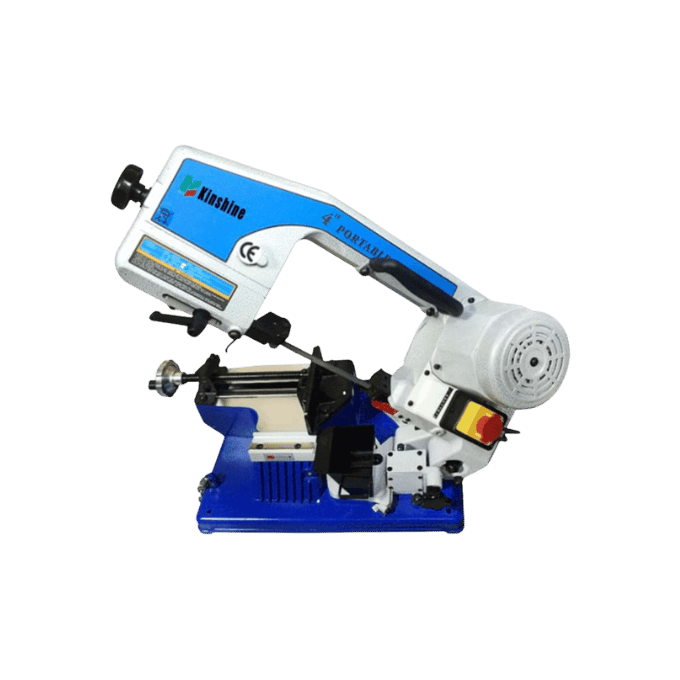

KS Portable-Band-Saw-100S

KS_portable_band_saw_KS100S
Taiwan
KS
100/150S

Portable Band Saw

Cutting capacity: round material 100–150 mm｜Square material 100×150 mm to 150×150 mm｜1/2 HP｜1720 RPM｜Blade speed 54 / 62 MPM｜Low noise approx. 60 dB｜Vertical, horizontal, and 0–45° angle cutting.
Product Features
  • Portable Lightweight Design: Carry handle makes it easy to move between worksites.
  • Cast Aluminum Body: Strong and durable structure while maintaining good mobility.
  • Low-Noise Operation: Approx. 60 dB for a more comfortable working environment.
  • Gear-Driven System: Provides smoother and more stable cutting performance.
  • Multi-Angle Cutting: Supports vertical, horizontal, and 0–45° angle cutting.
  • Jobsite Application: Suitable for construction sites, repair work, fabrication, and mobile cutting tasks.
Add to Inquiry
Tags
Show

Model Specifications

SKU
Model
Description
Weight
Remarks
KS100S
KS100S
Band saw 110V / 100mm: includes clamp base, blade, and tools; dimensions 381 × 724 × 458 mm.
23kg
KS150S
KS150S
Band saw 110V / 150mm: includes clamp base, blade, and tools; dimensions 724 × 381 × 458 mm.
31kg

Product Details

Product Overview
Portable Band Saw Machine｜KS Series
The KS Series is a lightweight portable band saw machine designed for jobsite and workshop use. The machine body includes a carrying handle for easy transport to different construction or processing locations. Its aluminum alloy cast structure provides durability while keeping the machine easy to move. With an operating noise level of approx. 60 dB, it provides a quieter and more comfortable working environment. The gear-driven sawing system ensures smooth and stable cutting, supporting angle, vertical, and horizontal cuts for various metalworking needs.
Product Type
Lightweight portable band saw machine
Body Structure
Aluminum alloy cast body, durable and easy to transport
Portability
Built-in carrying handle for easy movement between jobsites
Operating Noise
Approx. 60 dB
Drive System
Gear-driven for smooth and stable cutting
Cutting Modes
Angle, vertical, and horizontal cutting
The Core Value Is Jobsite Mobility — Not Just Cutting Capacity

Fixed cutting equipment can be inconvenient on construction sites, often causing material handling delays and lower work efficiency. The KS Series focuses on portability, low-noise operation, and stable gear-driven cutting, making it suitable for jobsites where operators need to move quickly between work areas while maintaining cutting stability.

Model Specifications
Model Specifications
The KS Series includes two models: KS-100S and KS-150S. KS-100S is suitable for 4"-class cutting needs and smaller materials, while KS-150S supports larger 6"-class cutting capacity and 0°–45° angle cutting for higher-capacity jobsite applications.
KS-100S
KS-100S｜4" Portable Band Saw
Motor
1/2 HP, 60 Hz, 1720 RPM
Blade Speed
54 MPM, 4-pole
90° Cutting Capacity
Round pipe Ø100 mm; square tube 100 × 150 mm
45° Cutting Capacity
Round pipe Ø65 mm; square tube 100 × 65 mm
Best For
Small to medium pipes, square tubes, and lightweight jobsite cutting
Best for Pipes Under 100 mm and Mobile Jobsite Cutting

KS-100S focuses on mobility and cost efficiency. If most work involves round pipes under Ø100 mm or small to medium square tubes, KS-100S can cover many jobsite needs without moving up to a larger machine.

KS-150S
KS-150S｜6" Portable Band Saw
Motor
1/2 HP, 60 Hz, 1720 RPM
Blade Speed
62 MPM
90° Cutting Capacity
Round pipe Ø150 mm; square tube 150 × 150 mm
45° Cutting Capacity
Round pipe Ø100 mm; square tube 100 × 100 mm
Angle Cutting
Supports 0°–45° angle cutting
Best For
Larger pipes, larger square tubes, and angle cutting work
Best for 150 mm-Class Cutting and Angle Cutting Needs

KS-150S provides larger cutting capacity and angle-cutting flexibility. If the jobsite frequently requires Ø150 mm round pipe, 150 × 150 mm square tube, or 0°–45° angle cutting, KS-150S is the more practical configuration.

Features
Product Features
Designed around portability, aluminum cast construction, low-noise operation, stable gear drive, and multi-angle cutting for jobsite and workshop use.
Portable Design

Built-in handle makes it easy to carry the machine to jobsites, workshops, or temporary work areas.

Aluminum Cast Body

Durable structure supports both field mobility and long-term use.

Low-Noise Operation

Approx. 60 dB operating noise helps create a quieter and more comfortable work environment.

Gear-Driven Cutting

Gear drive provides smooth and stable sawing performance with reduced vibration.

Multi-Directional Cutting

Supports angle, vertical, and horizontal cutting for different materials and jobsite needs.

Two Model Options

KS-100S covers 4"-class work, while KS-150S supports 6"-class and larger cutting needs.

Applications
Applications
Suitable for construction sites, building work, pipework, metal processing, maintenance, and temporary fabrication areas. It can be used for vertical, horizontal, and angle cutting of round pipes, square tubes, and various metal materials.
Jobsite Cutting

Can be moved directly to the work area, reducing material handling time.

Pipe and Profile Processing

Suitable for round pipes, square tubes, and various metal material processing needs.

Maintenance and Temporary Fabrication

Useful for equipment repair, on-site modification, and mobile cutting applications.
