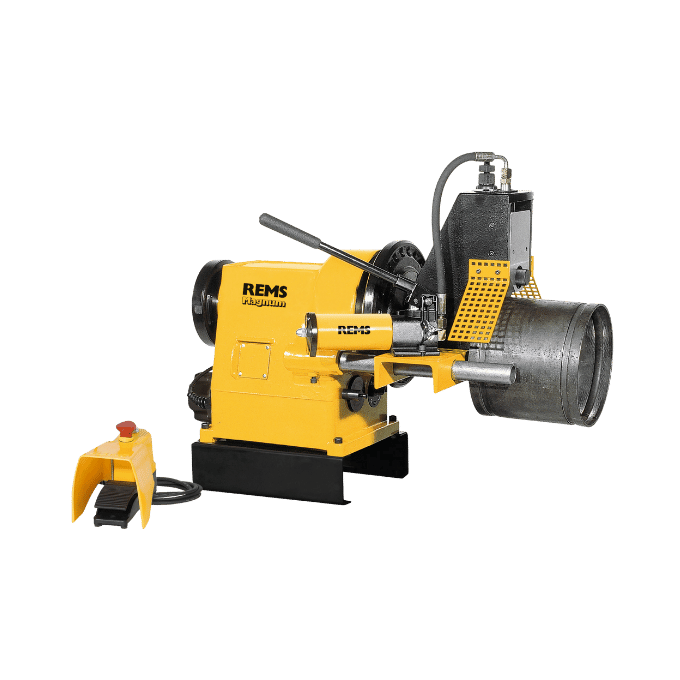

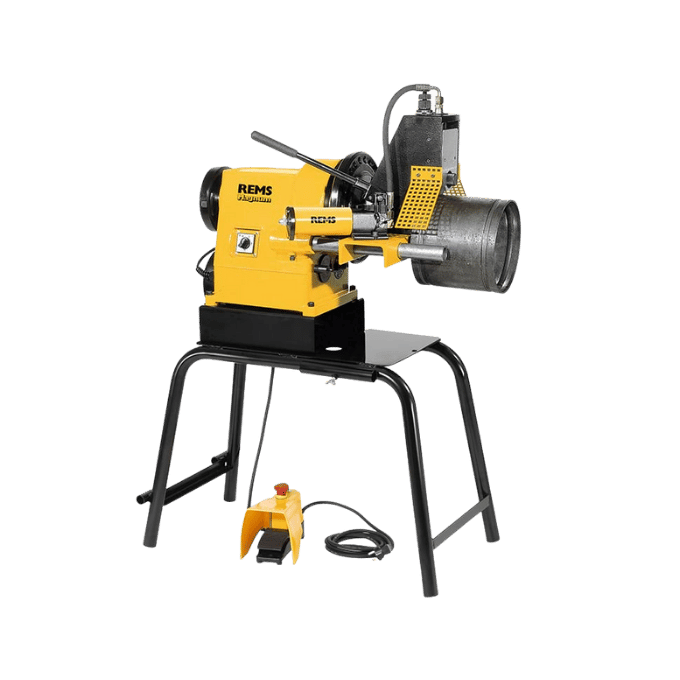

REMS Hydraulic-Roll-Groover-Magnum-RG

REMS_magnum_340230_1
REMS_magnum_340230
REMS_magnum_340230_2
Germany
REMS
Magnum RG

Hydraulic Roll Groover

Suitable for 1"–12" standard steel pipes｜Wall thickness ≤7.2 mm｜Supports stainless steel, copper, aluminum, and PVC pipes｜Hydraulic drive｜Grooves 6" steel pipe in approx. 40 seconds｜Weight 68 kg.
Product Features
  • Efficient Hydraulic Grooving: Hydraulic drive provides stable forming force and grooves 6" steel pipe in approx. 40 seconds.
  • One-Person Setup: Simple operation for fast jobsite and workshop use.
  • Multi-Material Application: Supports standard steel, stainless steel, copper, aluminum, and PVC pipes.
  • Lightweight Portable Design: Approx. 68 kg compact body for easier transport and storage.
  • Quick Groove Set Change: Groove rolls and drive shafts can be changed quickly for different pipe sizes.
  • Optional Stands Available: Wheel stand or tripod stand options provide better working height and stability.
  • Pipe Support Compatible: Can be used with V-head ball roller pipe stand for better long-pipe support.
  • Rugged Durable Structure: Built for long-hour, heavy-duty grooving applications.
Add to Inquiry
Tags
Show
＃Aluminum Tube ＃12" ＃Soft & Hard Copper Tubes ＃Stainless Steel Tube ＃Galvanized Steel Pipe ＃1"

Model Specifications

SKU
Model
Description
Weight
Remarks
340230
2000RG-T
Grooving machine body with pump: brush motor 110V / 60Hz, 1700W, 53 rpm; includes dismantling tool set and 2"–6" grooving set.
68 kg
340231
2010RG-T
Grooving machine body with pump: capacitor motor 230V / 50Hz, 2100W, 52 / 26 rpm; includes dismantling tool set and 2"–6" grooving set.
68 kg
344100

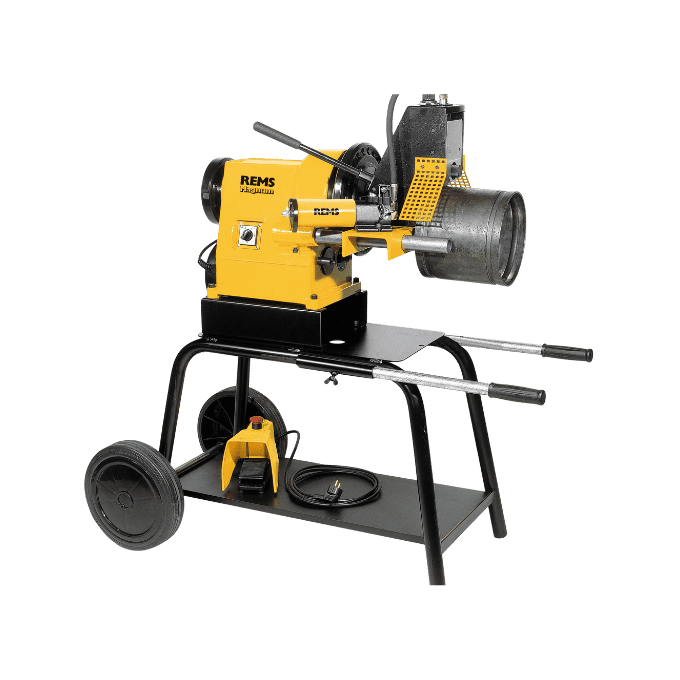

Wheel stand.
344105
Tripod stand, without wheels.
120120
Herkules 3B
Pipe support stand with V-head ball rollers.

Product Details

REMS Herkules XL 12 grooving machine
Product Overview
REMS Herkules XL 12｜Professional Pipe Grooving Machine
REMS Herkules XL 12 is designed for pipe grooving work on jobsites and in factory assembly environments. It can process standard steel pipes, stainless steel pipes, copper pipes, aluminum pipes, and PVC pipes. With a grooving capacity of 1–12" standard steel pipe, it is suitable for construction piping, fire protection piping, pipe installation, and industrial assembly applications.
Product Type
Professional pipe grooving equipment
Grooving Capacity
1–12" standard steel pipe
Applicable Wall Thickness
≤ 7.2 mm standard steel pipe
Applicable Materials
Standard steel pipe, stainless steel pipe, copper pipe, aluminum pipe, PVC pipe
Machine Weight
68 kg
Pipe Support Range
Herkules 3B: 1/8–6" (26–168 mm)
Grooving Quality Depends on Pipe Support, Stability, and Consistent Groove Geometry

If the pipe is not properly supported during grooving, vibration, uneven groove depth, and coupling sealing risks may occur. Using the stand set and Herkules 3B pipe support helps improve working height, reduce operator burden, and increase grooving stability and jobsite safety.

Accessories
Recommended Accessories
A grooving system should not be evaluated by machine capacity alone. For long working hours, larger pipe sizes, or multi-operator use, the stand and pipe support directly affect efficiency, safety, and groove quality.
Stand Set

Raises the working height, reduces operator burden, and makes transport and movement easier.

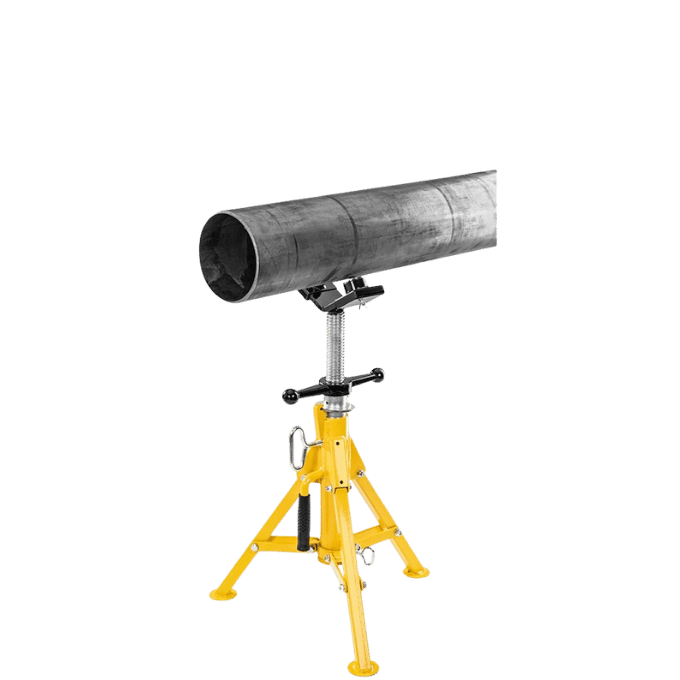

Herkules 3B Pipe Support

Stabilizes the pipe, reduces movement during grooving, and improves groove accuracy and operating safety.

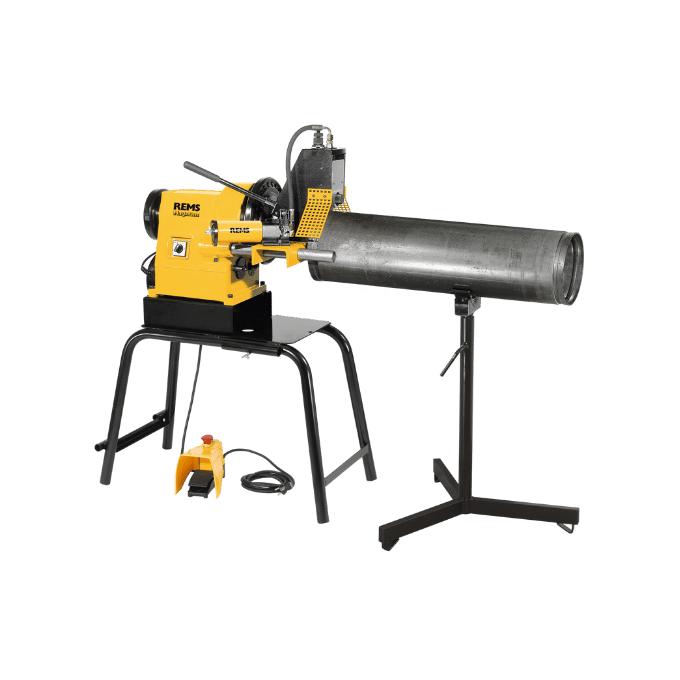

REMS Magnum pipe grooving application
Features
Product Features
Designed around large-size pipe grooving capacity, multi-material compatibility, jobsite and factory use, and pipe support stability for professional piping and industrial assembly work.
1–12" Grooving Capacity

Suitable for standard steel pipe grooving across a wide range of pipe sizes.

Multi-Material Support

Can process standard steel pipe, stainless steel pipe, copper pipe, aluminum pipe, and PVC pipe.

For Jobsites and Factories

Suitable for both on-site installation and factory assembly or prefabrication work.

More Stable with Pipe Support

Herkules 3B pipe support helps stabilize the pipe and improve grooving accuracy and safety.

For Fire Protection and Building Piping

Suitable for fire protection piping, building pipework, and large MEP installation projects.

Solid Machine Structure

68 kg machine weight provides higher stability for professional jobsite use.

Applications
Applications
Suitable for jobsite installation, factory assembly, fire protection piping, building pipe installation, industrial piping, pipe prefabrication, and piping systems requiring grooved coupling connections.
Fire Protection Piping

Suitable for grooved coupling preparation in fire protection piping systems.

Building Pipe Installation

Can be used for steel pipes and various pipe materials in building projects.

Industrial Assembly

Suitable for industrial pipelines, equipment piping, and factory prefabrication processes.

Jobsite Work

Enables on-site grooving work, reducing outsourcing or pipe transport time.

Pipe Prefabrication

Suitable for batch pipe processing to improve preparation efficiency and consistency.

Multi-Material Pipework

Supports standard steel pipe, stainless steel pipe, copper pipe, aluminum pipe, and PVC pipe applications.
