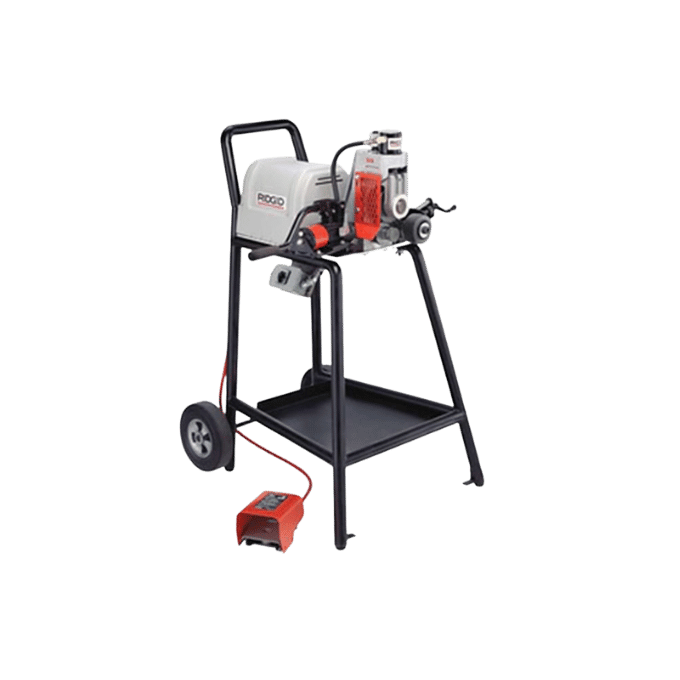

RIDGID 918I Hydraulic Roll Groover

RIDGID_ditch_Roll-Groover_918i
U.S.A.
RIDGID
918I

Hydraulic Roll Groover

Grooving capacity: 1"–8" Sch.40 standard steel pipe｜1"–12" Sch.10 standard steel pipe｜2"–6" copper pipe｜2 1/2"–6" Sch.80 plastic pipe｜1200W motor｜15-ton pressure｜Integrated cart design.
Product Features
  • Wide Grooving Capacity: Covers Sch.40 steel pipe, Sch.10 steel pipe, copper pipe, and Sch.80 plastic pipe.
  • Multi-Material Application: Suitable for grooving stainless steel, steel, copper, and PVC pipes.
  • 1200W Powerful Motor: Provides stable power and works with the hydraulic system to generate 15-ton pressure.
  • Integrated Cart Design: Groover body and motor are mounted on a cart for easier jobsite movement.
  • One-Person Operation: Simple setup and operation for construction sites and workshop assembly.
  • Short Pipe Support: Provides better support and smoother handling when grooving short pipe sections.
  • Quick-Change Groove Sets: Groove sets can be changed according to pipe size for greater flexibility.
Add to Inquiry
Tags
Show
＃Plastic Pipe ＃12" ＃Soft & Hard Copper Tubes ＃Galvanized Steel Pipe ＃1"

Model Specifications

SKU
Model
Description
Weight
Remarks
64977
918-I
115V groover body with pump, dismantling tool set, cart, support, and foot switch. Includes one set each of 2"–6" and 8"–12" grooving sets.
84.1 kg

Product Details

Product Overview
Mobile Integrated Roll Grooving Machine｜1200W 15-Ton Cart-Mounted Groover
This mobile integrated roll grooving machine features a compact design, powerful performance, and strong jobsite mobility. It is suitable for grooving stainless steel pipe, steel pipe, copper pipe, PVC pipe, and other pipe materials. The grooving body and motor are integrated into one unit and mounted on a cart structure for easy movement, making it especially suitable for jobsites, factory assembly, fire protection piping, industrial pipework, and equipment installation projects.
Product Type
Mobile integrated roll grooving machine
Motor Power
1200 W
Maximum Grooving Pressure
15 tons
Applicable Materials
Stainless steel pipe, steel pipe, copper pipe, PVC pipe
Machine Design
Integrated grooving body and motor with cart-mounted structure
Operation Method
Setup and operation can be completed by one person
Short Pipe Work
Can be used with a short pipe support to make alignment easier and operation safer
The value of a mobile groover is not only 15-ton pressure, but jobsite mobility, one-person operation, and stable short-pipe processing

The real efficiency bottleneck on jobsites is usually not single-cycle grooving speed, but equipment movement, setup alignment, manpower allocation, and short pipe handling. This integrated grooving machine combines the motor, grooving body, and cart structure. With a 1200W motor and 15 tons of grooving pressure, it helps reduce handling and coordination costs while making grooving faster, more stable, and more consistent.

Grooving Capacity
Grooving Capacity
Supports standard steel pipe, copper pipe, plastic pipe, and other common pipe specifications, making it suitable for grooved connection work in fire protection piping, industrial pipework, equipment installation, and building MEP piping.
Sch. 40 Standard Steel Pipe
1"–8"
Sch. 10 Standard Steel Pipe
1"–12"
Copper Pipe
2"–6"
Sch. 80 Plastic Pipe
2 1/2"–6"
Selection point: confirm pipe material, diameter, and wall thickness before confirming grooving roll configuration

Even for the same 6" pipe size, different materials and Schedule ratings affect groove forming conditions. Before use, confirm the pipe material, diameter, wall thickness, and coupling specification, then match the correct grooving roll and work setting to avoid inconsistent groove dimensions, poor joint sealing, or excessive equipment load.

Features
Product Features
Built around a powerful 1200W motor, 15-ton high-pressure grooving capacity, integrated cart-mounted structure, one-person operation, and short pipe support configuration, this machine is suitable for high-intensity jobsite work and factory assembly.
Multiple Pipe Materials

Suitable for grooving stainless steel pipe, steel pipe, copper pipe, PVC pipe, and other pipe materials.

15-Ton Grooving Pressure

Provides powerful grooving pressure for fast, stable, and consistent groove forming.

1200W Powerful Motor

Delivers sufficient power for high-intensity work and continuous jobsite operation.

Integrated Design with Cart Structure

The grooving body and motor are integrated with a cart-mounted design for easy movement and jobsite-friendly use.

One-Person Operation

Setup and operation can be completed by one person, saving manpower and improving jobsite efficiency.

Short Pipe Support Configuration

Short pipes are easier to align during grooving, making operation smoother and improving safety.

Applications
Applications
Suitable for fire protection piping, industrial pipework, equipment installation, building MEP piping, factory assembly, pipe prefabrication, and various piping projects requiring grooved connections.
Fire Protection Piping

Suitable for grooved coupling work in fire protection piping, improving jobsite connection efficiency and consistency.

Industrial Pipework

Can be used for grooved connections in industrial piping, equipment piping, and large piping systems.

Equipment Installation

Suitable for equipment piping, mechanical rooms, and on-site installation requiring grooving work.

Jobsite Construction

The cart-mounted structure is easy to move and suitable for quick relocation between different work areas.

Factory Assembly and Prefabrication

Can be used for pipe prefabrication, batch processing, and standardized assembly workflows in factories.

Short Pipe Grooving

With the short pipe support, it is suitable for short pipe processing, repair modification, and special-length pipe handling on site.
