REMS Hydraulic Roll Grooving Attachment for DN 25–300 Pipes
Home- Products
- Roll Grooving & Pipe Cutting Tools
- Roll Groover
- Hydraulic Roll Grooving Attachment
This Hydraulic Roll Grooving Attachment delivers precise grooves for DN 25–300 (1–12 in.) steel pipes up to 7.2 mm wall thickness. With optional rollers, it also handles stainless steel, copper, aluminum, and PVC pipes.
Product Features
- Compact and jobsite-ready
- Hand-operated hydraulic feed
- Accurate groove-depth control
- Secure pipe rotation
- Wide working range
- Durable grooving rollers
- Compatible with multiple power drives
- Optional quick-change system
Tags
Show
Model Specifications
Product Details
Product Overview
REMS Hydraulic Roll Groover｜DN 25–300 Grooved Pipe Processing Equipment

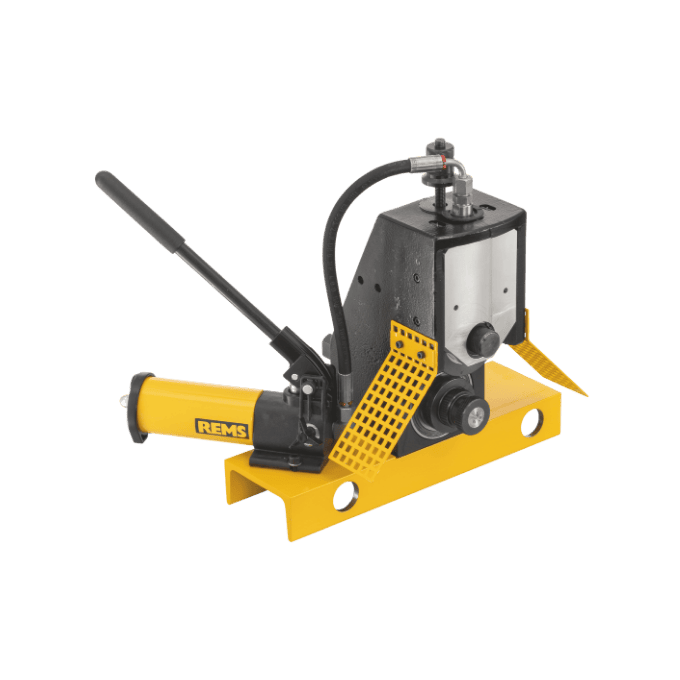

The REMS hydraulic roll groover is designed for grooved pipe joining systems. With a robust metal body, manual hydraulic feed, and precise depth control, it can quickly and steadily form consistent grooves on pipe surfaces. Its compact structure and approx. 26 kg weight make it suitable for jobsites, machine rooms, pipe prefabrication workshops, and repair work.
Technical Data
Technical Data
Steel pipe capacity covers DN 25–300 / 1"–12", with maximum pipe wall thickness up to 7.2 mm. With different roller sets for various materials and sizes, it can also process stainless steel pipe, copper pipe, aluminum pipe, and PVC pipe for diverse piping project needs.
Equipment Type
Hydraulic roll groover
Applicable System
Grooved pipe joining system
Steel Pipe Capacity
DN 25–300 (1"–12")
Maximum Wall Thickness
Up to 7.2 mm
Equipment Weight
Approx. 26 kg
Feed Method
Manual hydraulic pump controls pressure roller feed
Depth Control
Stepped adjustment dial and automatic depth stop
Applicable Materials
Steel pipe, stainless steel pipe, copper pipe, aluminum pipe, PVC pipe
Fast and stable groove forming improves grooved pipe joining efficiency
The core value of the REMS hydraulic roll groover lies in stable pressure, precise depth control, and repeatable groove quality. For fire protection, HVAC, machine room, and industrial piping projects that require large quantities of grooved pipe joining, it helps improve work efficiency and reduce manual judgment errors.
Core Design
Core Features
The manual hydraulic pump controls the pressure roller feed and provides stable, sufficient forming pressure. The built-in stepped adjustment dial and automatic depth stop allow quick groove depth setting and help reduce manual judgment errors.
Hydraulic Feed
Stable control of pressure roller feed pressure
Depth Setting
Quick groove depth setting for improved consistency
Roller Structure
Cross-knurled surface helps firmly drive pipe rotation
Roller Material
Made of hardened special steel for good wear resistance
Features
Product Features
Built around stable hydraulic feed, precise depth control, wear-resistant rollers, and modular roller configuration, this equipment is suitable for various pipe materials and on-site pipe processing requirements.
Manual Hydraulic Feed
The manual hydraulic pump controls pressure roller feed and provides stable, sufficient forming pressure.

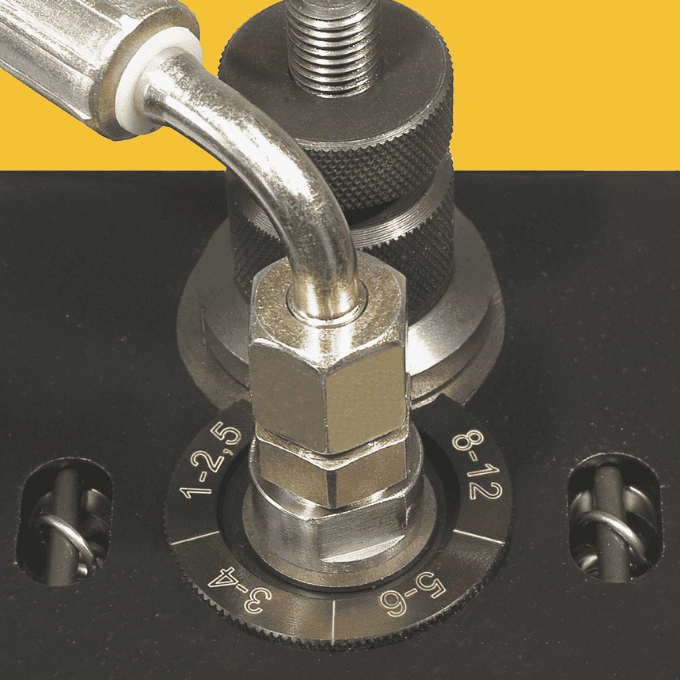

Precise Depth Control
The stepped adjustment dial and automatic depth stop allow quick groove depth setting and reduce manual judgment errors.

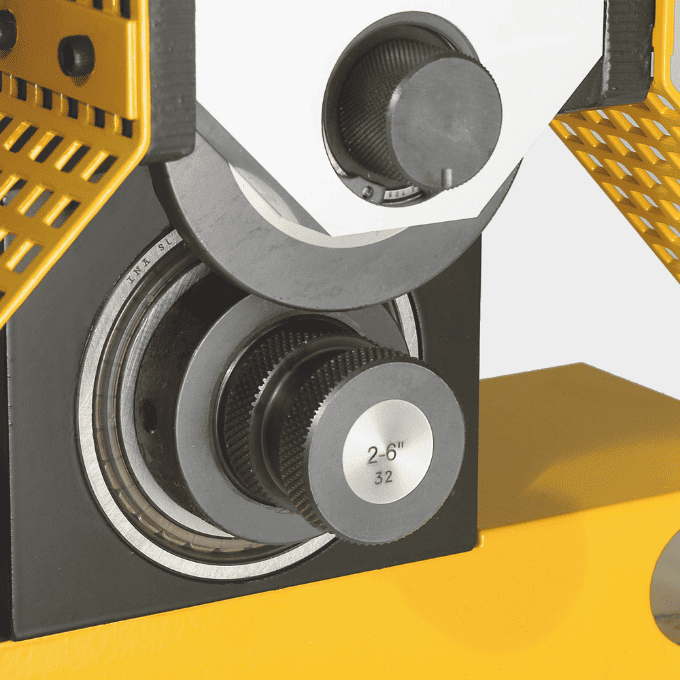

Stable Pipe Rotation
Optimized pressure rollers and support rollers with cross-knurled surfaces firmly drive pipe rotation.
Hardened Special Steel Rollers
The rollers are made of hardened special steel, providing good wear resistance and long service life.
Modular Roller Design
Different roller sets for various sizes or materials can be changed quickly, making adjustment easier according to pipe specifications.
Compact Jobsite Use
With an approx. 26 kg weight, it is suitable for jobsites, machine rooms, prefabrication workshops, and repair sites.
Applications
Applications
Suitable for fire sprinkler and fire protection piping, HVAC chilled water and cooling water piping, water supply, industrial process piping, machine room piping, pipe prefabrication, repair and retrofit work, and grooved coupling pipe joining systems.
Fire Sprinkler and Fire Protection Piping
Suitable for pipe processing needs in fire protection systems using grooved pipe joining.
HVAC, Chilled Water, and Cooling Water Piping
Applicable for groove forming in air-conditioning, chilled water, and cooling water systems.
Water Supply and General Transport Piping
Can be used for grooved joining work in water supply and general transport piping systems.
Industrial Process Piping
Suitable for industrial pipelines, process piping, and equipment piping work.
Machine Room and Equipment Piping
Applicable for machine room equipment, pump lines, and fixed-location piping installation.
Pipe Prefabrication and Assembly
Suitable for pipe prefabrication workshops, on-site assembly, and batch processing requirements.
Pipeline Repair and Retrofit Work
Can be used for existing pipeline repair, retrofit, and partial replacement work.
Grooved Coupling Pipe Joining Systems
Suitable for piping projects using couplings, fittings, and grooved joining systems.
Finished groove dimensions must still follow fitting and coupling manufacturer specifications
After pipe processing, groove dimensions must still comply with the technical specifications of the fittings, couplings, and grooved pipe joining system manufacturer being used.
