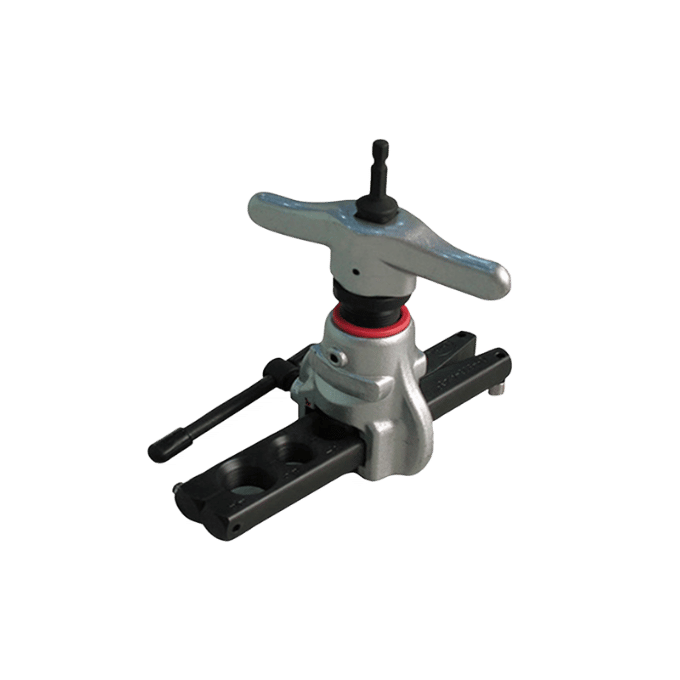

- 806B 偏心式擴喇叭口器(套筒式) 806B
Suitable for aluminum, soft copper, and hard copper pipes from 1/4" ~ 3/4"｜45° flaring｜Eccentric cone design｜Manual or power-tool operation.
Easy, low-effort operation with smooth and even flaring, ideal for air-conditioning, refrigeration, and piping maintenance.
Easy, low-effort operation with smooth and even flaring, ideal for air-conditioning, refrigeration, and piping maintenance.
Product Features
- 45° Precision Flaring: Creates standard 45° flares for air-conditioning and piping work.
- Multi-Material Application: Suitable for aluminum, soft copper, and hard copper pipes.
- Eccentric Cone Design: Produces rolling expansion with less effort.
- Even Flare Formation: Creates smooth, uniform flares while reducing pipe wall scratches and deformation.
- Automatic Free-Rotation Protection: Releases into free rotation after flaring is completed to prevent pipe damage.

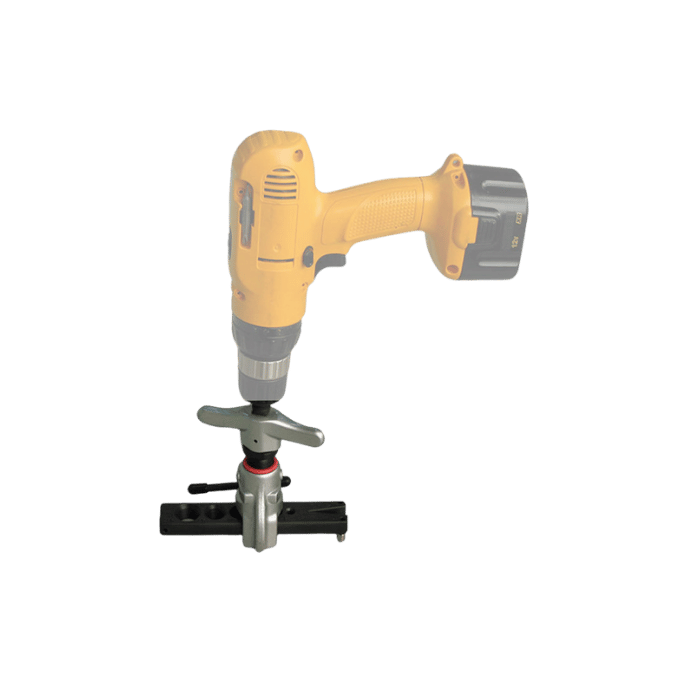

- Power Tool Compatible: Can be driven by power tools at 100–600 RPM for higher work efficiency.
Model Specifications
Product Details
Technical Data
Product Specifications
45° flaring tool for aluminium tubes, soft copper tubes, and hard copper tubes. The eccentric cone design helps produce uniform flares with less effort, and the tool can also be driven by a power tool for faster operation.
Applicable materials
Aluminium, soft copper, hard copper
Flaring angle
45° flare
Forming method
Eccentric cone rolling formation
Manual operation
Turn the handle to advance downward
Power tool drive
Compatible, recommended speed 100 ~ 600 RPM
Protection design
Automatically releases and idles after completion to prevent tube damage
Flaring result
Uniform flare, even wall thickness, reduced surface damage
Eccentric Cone 45° Flaring
The eccentric cone design creates a rolling action that forms a uniform flare with minimal effort. It helps keep the tube wall even and reduces scratching. Once the flare is completed, the tool automatically releases into idle rotation to help prevent tube damage.
Features
Product Features
Designed for low-effort operation, uniform flare formation, tube protection, and optional power tool assistance for faster field work.
Eccentric Cone Design
Uses eccentric cone rolling action to create more uniform flares with less operating effort.
45° Flare Formation
Designed for standard 45° flare formation on refrigerant piping and thin-wall metal tubing.
Power Tool Compatible
Can be driven by a power tool at a recommended speed of 100 ~ 600 RPM for faster repeated work.
Even Tube Wall, Less Scratching
Rolling formation distributes force evenly, helping reduce scratching, deformation, and uneven flare results.
Automatic Idle Protection
After forming is completed, the tool automatically releases and idles to help prevent overloading or tube damage.
Simple and Intuitive Use
Can be operated manually or with a power tool, making it suitable for quick flare preparation during field installation and repair work.
Applications
Applications
Suitable for 45° flare formation on aluminium, soft copper, and hard copper tubes, widely used in refrigerant piping, refrigeration equipment, HVAC systems, and field pipe installation.
Air Conditioning Refrigerant Piping
Suitable for 45° flare preparation on refrigerant copper tubes before connection work.
Refrigeration and HVAC Equipment
Suitable for flare forming on thin-wall metal tubes used in refrigeration equipment and HVAC systems.
Field Installation and Repair
Suitable for maintenance, modification, and on-site pipe installation requiring fast and consistent tube-end flaring.
