REED-Quick-Release-Cutter-TC8Q-series

REED_quick_release_cutter_for_large_pipe_TC8QP
REED_quick_release_cutter_for_large_pipe_0TC8QPL
U.S.A.
REED
TC8Q系列

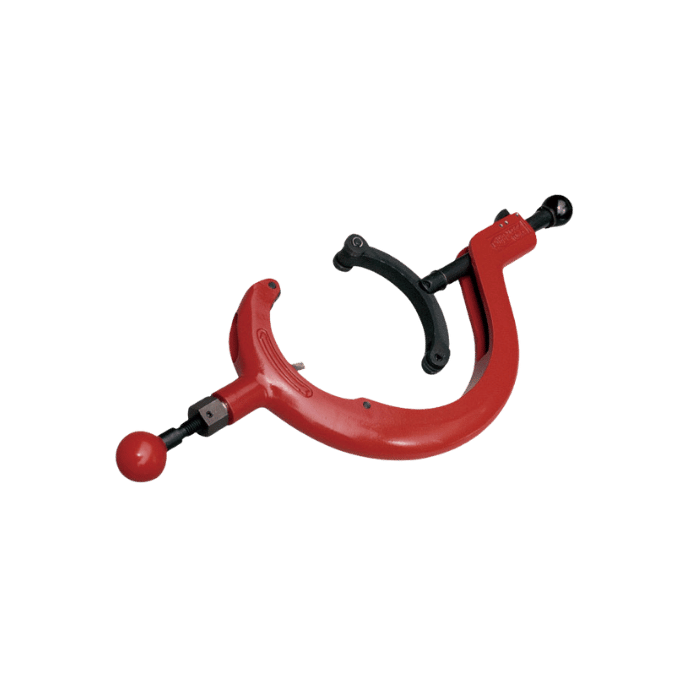

Quick Release Cutter

Suitable for pipe sizes 6 1/4"–10" (159–254 mm)｜For large-diameter PE, PP, PVC, and related plastic pipes｜Dual cutting options: cutter wheel / blade-style cutting｜Replaceable accessories.
Product Features
  • Large-Diameter Plastic Pipe Application: Cuts 159–254 mm PE, PVC, and related plastic pipes.
  • Dual Cutting Design: Supports cutter wheel or blade-style cutting for greater flexibility.
  • Precise Parallel Cutting: Outer-edge rollers keep the cutter aligned with the pipe for better cutting accuracy.
  • Heavy-Duty Blade: Durable carbide-tipped blade for demanding jobsite use.
  • Confined-Space Application: Suitable for underground piping, trench work, and restricted working areas.
  • 15° Beveled Cut: Creates a beveled pipe edge after cutting to support better sealing and joining.
  • Replaceable Accessories: Accessories can be changed according to material and jobsite needs.
Add to Inquiry
Tags
Show
＃10" ＃6" ＃Plastic Pipe

Model Specifications

SKU
Model
Description
Weight
Remarks
04170
TC8QP
For 6 1/4"–10" (159–254 mm), for PE / PVC cutting.
3.6 kg
Cutting Wheel 80P
04171

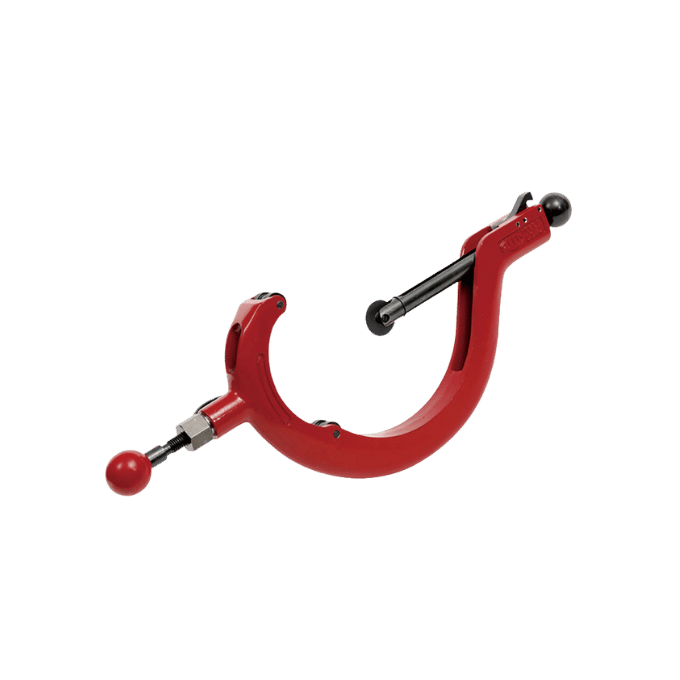

TC8QPL
For 6 1/4"–10" (159–254 mm), for 19 mm thick PE cutting.
3.6 kg
Cutting Wheel 80P
04172
TC8Q680PVC
For 6 1/4"–10" (159–254 mm), for PVC / NYLON cutting
3.6 kg
Cutting Wheel 680PVC

Product Details

Technical Data
Product Specifications
This large-diameter plastic pipe cutter is suitable for cutting 6"–28" / 160–800 mm PVC, PE, and similar plastic pipes. Equipped with durable carbide-tipped blades, it can cut pipe walls up to 2" / 50 mm thick. Outer rollers help keep the cutter parallel to the pipe, making it especially suitable for large pipe cutting in trenches, ground-level work, and confined spaces.
Cutting Capacity
6"–28" / 160–800 mm
Applicable Pipes
PVC, PE, and similar plastic pipes
Blade
Durable carbide-tipped blade
Maximum Wall Cutting Depth
Up to 2" / 50 mm
Required Clearance
Approx. 15–20 cm clearance for confined-space operation
Cutting Result
Creates a 15° bevel along the pipe edge
Large-Diameter Pipe Cutting for Trenches and Confined Spaces

Outer rollers help keep the cutter parallel to the pipe for more accurate cutting. The cut creates a 15° bevel, helping improve pipe-end cleanliness and subsequent installation quality.

Cutting Range
Cutting Range Details
Different PE pipe sizes correspond to different wall thickness capacities. Confirm the applicable range according to the actual pipe specification before use.
6"–28" / 160–800 mm

Suitable for cutting PVC, PE, and similar plastic pipes.

6"–14" PE Pipe

Cuts wall thickness up to 5 cm.

15"–18" PE Pipe

Cuts wall thickness up to 3.8 cm.

19"–24" PE Pipe

Cuts wall thickness up to 2.5 cm.

Blade Options
Blade Options
Select the proper blade according to pipe wall thickness and compatible machine model.
Blade Specifications
04198 6QP

Wall thickness ≤ 14.0 mm, for TC6Q and TC8Q.

04199 80P

Wall thickness ≤ 19.1 mm, for TC6Q and TC8Q.

04192 680PVC

Wall thickness ≤ 14.6 mm, for TC6Q and TC8Q.

Features
Product Features
Designed for large-diameter plastic pipe cutting, balancing cutting accuracy, confined-space operation, and jobsite efficiency.
Outer Roller Alignment

Outer rollers keep the cutter parallel to the pipe, helping ensure cutting accuracy.

15° Bevel Cut

The cut line creates a 15° bevel along the pipe edge, improving cutting cleanliness.

Confined-Space Operation

Requires only about 15–20 cm clearance, suitable for trenches or restricted spaces.

Carbide-Tipped Blade

Uses durable carbide-tipped blades to handle large-diameter and thicker-wall pipe cutting needs.

Applications
Applications
Suitable for cutting large-diameter PVC and PE pipes in municipal, petroleum, chemical, construction, and large-scale engineering projects. Especially suitable for underground, trench, ground-level, and confined-space work.
Large-Diameter Pipe Cutting

Used for cutting large-diameter PVC and PE pipes in municipal, petroleum, chemical, and related industries.

Underground and Trench Work

Especially suitable for large pipe cutting during underground installation or trench work.

Industrial Installation and Repair

Can be used for installing, repairing, and replacing large-diameter pipes while improving cutting efficiency.

Construction and Large Projects

Suitable for large pipe construction needs in building sites and major engineering projects.
