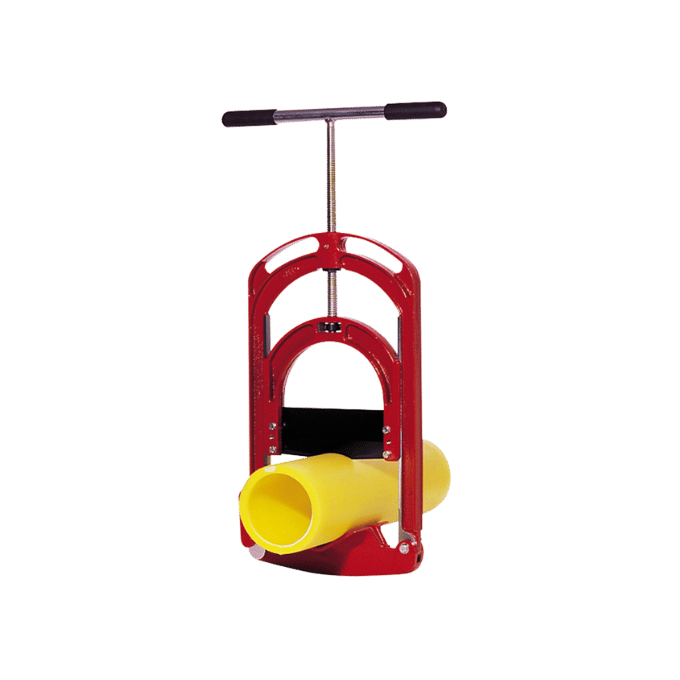

Guillotine-Pipe-Cutter-REED-HPC-series

REED_guillotine_pipe_cutter_04604
U.S.A.
REED
HPC系列

Guillotine Pipe Cutter

Suitable for PE pipes SDR17 and above｜For medium- and high-density PE pipes up to 12" (350 mm)｜PTFE-coated blade｜Ideal for pipe-end preparation before electrofusion.
Delivers stable and accurate cutting while reducing chip blockage and pipe-end finishing work, especially suitable for PE pipe electrofusion preparation.
Product Features
  • Precise Square Cutting: Produces straight, clean cuts within approx. 3 mm tolerance.
  • Electrofusion Preparation: Reduces pipe-end finishing work before electrofusion installation.
  • PTFE-Coated Blade: Helps prevent cutting chips from clogging the tool for smoother operation.
  • Designed for PE Pipes: Suitable for SDR17 and above medium- and high-density PE pipes.
  • Thin-Wall Pipe Protection: Helps reduce pipe flattening risk when cutting thin-wall PE pipes.
  • Confined-Space Operation: 30°–60° swing cutting design allows use within approx. 15 cm clearance.
  • Serviceable Blade: Blade can be resharpened or replaced to extend tool life.
Add to Inquiry
Tags
Show

Model Specifications

SKU
Model
Description
Weight
Remarks
04612
HPC12
For 4"–12" (114–350 mm)
45.5kg
Length 1295 mm
04608
HPC8
For 3"–8" (90–225 mm)
16kg
Length 750mm
04604
HPC4
For 2"–4" (63–125 mm)
8kg
Length 482mm

Product Details

Technical Data
Product Specifications
PE pipe cutter designed for PE pipes with wall thickness of SDR17 and above, supporting medium- and high-density PE pipes up to 12" / 315 mm. Equipped with a durable Teflon-coated blade for fast, square cutting, helping prevent cutting chips from blocking valves. Ideal for precise pipe-end preparation before electrofusion.
Application Range
PE pipes with wall thickness of SDR17 and above
Cutting Capacity
Up to 12" / 315 mm medium- and high-density PE pipes
Pipe Tolerance
Handles PE pipes within approx. 3 mm tolerance
Blade Design
Durable Teflon-coated blade
Cutting Result
Fast square cuts with reduced chip generation
Blade Maintenance
Blade can be resharpened and replaced
Pipe Type
Medium- and high-density PE pipes; also suitable for thin-wall PE pipe cutting below SDR17
Square Cutting for PE Pipes Before Electrofusion

Creates clean, square pipe ends quickly, reducing the need for later trimming and helping prevent chips from affecting valves and piping systems. Suitable for PE pipe installation and repair where precise pipe-end preparation is required.

Blade Options
Blade Options
Select the proper blade according to the machine model. Blades can be resharpened or replaced to maintain long-term cutting performance.
40329 HPC4B

Blade for HPC4.

40027 HPC8B

Blade for HPC8.

94903 HPC12B

Blade for HPC12.

Features
Product Features
Designed for PE pipe square cutting and electrofusion preparation, focusing on clean cut edges, chip reduction, blade durability, and reduced pipe deformation.
Square Cutting

Creates clean square cuts quickly and reduces the need for later finishing.

Suitable for Electrofusion

Clean pipe ends help support pipe preparation before electrofusion work.

Reduced Chip Generation

Blade design helps prevent cutting chips from blocking valves or affecting the piping system.

Durable Maintainable Blade

Teflon-coated blade is durable and can be resharpened or replaced for long-term performance.

For Medium- and High-Density PE Pipes

Handles medium- and high-density PE pipes up to 12", suitable for larger pipeline projects.

Thin-Wall Pipe Friendly

Also suitable for thin-wall PE pipe cutting, helping reduce the risk of crushing or deformation.

Applications
Applications
Suitable for PE pipe installation, repair, electrofusion preparation, medium- and high-density PE pipe cutting, and thin-wall PE pipe cutting where accurate, clean pipe ends are required.
PE Pipe Square Cutting

Especially suitable for square cutting PE pipes of SDR17 and above with minimal need for later finishing.

Preparation Before Electrofusion

Clean cut ends support proper pipe preparation before electrofusion work.

Medium- and High-Density PE Pipes

Suitable for cutting medium- and high-density PE pipes up to 12".

Thin-Wall PE Pipe Cutting

Also works on thin-wall PE pipes while helping reduce crushing or deformation during cutting.

Pipe Installation

Suitable for PE pipe installation where fast and accurate cutting is required.

Repair and Replacement

Can be used for PE pipe repair, replacement, and existing pipeline renewal work.
