GENERAL Drum-type-Drain-Cleaner-Mini-Pro

GENERAL_Clean_Drain Machines_MiniPro_111070
GENERAL_Clean_Drain Machines_MiniPro_111070_1
U.S.A.
General Pipe

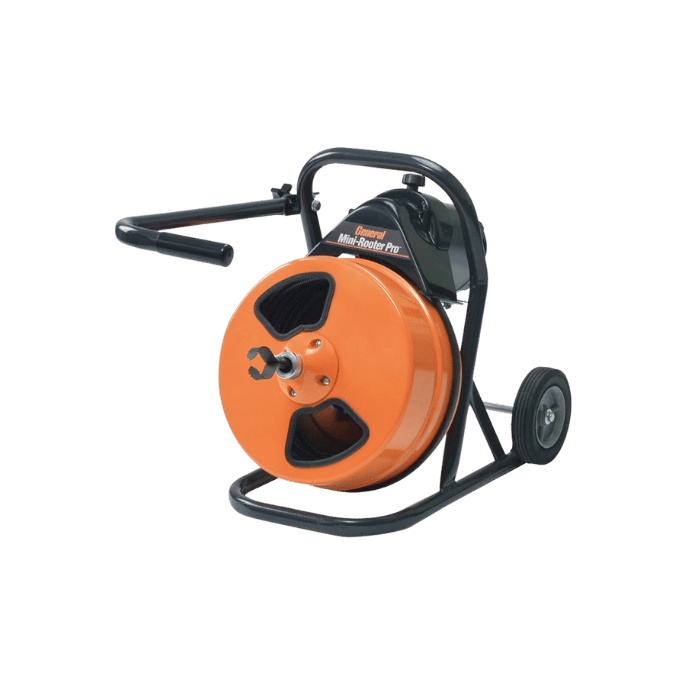

Mini Pro

Drum type Drain Cleaner

Suitable for 1"–4" drain lines｜1/3 HP｜165 RPM｜Weight 20 kg｜Compatible with 3/8"–1/2" Flexicore® cables.
Plug-in design with a portable body. Optional power cable feed and pneumatic foot switch are available, ideal for residential, commercial, and industrial drain cleaning.
Product Features
  • Stable Plug-In Power: 1/3 HP motor delivers reliable drain cleaning performance for various applications.
  • Optional Power Cable Feed: Automatically feeds or retrieves cable at up to approx. 4.88 m / min for better efficiency.
  • Pneumatic Foot Switch: Allows foot-controlled start / stop operation, keeping both hands free for cable handling.
  • Safety Protection Design: Equipped with GFCI protection and a high-strength housing to protect the motor.
  • Flexicore® Cable Performance: Solid-core cable construction provides both strength and flexibility for drain cleaning work.

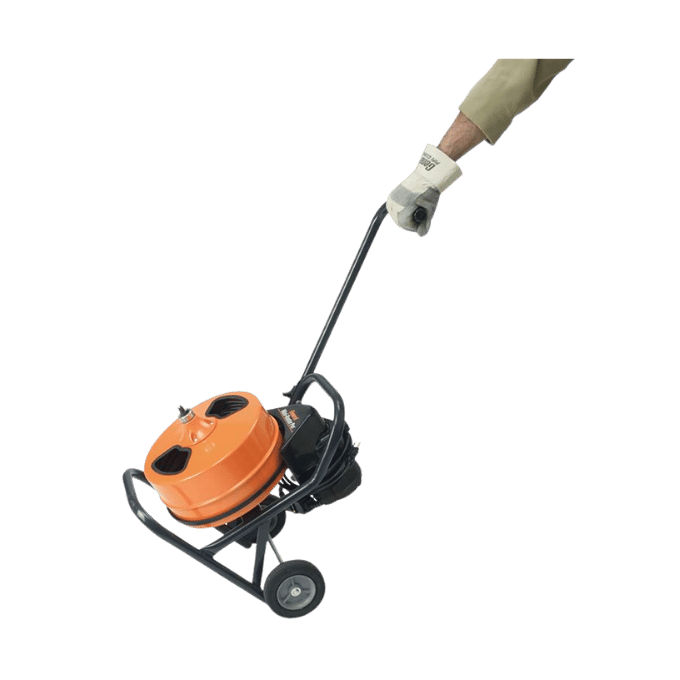

  • Portable Body Design: Approx. 20 kg body for easier transport and jobsite mobility.
Add to Inquiry
Tags
Show
＃4" ＃1"

Model Specifications

SKU
Model
Description
Weight
Remarks
111070
MRB
120V / 60Hz, 1/3 HP, equipped with pneumatic foot pedal, with 10' power cord and ground fault circuit interrupter (GFCI), rotation speed 165 rpm; Cable: one 3/8" × 75' solid-core cable; Included: MRCS tool set.
30.9 kg
167870
MR250
J-type drum (cable not included), suitable for 1/4" or 5/16" cables
168900
POMR
Automatic feed and retract system

Product Details

Technical Data
Product Specifications
A professional drum-type drain cleaning machine, Mini Pro,  suitable for 1"–4" drain lines. Different cables and cutter heads can be selected according to pipe size and blockage conditions, making it suitable for residential, commercial, and light industrial drainage maintenance.
Cleaning Capacity
Suitable for 1"–4" drain lines
1/2" Cable
Cleans 3"–4" lines, up to 15 m
3/8" Cable
Cleans 2"–3" lines, up to 22 m
1/4" or 5/16" Cable
Cleans 1 1/4"–2" lines, up to 15 m, requires J-Drum
Machine Dimensions
51 cm L × 41 cm W × 96–51 cm H
Weight
20 kg
Motor Power
1/3 HP
Speed
165 RPM
Select the Right Cable by Pipe Size for Better Cleaning Efficiency

Different cable sizes correspond to different pipe diameters and bend flexibility. Cutter heads can be selected according to site requirements to improve blockage removal efficiency and jobsite flexibility.

Cable Options
Cable Models
Choose 3/8" or 1/2" inner-core cables based on cleaning distance and pipe size requirements, with multiple length options available.
121020｜25EM2

3/8" × 25' inner-core cable

121030｜50EM2

3/8" × 50' inner-core cable

121040｜75EM2

3/8" × 75' inner-core cable

121050｜100EM2

3/8" × 100' inner-core cable

121060｜25EM3

1/2" × 25' inner-core cable

121070｜50EM3

1/2" × 50' inner-core cable

121080｜75EM3

1/2" × 75' inner-core cable

121090｜100EM3

1/2" × 100' inner-core cable

Cutters
Cutter Accessories
Suitable for 3/8" and 1/2" cables. Cutter heads can be selected according to blockage type, including bulb augers, U-cutters, arrow cutters, side cutters, retrieving augers, and more.

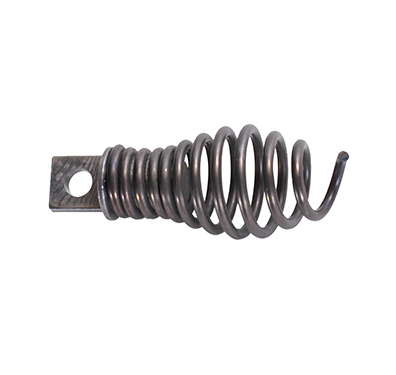

BG Bulb Auger
130130｜BG

Bulb Auger

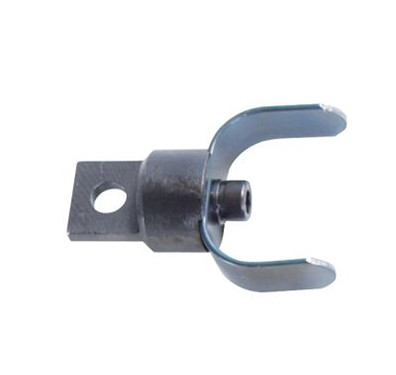

112UC U-Cutter
130420｜112UC

1½" U-Cutter

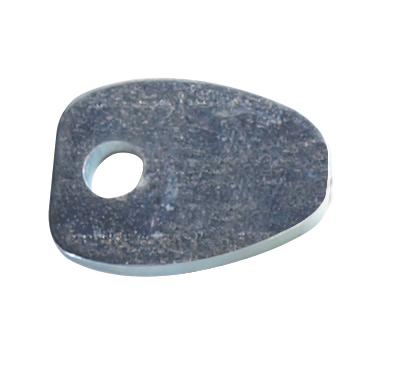

AH Arrow Cutter
130110｜AH

Arrow Cutter

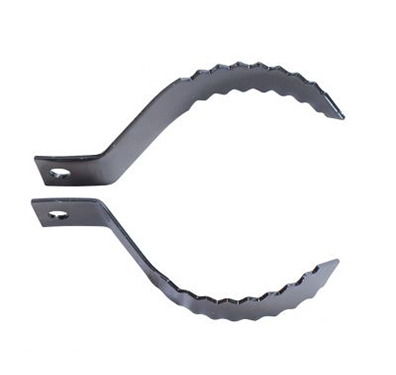

SCB Side Cutter
130170 / 130180 / 130190
｜2SCB / 3SCB / 4SCB

2", 3", 4" Side Cutter

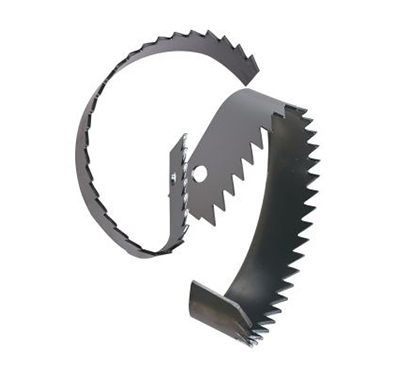

3RSB Spiral Sawtooth Cutter
130210｜3RSB

3" Spiral Sawtooth Cutter, 4" also available

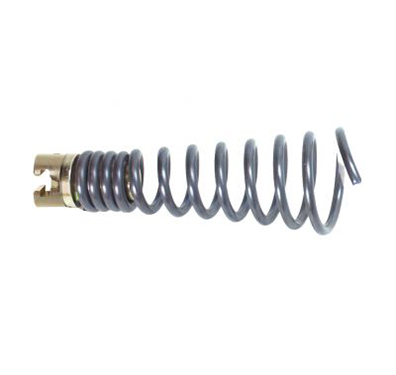

RTR1 Retrieving Auger
130360｜RTR1

Retrieving Auger

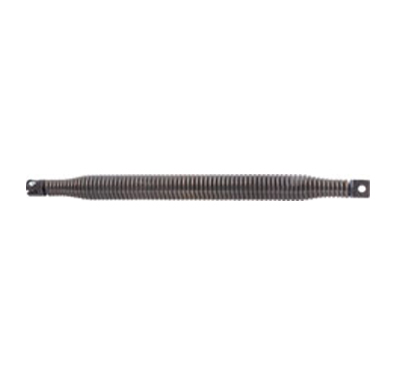

LE1 Leader Tube
130340｜LE1

13" Leader Tube

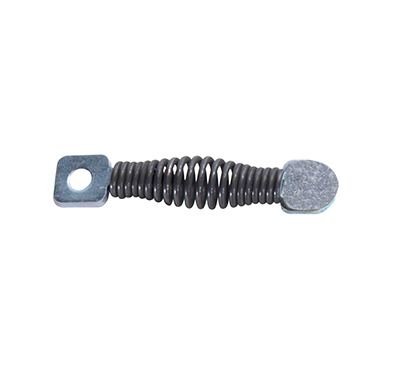

FAH Spring Arrow Cutter
130120｜FAH

Spring Arrow Cutter

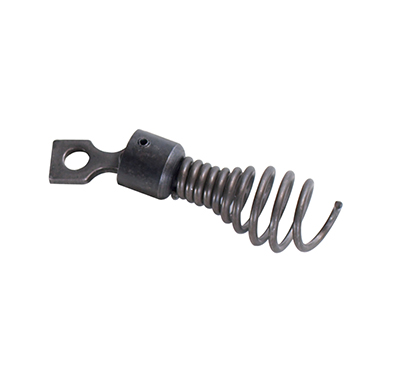

DHBG Drop Head Auger
130140｜DHBG

Drop Head Auger

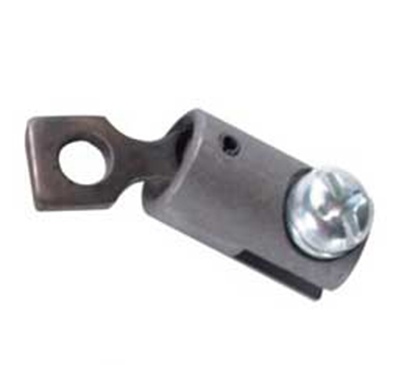

DHF Drop Head Adapter
130150｜DHF

Drop Head Adapter

Applications
Applications
Suitable for routine maintenance and professional drain cleaning in residential, commercial, and light industrial drainage systems.
Residential and Commercial Drain Systems

Suitable for cleaning drain lines in sinks, toilets, showers, bathrooms, and similar applications.

Multi-Floor Drain Cleaning

Can clean drain lines from rooftop to lower floors, suitable for apartments, buildings, hotels, and public facilities.

Professional Small-Line Cleaning

Can be used with J-Drum for smaller, more flexible cables to handle narrow or highly curved lines.
