U.S.A.
General Pipe
SP92

Autofeed Drum Type Drain Cleaner

Suitable for 2"–10" drain lines｜Flexicore® cables 5/8" / 3/4"｜Heavy-duty variable-speed feed up to 20 ft/min｜1/2 HP motor｜Flexitube™ guide tube｜10" semi-pneumatic wheels.
Powerful, durable, and easy to transport, ideal for long-distance and large-diameter drain cleaning, including roots, grease, and tough blockages.
Product Features
  • Large-Diameter Cleaning: For 2"–10" drain lines and long-distance cleaning.
  • Flexicore® Cables: Supports 5/8" and 3/4" cables for strength and flexibility.
  • Variable-Speed Feed: Feeds and retrieves cable up to 20 ft/min.
  • 1/2 HP Motor: Stable power for roots, grease, and tough blockages.
  • Flexitube™ Guide Tube: Reduces cable tangling inside the drum.
  • Reinforced Frame: Built for demanding jobsite transport.
  • V-Belt Stair Climber: Easier movement up and down stairs.
  • Folding Handle: Saves space during transport and storage.
  • 10" Semi-Pneumatic Wheels: Moves smoothly over rough terrain.
  • Handle Assist Wheels: Helps load the machine into service vehicles.
  • Automatic Cable Feed: Reduces operator effort and improves efficiency.
Add to Inquiry
Tags
Show
＃10" ＃2"

Model Specifications

SKU
Model
Description
Weight
Remarks
108690
SP92-E
120V / 60Hz, 1/2 HP, with automatic feed and retract and pneumatic foot pedal, equipped with 20' power cord and ground fault circuit interrupter (GFCI), rotation speed 170 rpm; Cable: one 5/8" × 100' solid-core cable; Included: SRCS tool set.
100 kg

Product Details

Technical Data
Product Specifications
Speedrooter 92 is a professional drain cleaning machine designed for large drainage systems, covering 2"–10" lines. It can be used with 5/8" or 3/4" inner-core cables, making it suitable for cleaning and maintaining commercial, industrial, and large residential drainage systems.
Cleaning Capacity
Suitable for 2"–10" drain lines
5/8" Cable
For 3"–6" lines, up to 100'
3/4" Cable
For 6"–10" lines, up to 100'
Large-Line Drain Cleaning for High-Load Jobsites

Different cables and cutter heads can be selected according to pipe diameter, blockage type, and cleaning distance, making it suitable for handling roots, grease buildup, solid obstructions, and other large-line drainage problems.

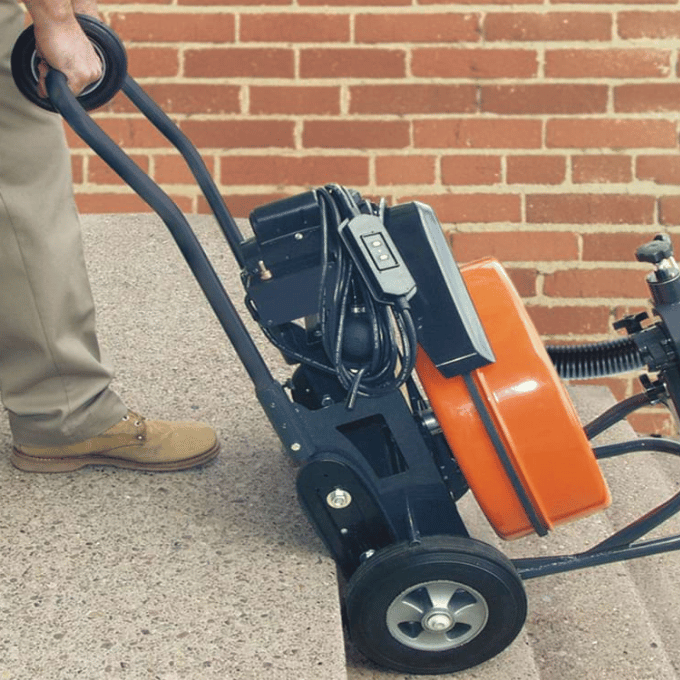

Speedrooter 92 Drain Cleaning Machine
Cable Models
Cable Models
Choose 5/8" or 3/4" inner-core cables according to pipe size and cleaning distance, with multiple length options available.
5/8" Inner-Core Cable
122010｜25EM4

5/8" × 25' inner-core cable

122020｜50EM4

5/8" × 50' inner-core cable

122030｜75EM4

5/8" × 75' inner-core cable

122040｜100EM4

5/8" × 100' inner-core cable

3/4" Inner-Core Cable
122050｜25EM5

3/4" × 25' inner-core cable

122060｜50EM5

3/4" × 50' inner-core cable

122070｜75EM5

3/4" × 75' inner-core cable

122080｜100EM5

3/4" × 100' inner-core cable

Cutters
Cutter Accessories
Suitable for 5/8" and 3/4" cables. Cutter heads can be selected according to blockage type, including leader tubes, spear head cutters, side cutters, U-cutters, heavy-duty sawtooth cutters, root augers, and adjustable side cutters.
LE3 Leader Tube
130960｜LE3

26" leader tube, LE2-33" also available

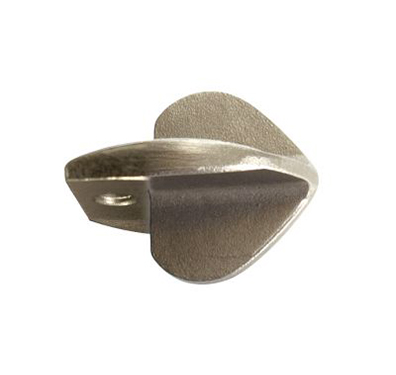

SHD Spear Head Cutter
130300｜SHD

Spear Head Cutter

3SCB Side Cutter
130180｜3SCB

3" Side Cutter

4SCB Side Cutter
130190｜4SCB

4" Side Cutter, 2" and 6" also available

2UC U-Cutter
130430｜2UC

2" U-Cutter, 3" and 4" also available

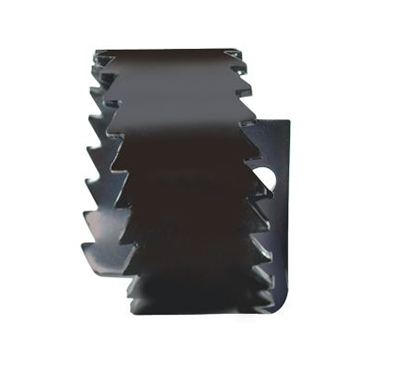

3HDB Heavy-Duty Sawtooth Cutter
130240｜3HDB

3" heavy-duty sawtooth cutter, 4", 6", and 8" also available

4RSB Spiral Sawtooth Cutter
130220｜4RSB

4" spiral sawtooth cutter

RTR2 Long Retrieving Auger
130370｜RTR2

Long retrieving auger

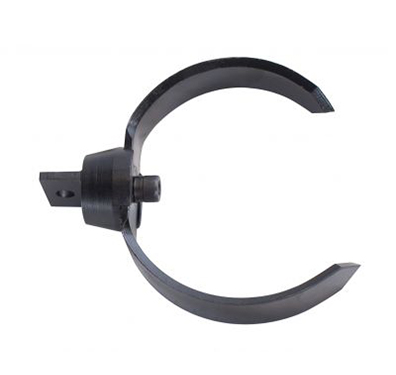

3HDSC Heavy-Duty Side Cutter
130390｜3HDSC

3" heavy-duty side cutter, 4" also available

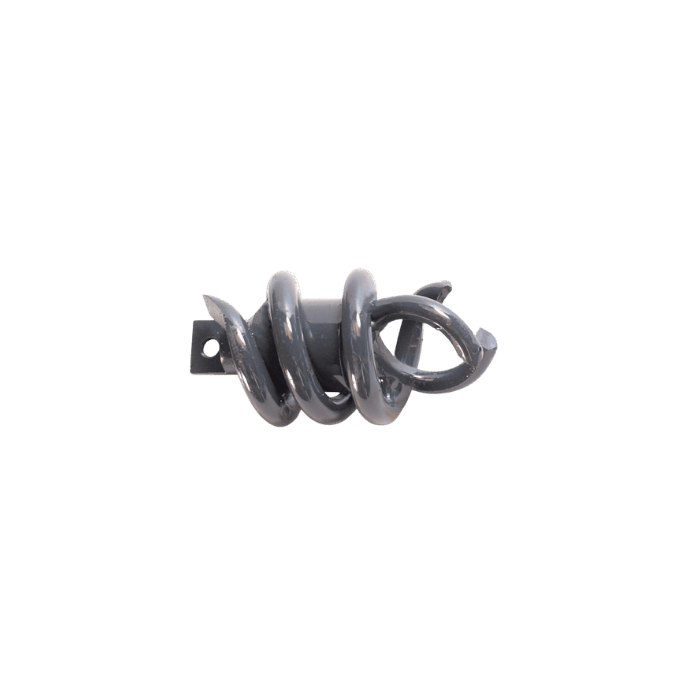

RP2 Root Auger
130380｜RP2

Root auger

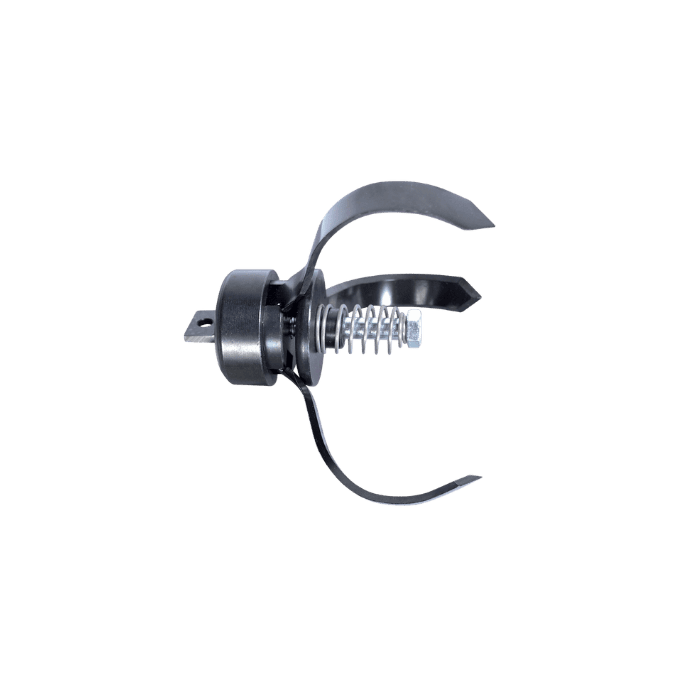

36HDEC Heavy-Duty Expanding Cutter
130270｜36HDEC

3"–6" heavy-duty expanding cutter


130310｜FB

Five-blade cutter

46SAC Adjustable Side Cutter
130290｜46SAC

4"–6" adjustable side cutter

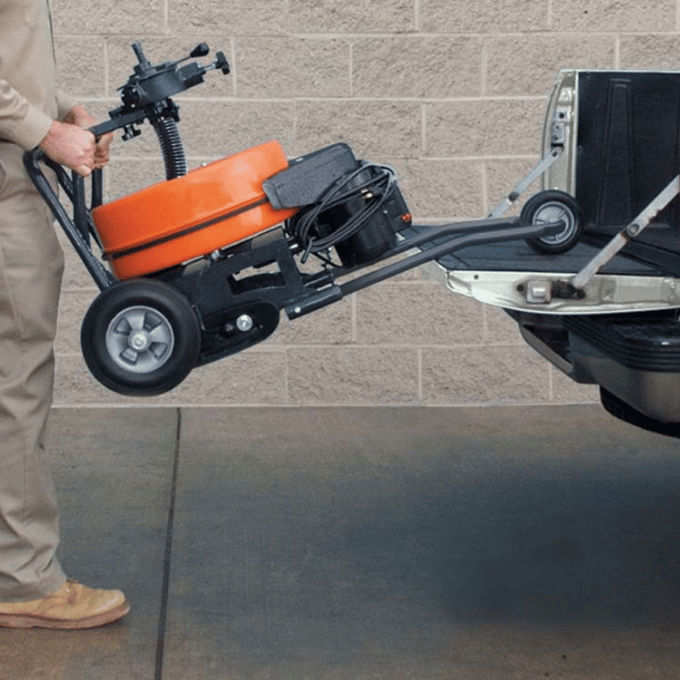

Speedrooter 92 Application
Features
Product Features
Designed for large drainage systems, it can handle multiple high-load blockage conditions and is suitable for professional drain cleaning projects and large facility maintenance.
Large Drainage System Cleaning

Suitable for 3"–10" drain lines and widely used in commercial, industrial, and large residential drainage systems.

Multi-Purpose Cleaning Capability

Suitable for handling root blockages, grease buildup, and other solid obstructions.

Long-Distance Cleaning

Can be used with cables up to 100' m for longer pipe runs.

Professional Facility Maintenance

Suitable for commercial buildings, industrial facilities, community buildings, and large residential pipe maintenance.

Video
Product Video
Watch the operation video to understand how Speedrooter 92 works in real drain cleaning applications.
